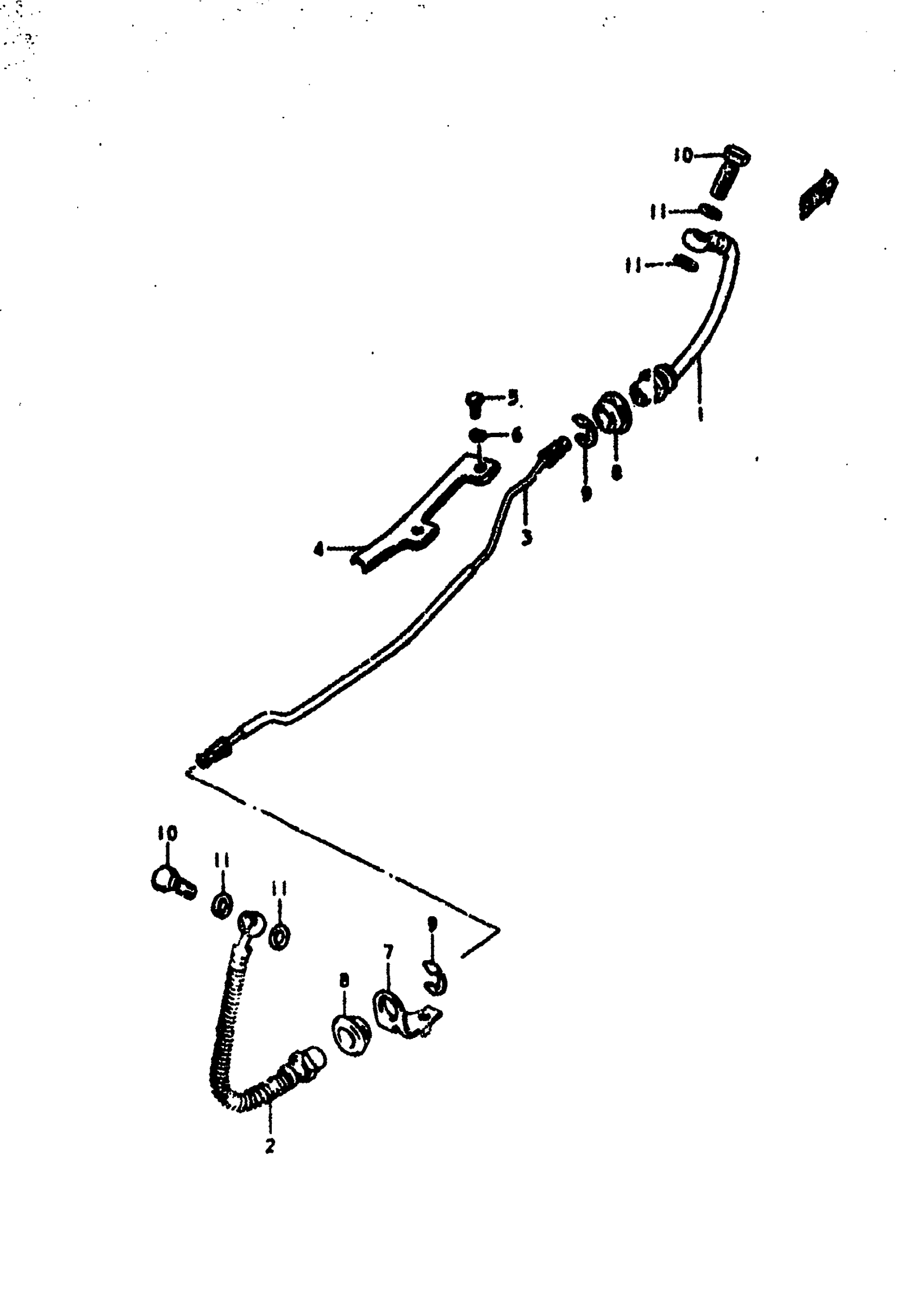

Suzuki GS550E (1979) REAR BREAK HOSE (GS550EC Diagram

#

Description

Price

1

HOSE, REAR BRAKE NO.1 | EC,EN This part replaces 69480-47000.

69480-47001

Unavailable

2

HOSE, REAR BRAKE NO.2 | EC,EN

69240-45000

Unavailable

3

PIPE, REAR BRAKE | EC,EN

69250-47000

Unavailable

4

COVER, REAR BRAKE PIPE | EC,EN

69245-45000

Unavailable

5

BOLT | EC,EN

09100-06011

$1.67

6

LOCK WASHER | EC,EN This part replaces 08321-21068.

08321-01067

$2.13

7

GUIDE, BRAKE HOSE | EC,EN

69243-47000

Unavailable

8

GROMMET,BRAKE H | EC,EN This part replaces 59244-36200.

59244-36201

$4.00

9

E-RING, BUSH | EC,EN This part replaces 08332-11098.

08332-1109A

$1.80

10

UNION | EC,EN This part replaces 09360-10003.

09360-10017

$3.42

11

WASHER (10X15X1.5) | EC,EN This part replaces 09161-10005.

09161-10009

$1.84
