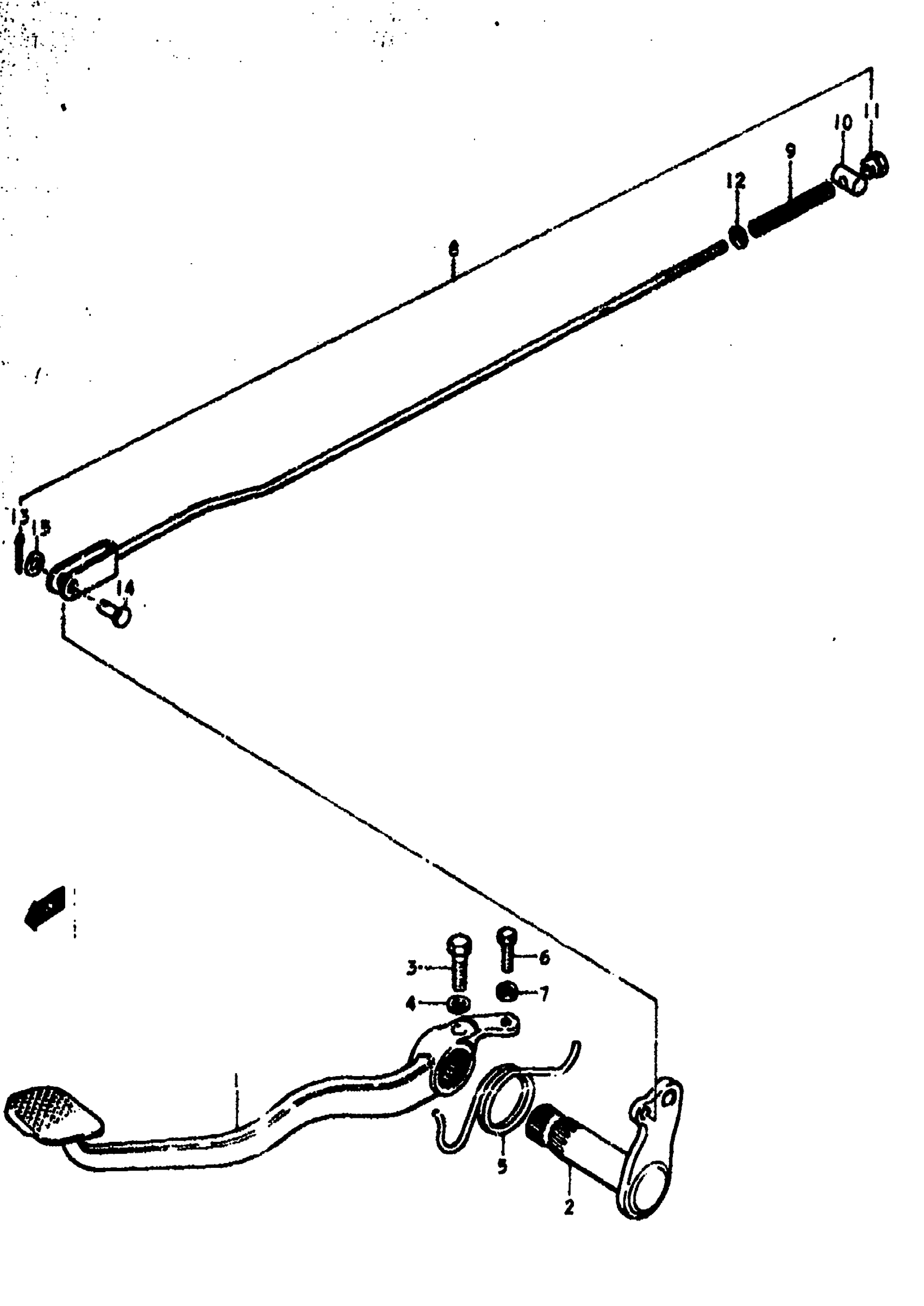

Suzuki GS550E (1979) REAR BRAKE (GS550B Diagram

#

Description
Price

1

PEDAL, BRAKE | B,C,N

43110-47000

Unavailable

2

ARM, BRAKE PEDAL ROD | B,C,N

43120-47000

Unavailable

3

BOLT | B,C,N This part replaces 01107-08258.

01500-08257

$2.50

4

.LOCK WASHER | B,C,N This part replaces 08321-21088.

08321-01087

$2.13

5

SPRING | B,C,N This part replaces 09448-37002.

09448-37002-XC0

Unavailable

6

BOLT | B,C,N; FROM 09100-06009 This part replaces 01107-06208.

01500-06207

$2.28

7

.NUT | B,C,N This part replaces 08310-11068.

08310-00067

$2.13

8

ROD ASSY, REAR BRAKE | B,C,N; Includes Item(s) 9 - 15

43300-47000

Unavailable

9

SPRING | B,C,N

09440-09004

$2.20

10

.PIN (13X18) | B,C,N This part replaces 09209-13003.

09209-13018

$3.42

11

.NUT | B,C,N This part replaces 09150-06001.

09150-06010

$3.10

12

WASHER | B,C,N This part replaces 08322-21068.

08322-01067

$2.13

13

COTTER PIN | B,C,N This part replaces 04111-20208.

04111-2020A

$1.49

14

PIN | B,C,N

09200-06013

$2.00

15

WASHER | B,C,N This part replaces 08322-21068.

08322-01067

$2.13
