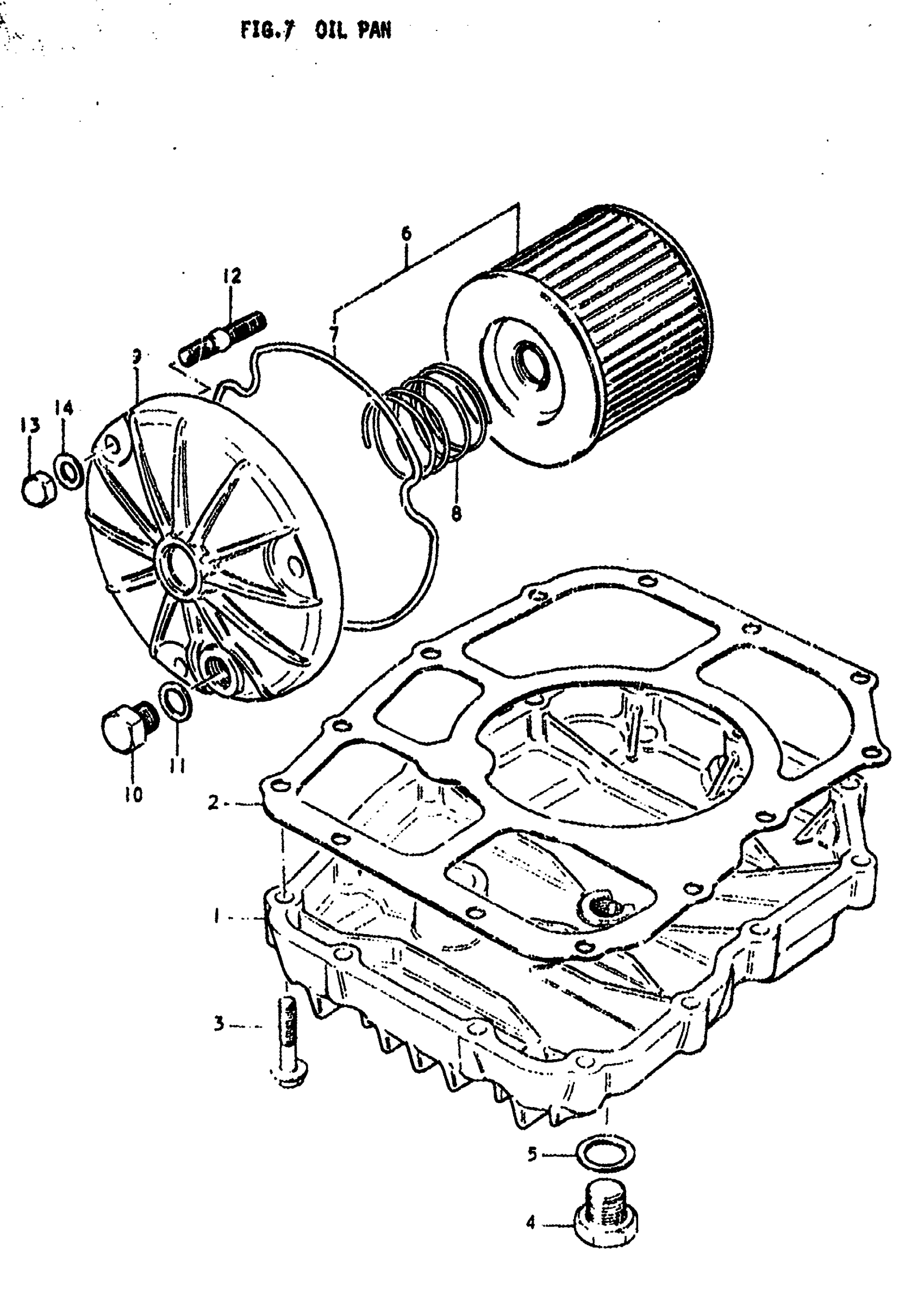

Suzuki GS550E (1979) OIL PAN Diagram

#

Description
Price

1

PAN, OIL | B,C&EC,N&EN This part replaces 11511-47000.

11511-47001

Unavailable

2

GASKET,OIL PAN( | B,C&EC,N&EN This part replaces 11489-47000.

11489-47000-H17

Unavailable

3

BOLT | B,C&EC,N&EN This part replaces 01517-06308.

01550-06307

$2.69

4

PLUG (MAGNETO) | B,C&EC,N&EN This part replaces 09247-14001.

09247-14002

$5.24

5

GASKET | B,C&EC,N&EN

09168-14004

$1.83

6

FILTER, ENGINE OIL | B,C&EC,N&EN

16510-45040

$5.96

7

O RING | B,C&EC,N&EN

16518-45000

$5.70

8

SPRING | B,C&EC,N&EN

09440-32004

$2.92

9

CAP, ENGINE OIL FILTER | B,C&EC This part replaces 16512-45000.

16512-45101

Unavailable

9

CAP, ENGINE OIL FILTER | B,C&EC,N&EN This part replaces 16512-45001.

16512-45101

Unavailable

10

PLUG, OIL DRAIN | B,C&EC; FOR 16512-45000

09247-10001

$2.20

11

GASKET | B,C&EC; FOR 16512-45000

09168-10002

$2.13

12

STUD BOLT | B,C&EC,N&EN This part replaces 01421-06208.

01421-0620A

$1.91

13

NUT, LICENSE HOLDER | B,C&EC,N&EN This part replaces 08313-11068.

08313-10067

$1.84

14

WASHER | B,C&EC,N&EN This part replaces 08322-21068.

08322-01067

$2.13
