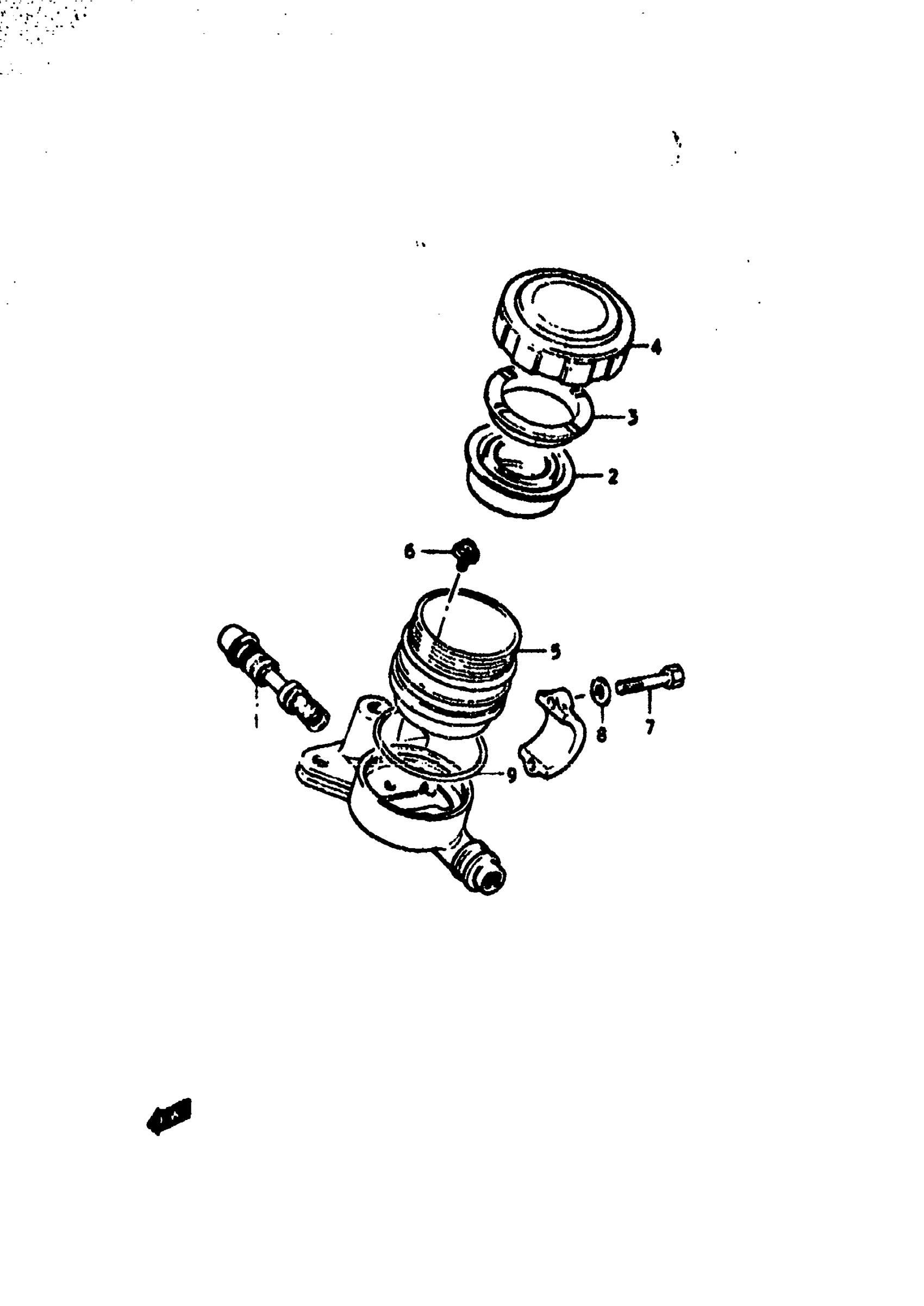

Suzuki GS550E (1979) MASTER CYLINDER Diagram

#

Description
Price

0

CYLINDER ASSY, MASTER | B,C&EC; ASCO This part replaces 59600-33630.

59600-33632

Unavailable

0

CYLINDER ASSY, MASTER | N&EN; Includes Item(s) 1 - 9

59600-33632

Unavailable

1

PISTON CUP SET | B,C&EC,N&EN This part replaces 59600-33810.

59600-33811

Unavailable

2

DIAPHRAGM | B,C&EC,N&EN

59667-33620

Unavailable

3

PLATE | B,C&EC,N&EN

59668-33620

Unavailable

4

CAP, RESERVOIR | B,C&EC,N&EN

59669-33630

Unavailable

5

RESERVOIR | B This part replaces 59687-33621.

59687-47021

Unavailable

5

RESERVOIR | C&EC This part replaces 59687-45020.

59687-47021

Unavailable

5

RESERVOIR | N&EN

59687-47021

Unavailable

6

SCREW | B,C&EC,N&EN

59688-33620

Unavailable

7

BOLT | B,C&EC,N&EN This part replaces 01107-06258.

01500-06257

$1.97

8

WASHER | B,C&EC,N&EN This part replaces 08322-21068.

08322-01067

$2.13

9

O RING | B,C&EC,N&EN

59686-33620

Unavailable
