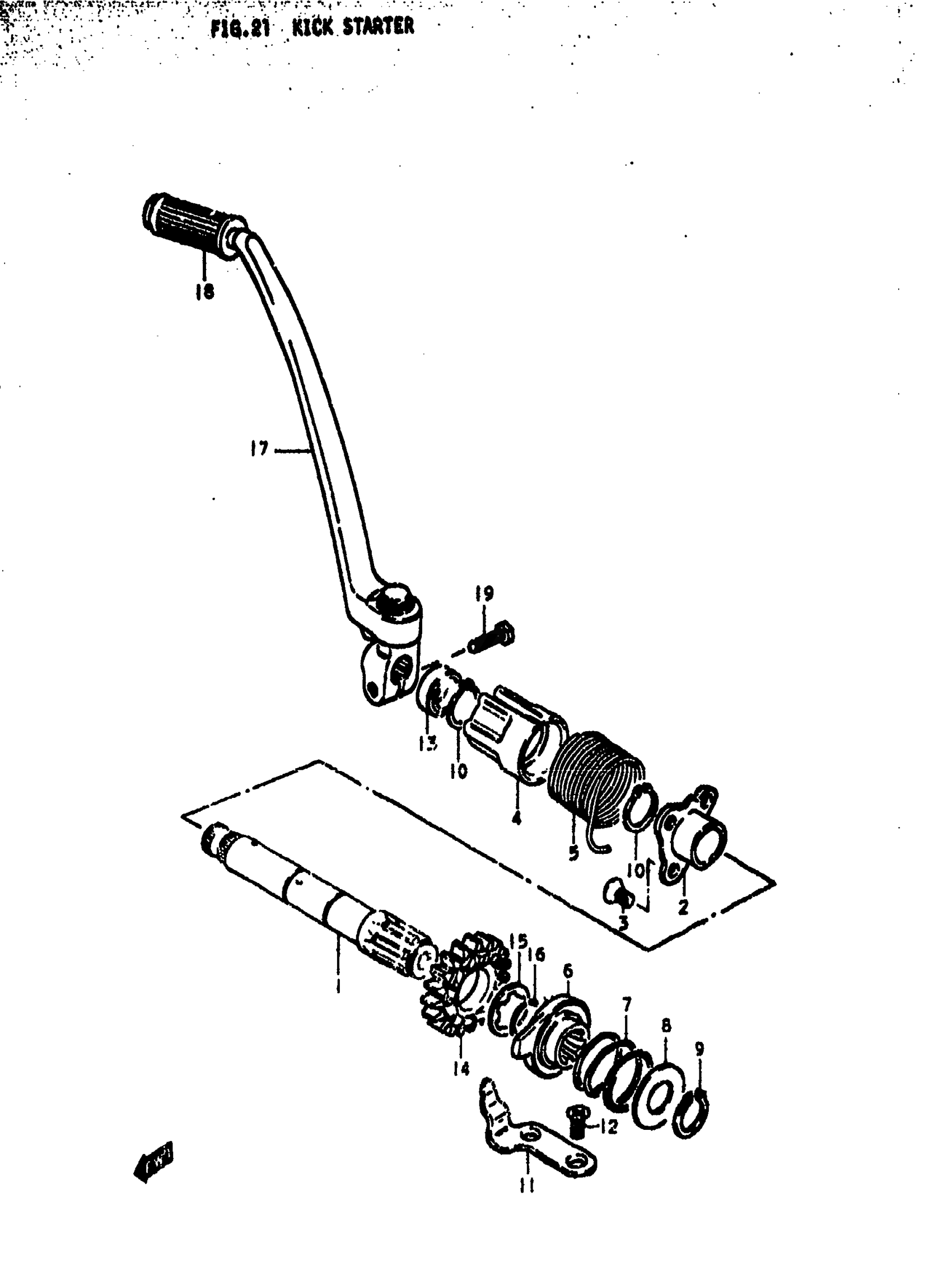

Suzuki GS550E (1979) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | B,C&EC,N&EN

26210-47000

Unavailable

2

HOLDER, SHAFT | B,C&EC,N&EN

26215-44000

Unavailable

3

SCREW | B,C&EC,N&EN This part replaces 02122-06128.

02122-06127

$1.84

4

GUIDE, SPRING | B,C&EC,N&EN

26221-44000

Unavailable

5

SPRING | B,C&EC,N&EN

09448-45010

Unavailable

6

STARTER, KICK | B,C&EC This part replaces 26231-30000.

26231-22A10

$63.88

6

STARTER, KICK | N&EN This part replaces 26231-30001.

26231-22A10

$63.88

7

SPRING | B,C&EC,N&EN

09440-32002

$2.27

8

PLATE | B,C&EC,N&EN

08212-17342

Unavailable

9

CIRCLIP, LH | B,C&EC,N&EN

09180-17001

Unavailable

10

CIRCLIP, KICK START DRIVE GEAR | B,C&EC,N&EN This part replaces 08331-11209.

08331-3120A

$2.03

11

GUIDE, STARTER | B,C&EC,N&EN

26232-44000

Unavailable

12

SCREW | B,C&EC,N&EN This part replaces 02122-06168.

02122-06167

$1.49

13

OIL SEAL | B,C&EC,N&EN; 20x27x5

09283-20031

$5.24

14

GEAR, KICK STARTER DRIVE | B,C&EC,N&EN; NT:19

26240-45000

Unavailable

15

WASHER | B,C&EC,N&EN

09167-22007

Unavailable

16

CIRCLIP | B,C&EC,N&EN

09380-22003

$1.92

17

LEVER ASSY, KICK STARTER | B,C&EC,N&EN; Includes Item(s) 18

26300-45000

Unavailable

18

RUBBER,KICK STA | B,C&EC,N&EN This part replaces 26352-01000.

26352-01020

$3.25

19

BOLT | B,C&EC,N&EN This part replaces 01107-08258.

01500-08257

$2.50
