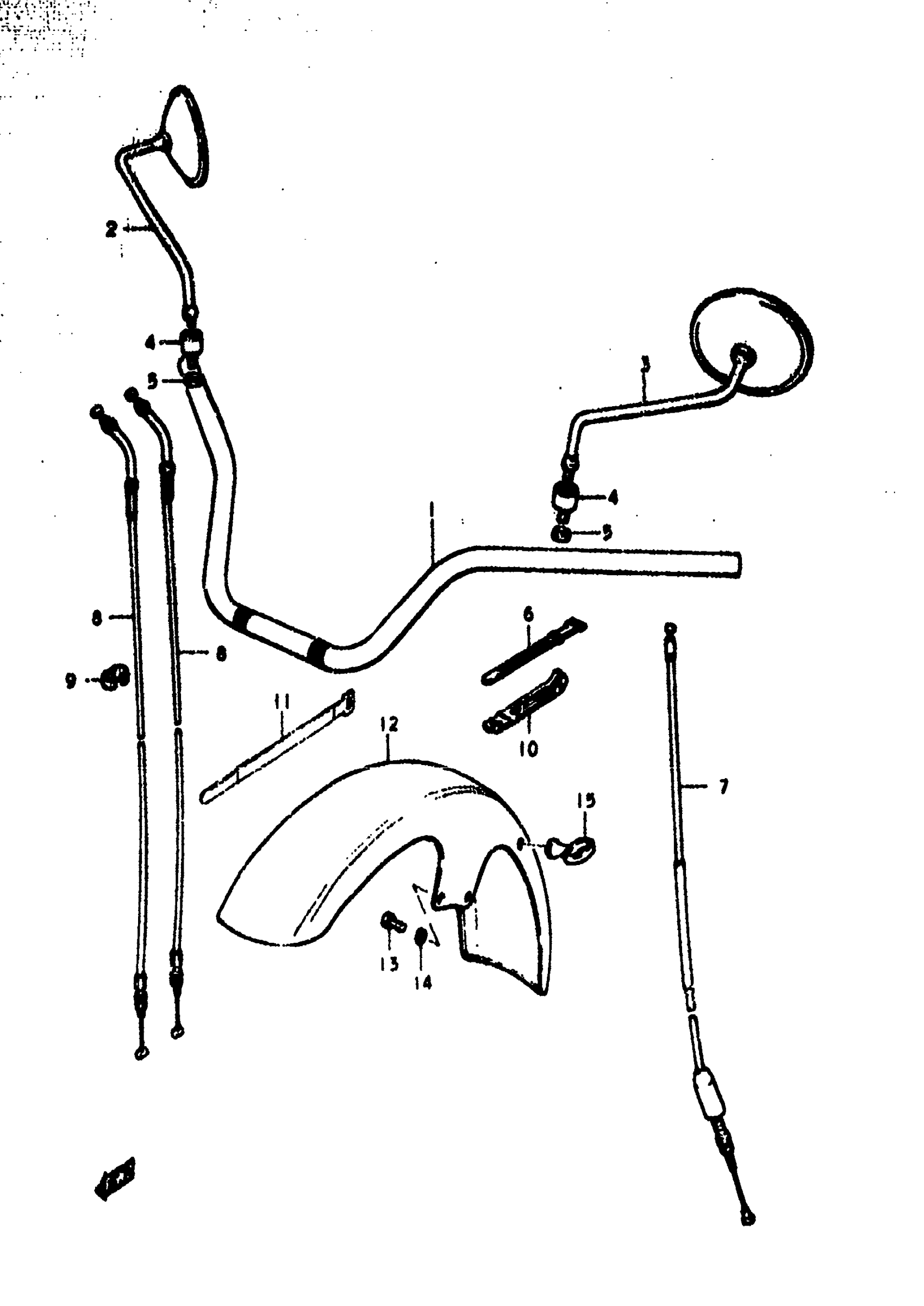

Suzuki GS550E (1979) HANDLEBAR - FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B This part replaces 56111-47001.

56111-47011

Unavailable

1

NO DESCRIPTION AVAILABLE | C&EC This part replaces 56111-47010.

56111-47011

Unavailable

1

HANDLEBAR | N&EN

56111-47040

Unavailable

2

MIRROR ASSY,RR | B,C&EC,N&EN This part replaces 56500-47010.

56500-45014

$64.82

3

MIRROR ASSY,RR | B,C&EC,N&EN This part replaces 56600-47010.

56600-45014

$64.82

4

CUSHION, REAR VIEW MIRROR | B,C&EC,N&EN This part replaces 56700-31001.

56700-45400

$21.90

5

NUT | B,C&EC,N&EN This part replaces 08310-22108.

08310-00107

$2.19

6

BAND | BC&EC,N&EN

09407-12402

$3.04

7

CABLE, CLUTCH | B,C&EC,N&EN

58200-47000

Unavailable

8

CABLE, THROTTLE | B

58300-47001

Unavailable

8

CABLE,THROTTLE | C&EC,N&EN This part replaces 58300-47010.

58300-47X00

Unavailable

9

CLIP | B,C&EC,N&EN

09408-00002

$2.30

10

CLAMP | B,C&EC,N&EN This part replaces 09404-06403.

09404-06039

$1.74

11

CLAMP | B,C&EC,N&EN This part replaces 09407-18301.

09407-18302

$2.28

12

FENDER, FRONT | B This part replaces 53110-45001.

53110-45602

Unavailable

12

FENDER, FRONT | C&EC,N&EN This part replaces 53110-45002.

53110-45602

Unavailable

13

PLUG, DRAIN | B,C&EC,N&EN This part replaces 01107-08168.

01500-0816B

$2.50

14

.LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

15

GUIDE, METER CABLE | B,N&EC This part replaces 58621-21202.

58621-21204

$6.68

15

GUIDE, METER CABLE | N&EN This part replaces 58621-21203.

58621-21204

$6.68
