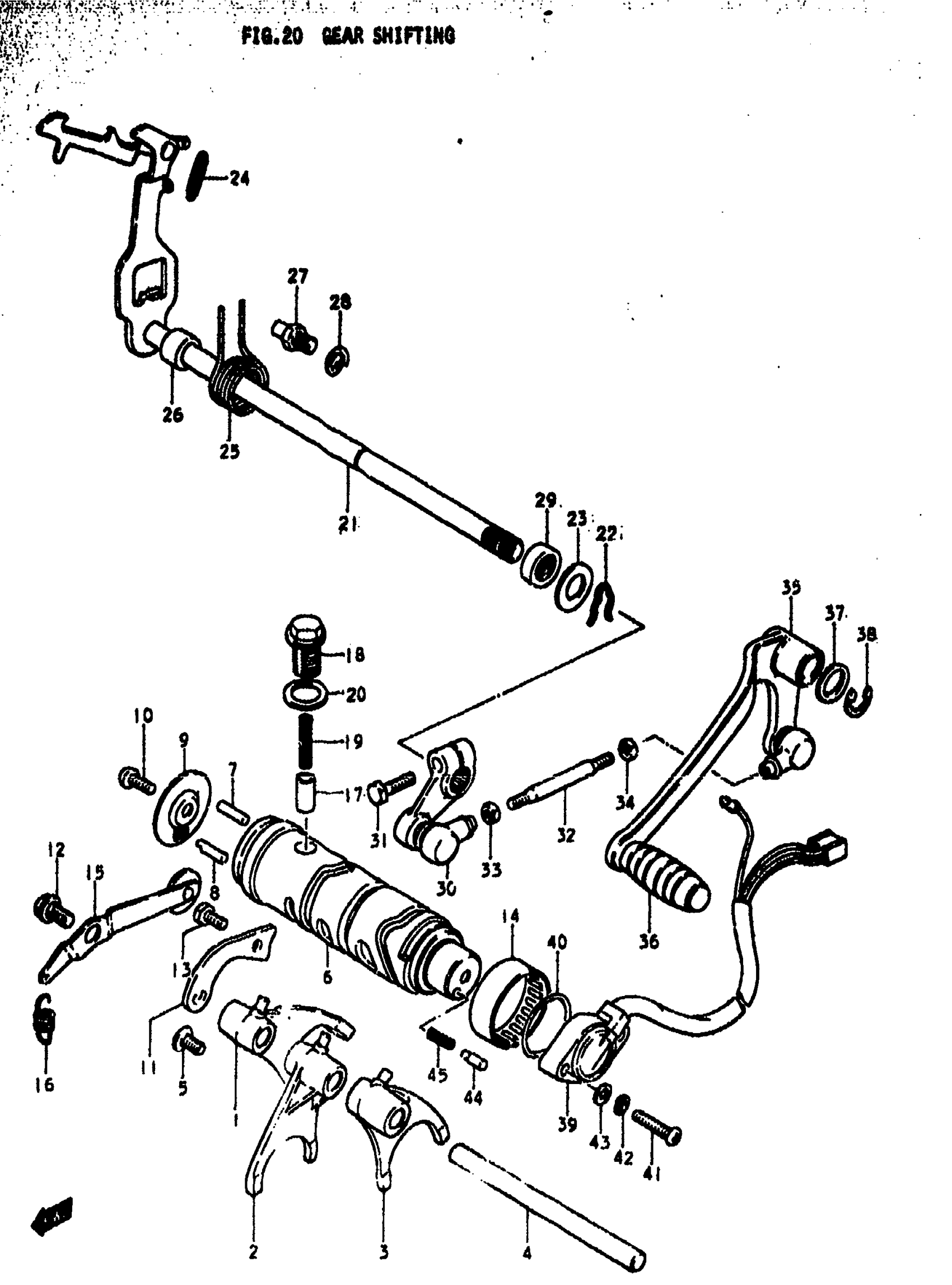

Suzuki GS550E (1979) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1 | B,C&EC,N&EN This part replaces 25211-44000.

25211-44001

Unavailable

2

FORK, GEAR SHIFTING NO.2 | B,C&EC,N&EN This part replaces 25221-44000.

25221-44001

Unavailable

3

FORK, GEAR SHIFTING NO.3 | B,C&EC,N&EN

25231-44000

Unavailable

4

SHAFT, GEAR SHIFT FORK NO.1 | B,C&EC,N&EN This part replaces 25411-31000.

25411-18900

$23.07

5

SCREW | B,C&EC,N&EN

02142-06108

$2.45

6

CAM, GEAR SHIFTING | B,C&EC,N&EN This part replaces 25311-47000.

25311-47001

Unavailable

7

PIN | B,C&EC,N&EN

09261-04001

$1.72

8

PIN | B,C&EC,N&EN

09209-04013

Unavailable

9

HOLDER, DRIVE PIN | B,C&EC,N&EN

25322-44000

Unavailable

10

SCREW | B,C&EC,N&EN This part replaces 02112-06168.

02112-06167

$1.49

11

GUIDE, CAM | B,C&EC,N&EN This part replaces 25341-44000.

25341-33300

Unavailable

12

BOLT | B,C&EC,N&EN This part replaces 09111-06019.

09111-06054

$3.70

13

BOLT | B,C&EC,N&EN This part replaces 01107-06128.

01500-06127

$1.97

14

BEARING | B,C&EC,N&EN

09263-40001

$29.53

15

STOPPER, CAM NO.1 | B,C&EC,N&EN

25350-44000

Unavailable

16

SPRING | B,C&EC,N&EN

09443-09007

$2.56

17

STOPPER, GEAR SHIFT CAM NO.2 | B,C&EC,N&EN

25351-30010

$11.95

18

HOLDER, SPRING | B,C&EC,N&EN

25354-30000

$9.17

19

SPRING | B,C&EC,N&EN

09440-06014

Unavailable

20

GASKET | B,C&EC,N&EN

09168-14004

$1.83

21

SHAFT, GEAR SHIFTING | B,C&EC,N&EN

25510-47000

Unavailable

22

CIRCLIP | B,C&EC,N&EN This part replaces 09384-12001.

08331-3112A

$1.78

23

WASHER (12.5X26X1.6) | B,C&EC,N&EN This part replaces 09160-12020.

09160-12089

$1.97

24

SPRING | B,C&EC,N&EN

09443-07013

$2.07

25

SPRING | B,C&EC,N&EN This part replaces 09444-26012.

09444-26013

$3.10

26

SPACER | B,C&EC,N&EN

09180-12068

$3.16

27

STOPPER, ARM | B,C&EC,N&EN This part replaces 25671-01000.

25671-01011

$4.48

28

.LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

29

OIL SEAL (12X22X9) | B,C&EC,N&EN; 12x22x9 This part replaces 09285-12002.

09285-12006

$6.32

30

ARM,GEAR SHIFT | B,C&EC,N&EN This part replaces 25520-47000.

25520-47021

$42.92

31

BOLT | B,C&EC,N&EN This part replaces 01107-06208.

01500-06207

$2.28

32

ROD, GEAR SHIFT LINK | B,C&EC,N&EN This part replaces 25525-47000.

25525-47020

$9.15

33

.NUT | B,C&EC,N&EN This part replaces 08310-11068.

08310-00067

$2.13

34

NUT, LH | B,C&EC,N&EN

09140-06011

$1.49

35

LEVER ASSY, GEAR SHIFTING | B,C&EC,N&EN; Includes Item(s) 36

25600-47000

Unavailable

36

.RUBBER,GEAR SHIFT PEDAL | B,C&EC,N&EN This part replaces 25652-16500.

25652-16510

$3.74

37

WASHER | B,C&EC,N&EN

09160-12011

$1.54

38

CIRCLIP | B,C&EC,N&EN This part replaces 08331-31128.

08331-3112A

$1.78

39

BODY, SWITCH | B,C&EC,N&EN This part replaces 37720-45010.

37720-45100

$101.35

40

O RING (D:2.4,ID:26.2) | B,C&EC,N&EN This part replaces 09280-26003.

09280-26005

$2.30

41

SCREW | B,C&EC,N&EN This part replaces 02112-05208.

02112-05207

$1.97

42

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21058.

08321-0105A

$1.84

43

WASHER | B,C&EC,N&EN This part replaces 08322-21058.

08322-01057

$2.13

44

CONTACT | B,C&EC,N&EN

09209-05011

$2.20

45

SPRING | B,C&EC,N&EN

09440-04010

$1.54
