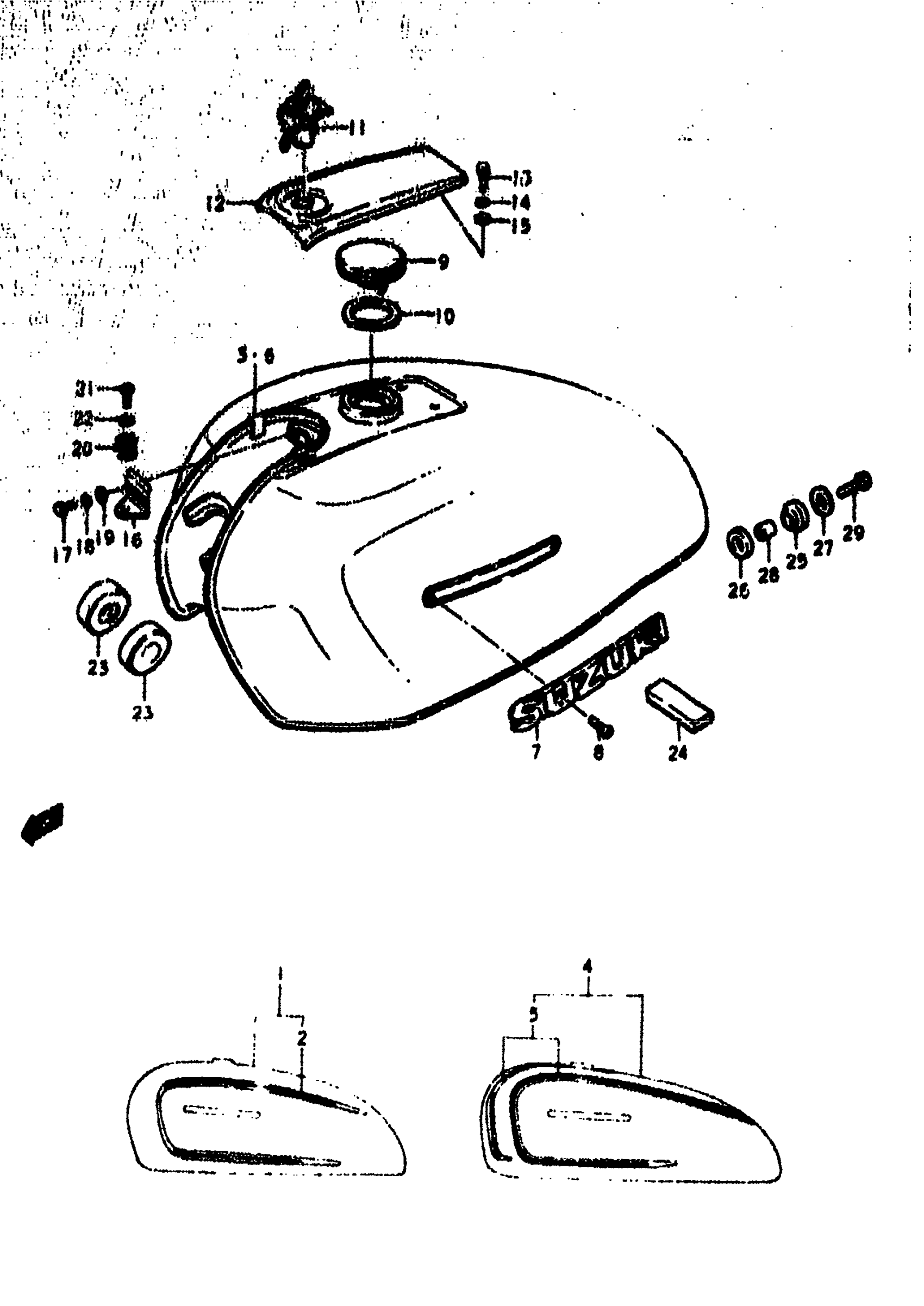

Suzuki GS550E (1979) FUEL TANK (GS550N Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N; TO: 44100-47049-08F This part replaces 44100-47040-08F.

44110-47030-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | N; TO: 44100-47049-05L; Includes Item(s) 2 - 3 This part replaces 44100-47040-05L.

44110-47030-13L

Unavailable

2

TAPE SET | N

68100-47861-764

Unavailable

3

CUSHION | N This part replaces 44276-37001.

44276-37002

$3.12

4

NO DESCRIPTION AVAILABLE | EN; Includes Item(s) 5 - 6 This part replaces 44100-47030-08E.

44110-47030-13L

Unavailable

5

TAPE SET | EN; TO:44100-47039-08E

68100-47881-764

Unavailable

6

CUSHION | EN This part replaces 44276-37001.

44276-37002

$3.12

7

EMBLEM | N,EN

68111-45010

$24.36

8

SCREW | N,EN This part replaces 02132-03065.

02122-0306B

$2.26

9

CAP FUEL TANK | N,EN This part replaces 44210-23300.

44200-23810

$49.39

10

GASKET | N,EN

85413-70000

$4.40

11

LOCK ASSY, FRONT COVER | N,EN

44280-37010

$58.13

12

COVER, FUEL TANK | N,EN

44270-47001

Unavailable

13

BOLT | N,EN This part replaces 01104-05108.

01500-0510B

$1.80

14

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

15

WASHER | N,EN This part replaces 08322-21058.

08322-01057

$2.13

16

TANK FR COVER H | N,EN This part replaces 44290-37001.

44290-3700V

Unavailable

17

BOLT | N,EN This part replaces 01104-05108.

01500-0510B

$1.80

18

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

19

WASHER | N,EN This part replaces 08322-21058.

08322-01057

$2.13

20

SPRING | N,EN

09446-17001

$2.84

21

SCREW | N,EN This part replaces 02112-05086.

02112-0508A

$1.49

22

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

23

CUSHION | N,EN This part replaces 09329-10007.

09329-10026

$2.23

24

CUSHION, CENTER | N,EN

44541-47000

$8.83

25

CUSHION, REAR NO.1 | N,EN

09320-12013

$2.60

26

CUSHION, REAR NO.2 | N,EN

09320-12017

$2.18

27

WASHER (8.5X22X2) | N,EN This part replaces 09160-08007.

09160-08127

$2.12

28

SPACER | N,EN

09180-08067

$2.41

29

BOLT | N,EN This part replaces 01107-08308.

01500-08307

$3.04
