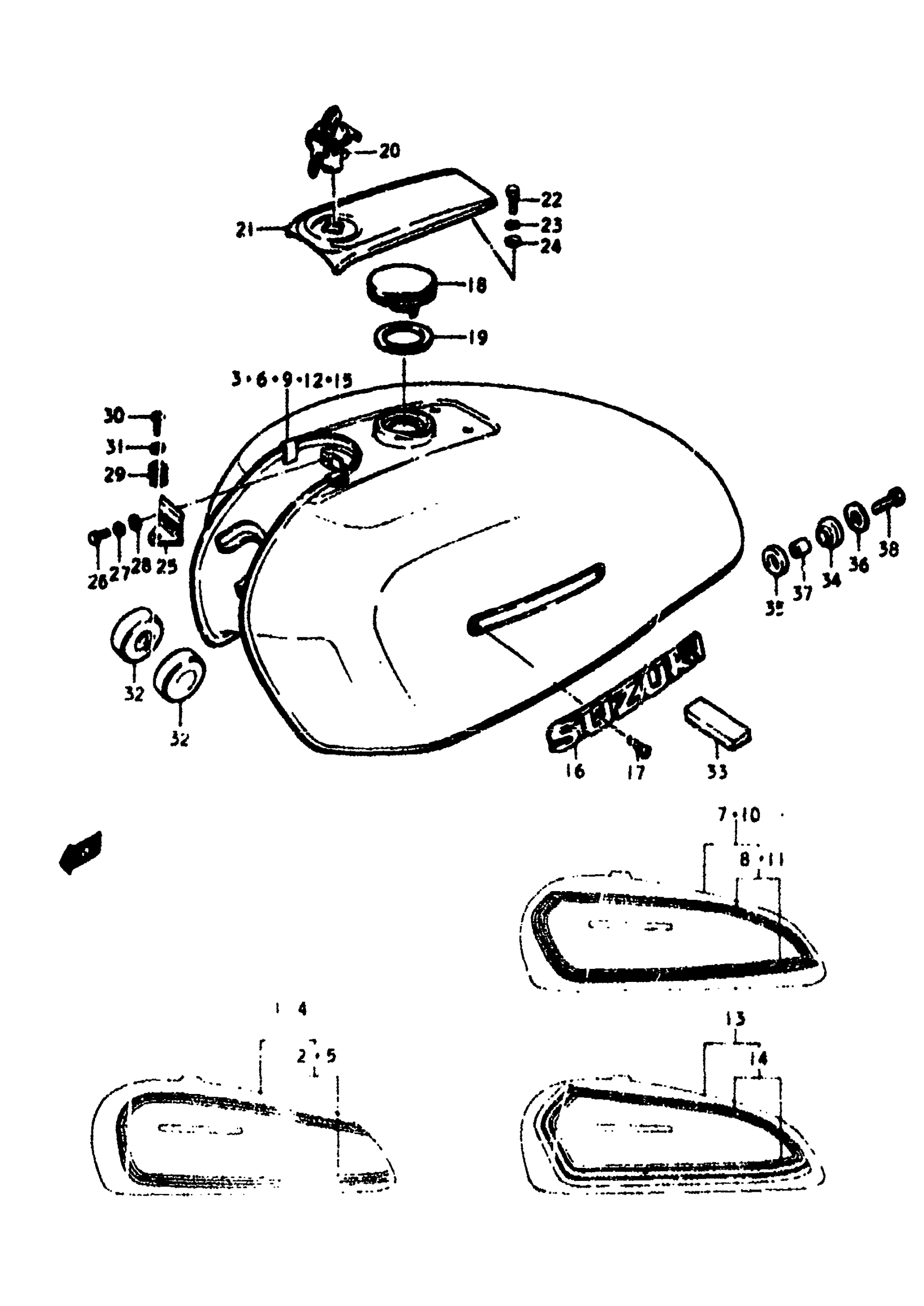

Suzuki GS550E (1979) FUEL TANK (GS550B Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B; TO: 44100-47009-019; SEE NOTE BELOW; Includes Item(s) 2 - 3 This part replaces 44110-47000-019.

44110-47030-13L

Unavailable

2

TAPE SET | B

68100-47810-61U

Unavailable

3

CUSHION | B This part replaces 44276-37001.

44276-37002

$3.53

4

NO DESCRIPTION AVAILABLE | B; TO: 44100-47009-00X SEE NOTE BELOW; Includes Item(s) 5 - 6 This part replaces 44110-47000-00X.

44110-47030-13L

Unavailable

5

TAPE SET | B

68100-47810-61P

Unavailable

6

CUSHION | B This part replaces 44276-37001.

44276-37002

$3.53

7

NO DESCRIPTION AVAILABLE | C; TO: 44100-47019-05T SEE NOTE BELOW; Includes Item(s) 8 - 9 This part replaces 44110-47010-05T.

44110-47030-13L

Unavailable

8

TAPE SET | C This part replaces 68100-47820-63P.

68100-47820-63D

Unavailable

9

CUSHION | C This part replaces 44276-37001.

44276-37002

$3.53

10

NO DESCRIPTION AVAILABLE | C; TO: 44100-47019-06U; SEE NOTE BELOW; Includes Item(s) 11 - 12 This part replaces 44110-47010-05U.

44110-47030-13L

Unavailable

11

TAPE SET | C

68100-47820-63D

Unavailable

12

CUSHION | C This part replaces 44276-37001.

44276-37002

$3.53

13

NO DESCRIPTION AVAILABLE | EC; TO: 44100-47029-019; Includes Item(s) 14 - 15 This part replaces 44110-47020-019.

44110-47030-13L

Unavailable

14

TAPE SET | EC

68100-47830-63D

Unavailable

15

CUSHION | EC This part replaces 44276-37001.

44276-37002

$3.53

16

EMBLEM | B

68111-45000

$28.25

16

EMBLEM | C,EC

68111-45010

$22.93

17

SCREW | B,C,EC This part replaces 09127-03002.

02122-0306B

$2.28

18

CAP FUEL TANK | B,C,EC This part replaces 44210-23300.

44200-23810

$63.75

19

GASKET | B,C,EC

85413-70000

$4.03

20

LOCK ASSY, FRONT COVER | B,C,EC

44280-37010

$65.62

21

COVER, FUEL TANK | B,C,EC This part replaces 44270-47000.

44270-47001

Unavailable

22

BOLT | B,C,EC This part replaces 01104-05108.

01500-0510B

$1.81

23

LOCK WASHER | B,C,EC This part replaces 08321-21058.

08321-0105A

$1.83

24

WASHER | B,C,EC This part replaces 08322-21058.

08322-01057

$1.86

25

LDER, FUEL TANK COVER 1 | C,EC

44290-37001 HO

Unavailable

26

BOLT | B,C,EC This part replaces 01104-05108.

01500-0510B

$1.81

27

LOCK WASHER | B,C,EC This part replaces 08321-21058.

08321-0105A

$1.83

28

WASHER | B,C,EC This part replaces 08322-21058.

08322-01057

$1.86

29

SPRING | B,C,EC

09446-17001

$3.09

30

SCREW | B,C,EC This part replaces 02112-05088.

02112-05087

$1.45

31

LOCK WASHER | B,C,EC This part replaces 08321-21058.

08321-0105A

$1.83

32

CUSHION | B,C,EC This part replaces 09329-10007.

09329-10026

$1.91

33

CUSHION, CENTER | B,C,EC

44541-47000

$9.97

34

CUSHION, REAR NO.1 | B,C,EC

09320-12013

$2.68

35

CUSHION, REAR NO.2 | B,C,EC

09320-12017

$2.02

36

WASHER, EXHAUST SUPPORT | B,C,EC This part replaces 09160-08002.

09160-08135

$2.10

37

SPACER | B,C,EC

09180-08067

$2.40

38

BOLT | B,C,EC This part replaces 01107-08308.

01500-08307

$2.80
