1979 Suzuki GS550E Frame Cover (GS550B Diagram

← All diagrams

Find the part on the Frame Cover (GS550B diagram for your 1979 Suzuki GS550E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

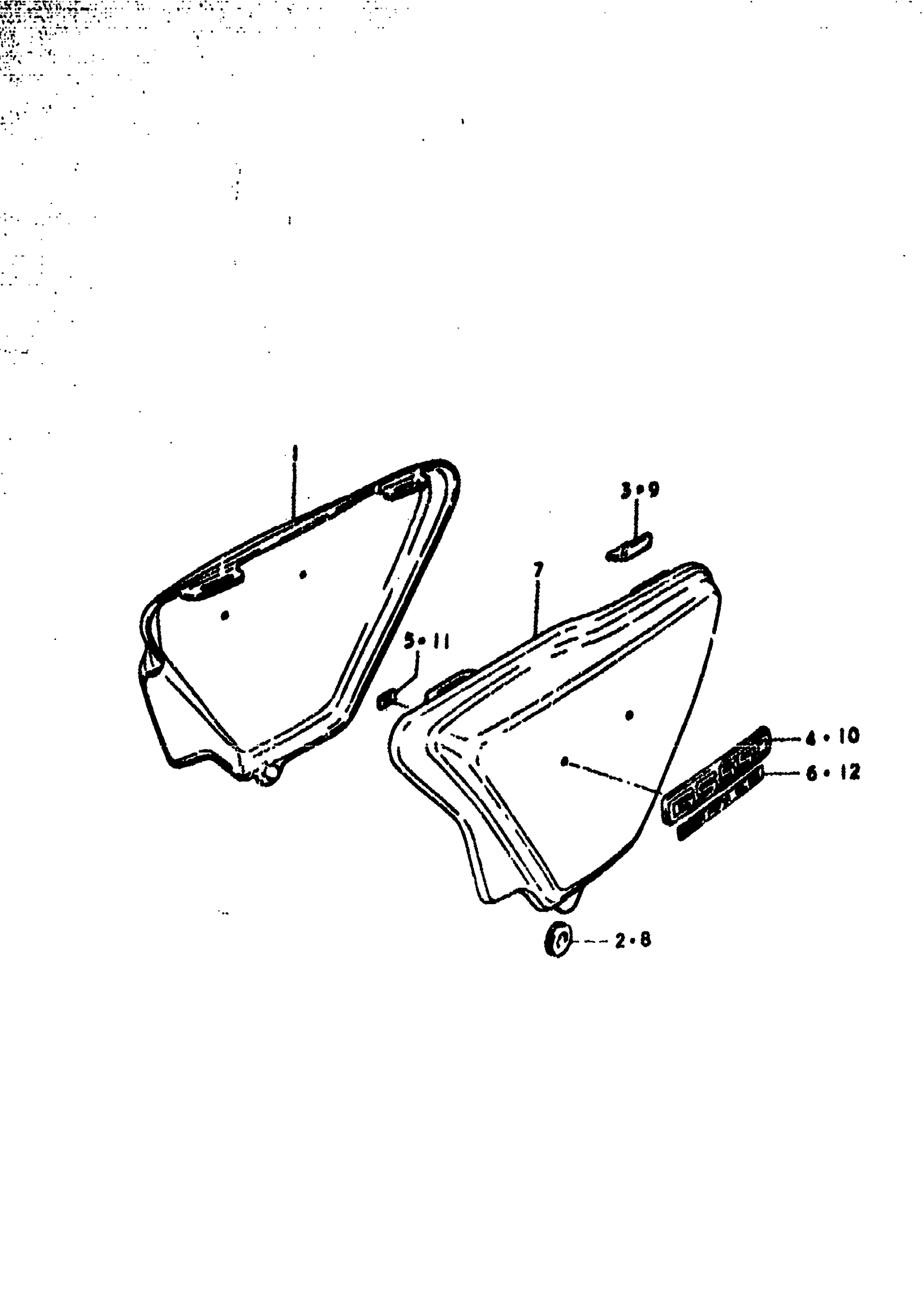

1979 Suzuki GS550E Frame Cover (GS550B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME, R | C This part replaces 47111-47000-05T.

47111-47000

1
Out of stock

1

COVER, FRAME, R | C This part replaces 47111-47000-05U.

47111-47000

1
Out of stock

1

COVER, FRAME, R | B,EC This part replaces 47111-47000-291.

47111-47000

1
Out of stock

2

CUSHION (8X22X7) | B,C,EC This part replaces 09320-08013.

09320-08509

1
Out of stock

3

CUSHION | B,C,EC

47117-45000

2
Out of stock

4

EMBLEM | B

68141-47000

1
Out of stock

4

EMBLEM | C,EC

68141-47010

1
Out of stock

5

NUT | B,C,EC

09148-03002

2
Out of stock

6

LABEL, COMPANY NAME | B,C,EC

68363-26200

1
Out of stock

7

COVER,FRAME,LH | C This part replaces 47211-47000-05T.

47211-47001

1
Out of stock

7

COVER,FRAME,LH | C This part replaces 47211-47000-05U.

47211-47001

1
Out of stock

7

COVER,FRAME,LH | B,EC This part replaces 47211-47000-291.

47211-47001

1
Out of stock

8

CUSHION (8X22X7) | B,C,EC This part replaces 09320-08013.

09320-08509

1
Out of stock

9

CUSHION | B,C,EC

47117-45000

2
Out of stock

10

EMBLEM | B

68141-47000

1
Out of stock

10

EMBLEM | C,EC

68141-47010

1
Out of stock

11

NUT | B,C,EC

09148-03002

2
Out of stock

12

LABEL, COMPANY NAME | B,C,EC

68363-26200

1
Out of stock
