1979 Suzuki GS550E Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1979 Suzuki GS550E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

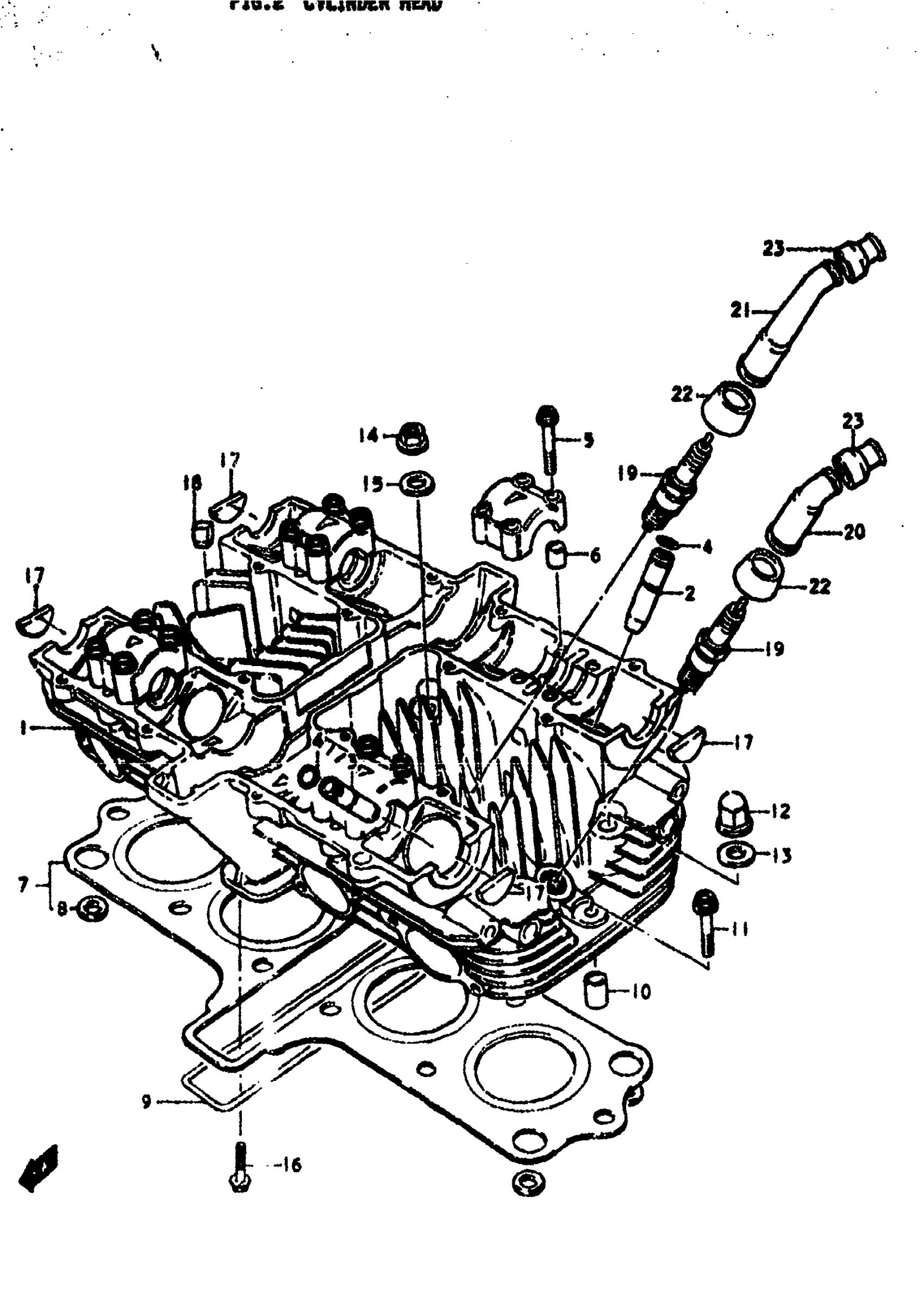

1979 Suzuki GS550E Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | B,C&EC This part replaces 11100-47810.

11100-47850

1
Out of stock

1

CYLINDER HEAD SET | N&EN; USED WITH REF. NO.16; Includes Item(s) 2 - 6

11100-47850

1
Out of stock

2

GUIDE, INTAKE VALVE | B,C&EC,N&EN This part replaces 11115-47730.

11115-47740

4
Out of stock

3

GUIDE, EXHAUST VALVE | B,C&EC,N&EN This part replaces 11116-47730.

11116-47740

4
Out of stock

4

RING, VALVE GUIDE | B,C&EC,N&EN

09381-10003

8
Out of stock

5

BOLT (6X39) | B,C&EC,N&EN

09103-06026

16
Out of stock

6

PIN | B,C&EC,N&EN

09206-08001

8
Out of stock

7

GASKET,CYL HEAD | B; TO 11100-47830 This part replaces 11141-47990.

11141-47086-H17

1
Out of stock

7

GASKET,CYL HEAD | C&EC This part replaces 11100-47840.

11141-47086-H17

1
Out of stock

7

GASKET,CYL HEAD | N&EN; USED WITH 11100-47850; Includes Item(s) 8 This part replaces 11100-47860.

11141-47086-H17

1
Out of stock

8

SEAL RING | B,C&EC,N&EN

11142-47010

4
Out of stock

9

O RING | B,C&EC,N&EN

09280-99003

1
Out of stock

10

PIN | B,C&EC,N&EN

04211-11189

2
Out of stock

11

BOLT (CHROME) | B,C&EC,N&EN This part replaces 01517-06458.

01550-06457

2
Out of stock

12

NUT | B,C&EC,N&EN This part replaces 09159-08024.

09159-08029

4
Out of stock

12

NUT | N&EN

09159-08029

4
Out of stock

13

GASKET | B,C&EC,N&EN This part replaces 09168-08009.

09168-08013

4
Out of stock

14

NUT (CHROME) | B,C&EC This part replaces 09159-08019.

08316-10087

8
Out of stock

14

8

$1.73

In stock

15

WASHER | B,C&EC,N&EN

09160-08039

8
Out of stock

16

BOLT | N&EN; FOR 11100-47850 This part replaces 01517-06308.

01550-06307

1
Out of stock

17

PLUG, CYLINDER HEAD SIDE | B,C&EC,N&EN

09241-23002

4
Out of stock

18

PAD, RUBBER | B,C&EC,N&EN This part replaces 11152-45000.

11152-38A00

8
Out of stock

19

SPARK PLUG | B,C&EC,N&EN; NGK, 3-BES

09482-00091

4
Out of stock

19

SPARK PLUG W24E | B,C&EC,N&EN; ND, S24ES This part replaces 09482-00092.

09482-00247-111

4
Out of stock

20

CAP, SPARK PLUG (S) | B,C&EC,N&EN

33510-43010

2
Out of stock

21

CAP, SPARK PLUG (L) | B,C&EC,N&EN

33510-45010

2
Out of stock

22

SEAL, PLUG | B,C&EC,N&EN

33541-69010

4
Out of stock

23

SEAL,HIGH TENSION CORD (SIDE) | B,C&EC,N&EN This part replaces 33542-98000.

33542-38B00

4
Out of stock
