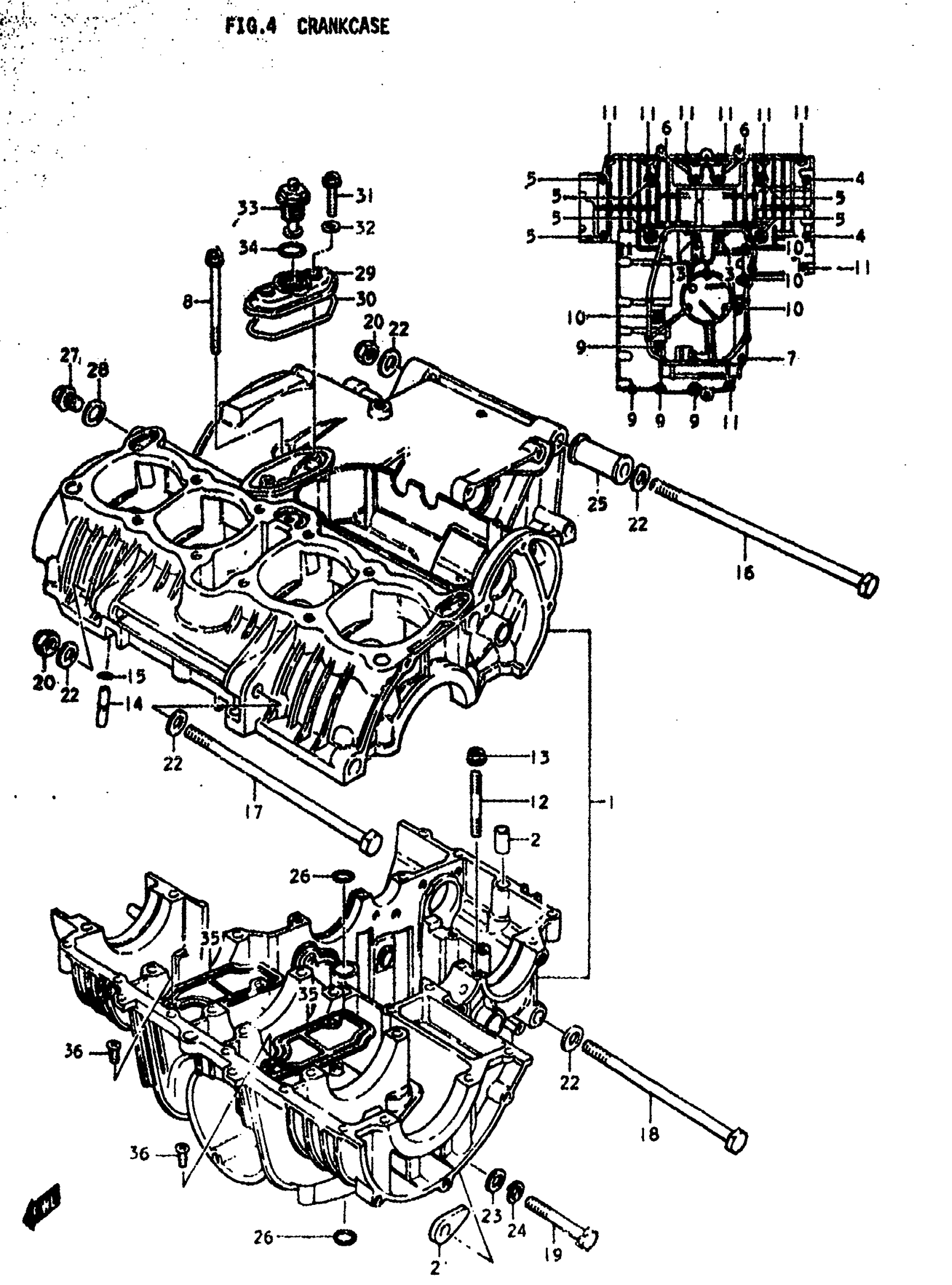

Suzuki GS550E (1979) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | B This part replaces 11300-47810.

11300-34880

Unavailable

1

CRANKCASE SET | C&EC This part replaces 11300-47811.

11300-34880

Unavailable

1

CRANKCASE SET | N&EN; Includes Item(s) 2 - 15 This part replaces 11300-47812.

11300-34880

Unavailable

2

PIN | B,C&EC,N&EN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8X120) | B,C&EC,N&EN; 8x120 This part replaces 09103-08026.

09103-08109

$2.92

4

BOLT | B; 8x90 This part replaces 09103-08018.

01550-08907

$5.63

4

BOLT | C&EC,N&EN This part replaces 01517-08908.

01550-08907

$5.63

5

BOLT | B,C&EC,N&EN This part replaces 01517-08708.

01550-08707

$3.58

6

BOLT | B,C&EC,N&EN This part replaces 01517-08558.

01550-08557

$3.25

7

BOLT, MUF SPRT,RR | B,C&EC,N&EN This part replaces 01517-08458.

01550-08457

$2.63

8

BOLT | B; 6x90 This part replaces 09103-06019.

01550-06907

$5.00

8

BOLT | C&EC,N&EN This part replaces 01517-06908.

01550-06907

$5.00

9

BOLT | B; 6x60 This part replaces 09103-06021.

01550-06607

$4.53

9

BOLT | C&EC,N&EN This part replaces 01517-06608.

01550-06607

$4.53

10

BOLT (6X50) | B,C&EC,N&EN This part replaces 01517-06508.

01550-06507

$3.70

11

BOLT | B,C&EC,N&EN This part replaces 01517-06408.

01550-06407

$2.73

12

BOLT,STUD | B,C&EC,N&EN This part replaces 01421-06408.

01421-0640A

Unavailable

13

NUT | B,C&EC,N&EN This part replaces 09159-06017.

08319-31067

$2.01

14

NOZZLE, OIL GALLERY | B,C&EC,N&EN

09364-05005

$4.07

15

O RING, NOZZLE | B,C&EC,N&EN This part replaces 09280-03001.

09280-03003

$1.73

16

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN; 10x270 This part replaces 09100-10074.

09100-10074-XC0

Unavailable

17

BOLT (10X200) | B,C&EC,N&EN; 10x200 This part replaces 09100-10111.

09103-10138

Unavailable

18

BOLT, ENGINE MOUNTING | B,C&EC,N&EN; 10x165

09100-10078

$13.80

19

BOLT | B,C&EC,N&EN This part replaces 01517-10558.

01550-10557

$3.58

20

NUT | B,C&EC,N&EN

09159-10011

$2.95

21

NUT | B,C&EC,N&EN

09159-10020

$5.63

22

WASHER | B,C&EC This part replaces 08322-11108.

08322-01107

$1.88

22

WASHER, KNUCKLE END | N&EN This part replaces 08322-11106.

08322-0110A

$1.83

23

WASHER | N&EN

09160-10005

$1.86

24

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.83

25

SPACER (L:50) | B,C&EC; L:50 This part replaces 09180-10046.

11610-44010

Unavailable

25

SPACER (L:50) | N&EN This part replaces 11610-45000.

11610-44010

Unavailable

26

O RING, OIL GALLERY | B,C&EC,N&EN

09280-13001

$2.51

27

PLUG | B,C&EC,N&EN This part replaces 09247-14012.

09247-14026

$3.38

28

GASKET | B,C&EC,N&EN

09168-14004

$1.69

29

HOUSING, OIL PRESSURE SWITCH | B,C&EC,N&EN

16445-45000

Unavailable

30

O RING | B,C&EC,N&EN

16448-45000

$8.37

31

BOLT | B,C&EC,N&EN This part replaces 01517-06258.

01550-06257

$2.31

32

GASKET (5.8X13X1.2) | B,C&EC,N&EN This part replaces 09168-06009.

09168-06023

$2.01

33

SWITCH ASSY,OIL | B,C&EC,N&EN This part replaces 37820-45050.

37820-45061

$35.73

34

O RING | B,C&EC,N&EN

09280-19001

$1.38

35

PLATE, OIL SEPARATOR | B,C&EC,N&EN

11521-47000

Unavailable

36

SCREW | B,C&EC,N&EN This part replaces 02112-06088.

02112-06087

$1.45
