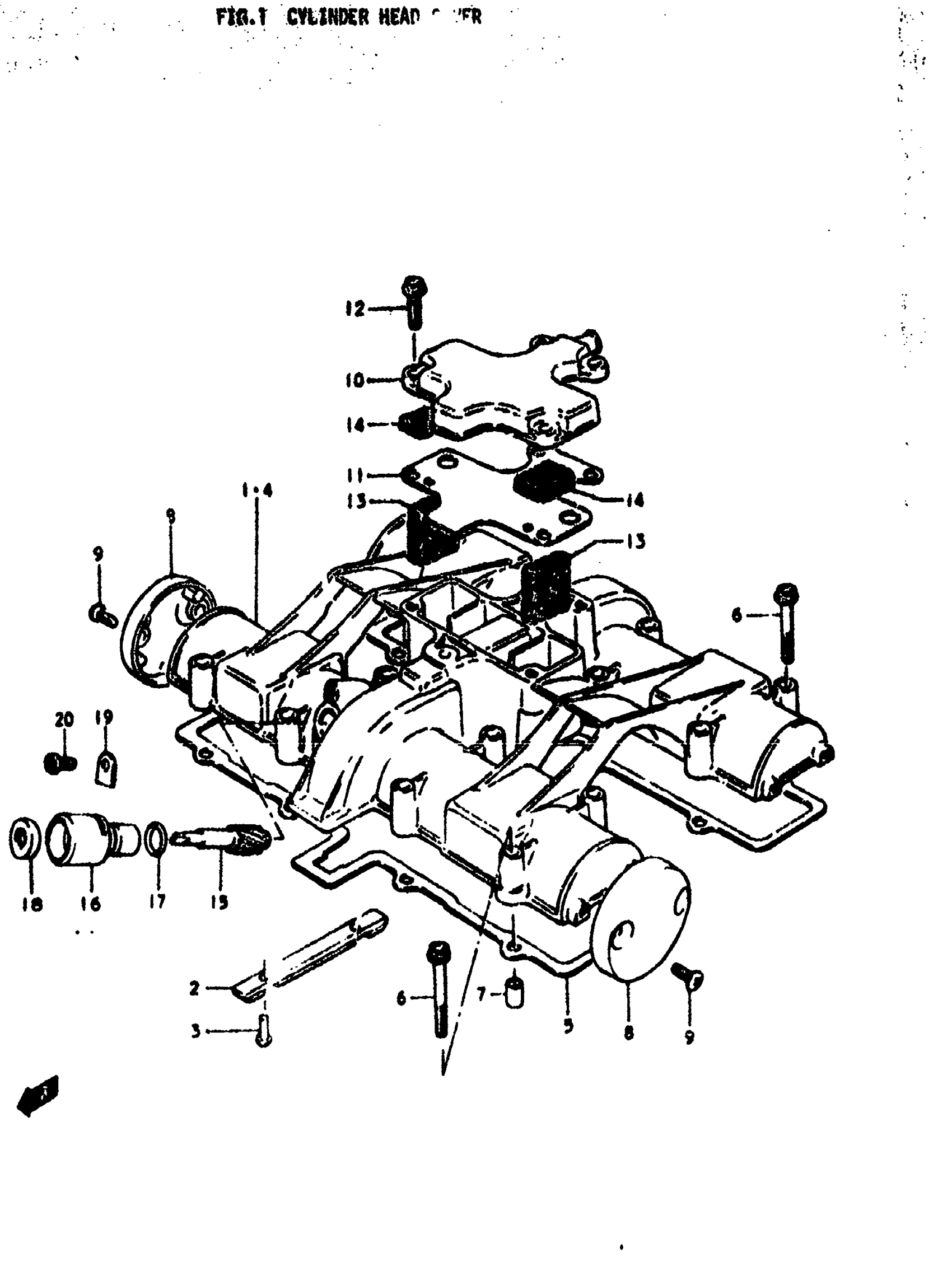

Suzuki GS550E (1979) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD | B; Includes Item(s) 2 - 3 This part replaces 11100-47820.

11171-47001

Unavailable

2

GUIDE, CAM CHAIN | B

12782-47040

Unavailable

3

RIVET | B

05111-05128

Unavailable

4

COVER, CYLINDER HEAD | C&EC,N&EN This part replaces 11171-47000.

11171-47001

Unavailable

5

GASKET,CYL HEAD | B,C&EC,N&EN This part replaces 11173-47001.

11173-47004-H17

Unavailable

6

BOLT | B,C&EC,N&EN This part replaces 01517-06408.

01550-06407

$2.69

6

BOLT (CHROME) | B,C&EC,N&EN This part replaces 01517-06458.

01550-06457

$2.69

7

PIN | B,C&EC,N&EN

09206-09001

Unavailable

8

CAP, SIDE | B,C&EC,N&EN This part replaces 11174-45000.

11174-49000

Unavailable

9

SCREW | B,C&EC,N&EN This part replaces 02132-05128.

02122-05127

$1.93

10

COVER, BREATHER | B,C&EC,&EN This part replaces 11176-47000.

11176-47042

Unavailable

11

BREATHER CVR GA | B,C&EC,N&EN This part replaces 11177-47001.

11177-47001-H17

$14.97

12

BOLT | B,C&EC,n7EN This part replaces 01517-06208.

01550-06207

$2.30

13

SEPARATOR,OIL B | B,C&EC,N&EN; 34x110 This part replaces 11186-45000.

11186-45001

Unavailable

14

SEPARATOR,OIL B | B,C&EC,N&EN; 35x68 This part replaces 11187-45000.

11187-45001

Unavailable

15

GEAR TACHO DRVN | B,C&EC,N&EN; NT:10 This part replaces 26431-47002.

26431-47003

Unavailable

16

SLEEVE | B,C&EC,N&EN This part replaces 26441-45000.

26441-49000

$30.58

17

SEAL BAND | B,C&EC,N&EN

26451-45000

$5.05

18

O, SEAL | B,C&EC,N&EN; 5x12x8 This part replaces 09289-05001.

09289-05002

$8.43

19

PLATE, GEAR SLEEVE | B,C&EC,N&EN

26449-33000

$4.35

20

SCREW | B,C&EC,N&EN

09128-05101

$1.49
