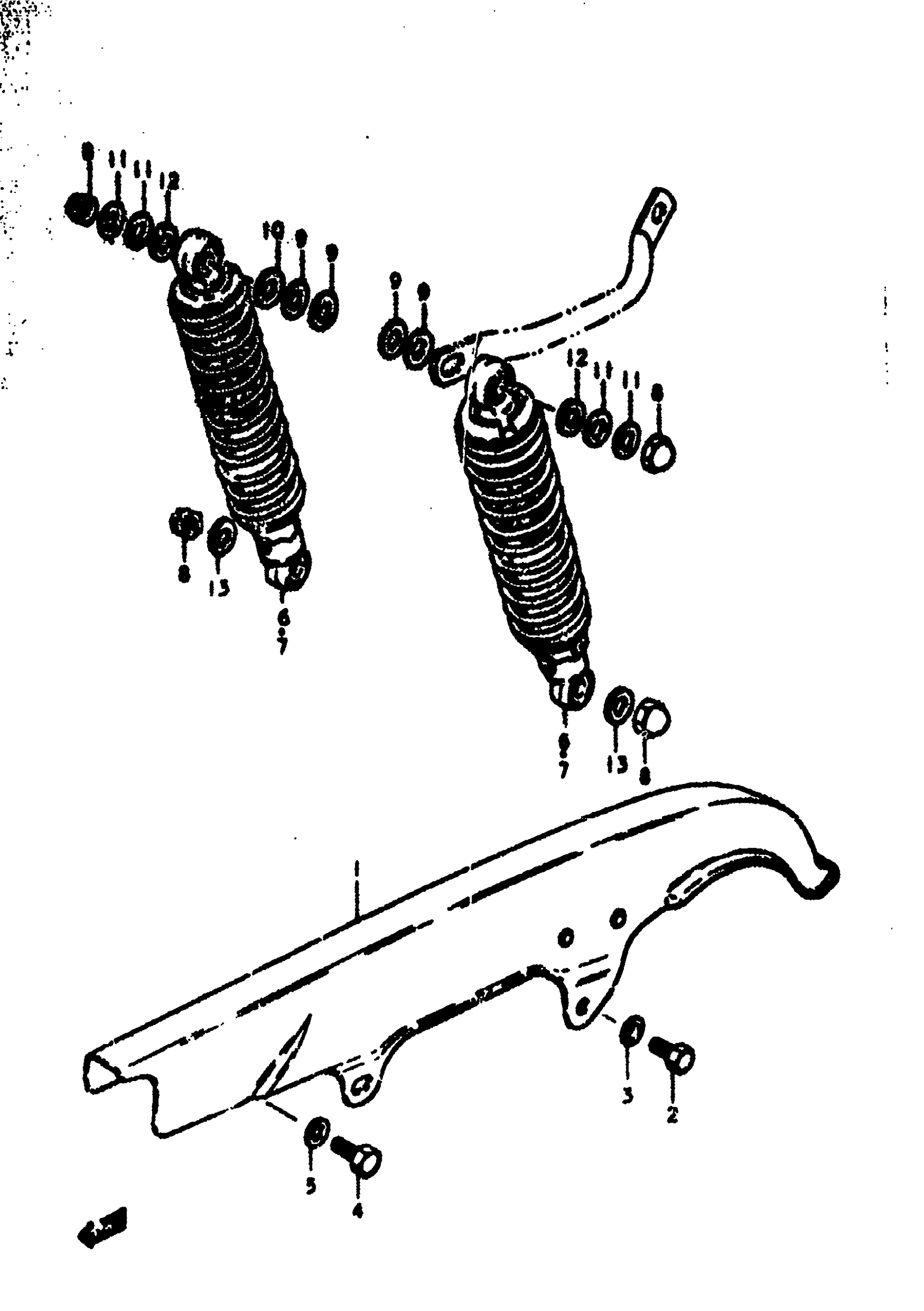

Suzuki GS550E (1979) CHAIN CASE - SHOCK ABSORBER Diagram

#

Description
Price

1

CHAIN CASE | B,C&EC,N&EN

61310-44000-019

Unavailable

2

BOLT | B,C&EC,N&EN

09100-06011

$1.67

3

WASHER | B,C&EC,N&EN

09169-06016

$1.65

4

BOLT | B,C&EC,N&EN This part replaces 01107-06108.

01500-06107

$2.06

5

WASHER (6.5X18X1.0) | B,C&EC,N&EN

09160-06028

$1.49

6

NO DESCRIPTION AVAILABLE | B,C&EC; FOR SPOKE WHEELS This part replaces 62100-47030.

62100-44411

Unavailable

6

NO DESCRIPTION AVAILABLE | N&EN; FOR SPOKE WHEELS This part replaces 62100-47031.

62100-44411

Unavailable

7

NO DESCRIPTION AVAILABLE | C&EC,N&EN; FOR CAST WHEELS This part replaces 62100-47610.

62100-44411

Unavailable

8

NUT | B,C&EC,N&EN This part replaces 08313-11108.

08313-10107

$2.50

9

WASHER | B,C&EC,N&EN This part replaces 08322-11128.

08322-01127

$1.84

10

WASHER, FRONT AXLE | B,C&EC,N&EN; 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

$3.29

11

WASHER, LOWER (10.5X24X2.3) | B,C&EC,N&EN; 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

12

WASHER | B,C&EC,N&EN; 10.5x24x3.2 This part replaces 09160-10033.

09160-10128-XC0

$2.62

13

WASHER, LOWER (10.5X24X2.3) | B,C&EC,N&EN This part replaces 09160-10001.

09160-10093

$2.35
