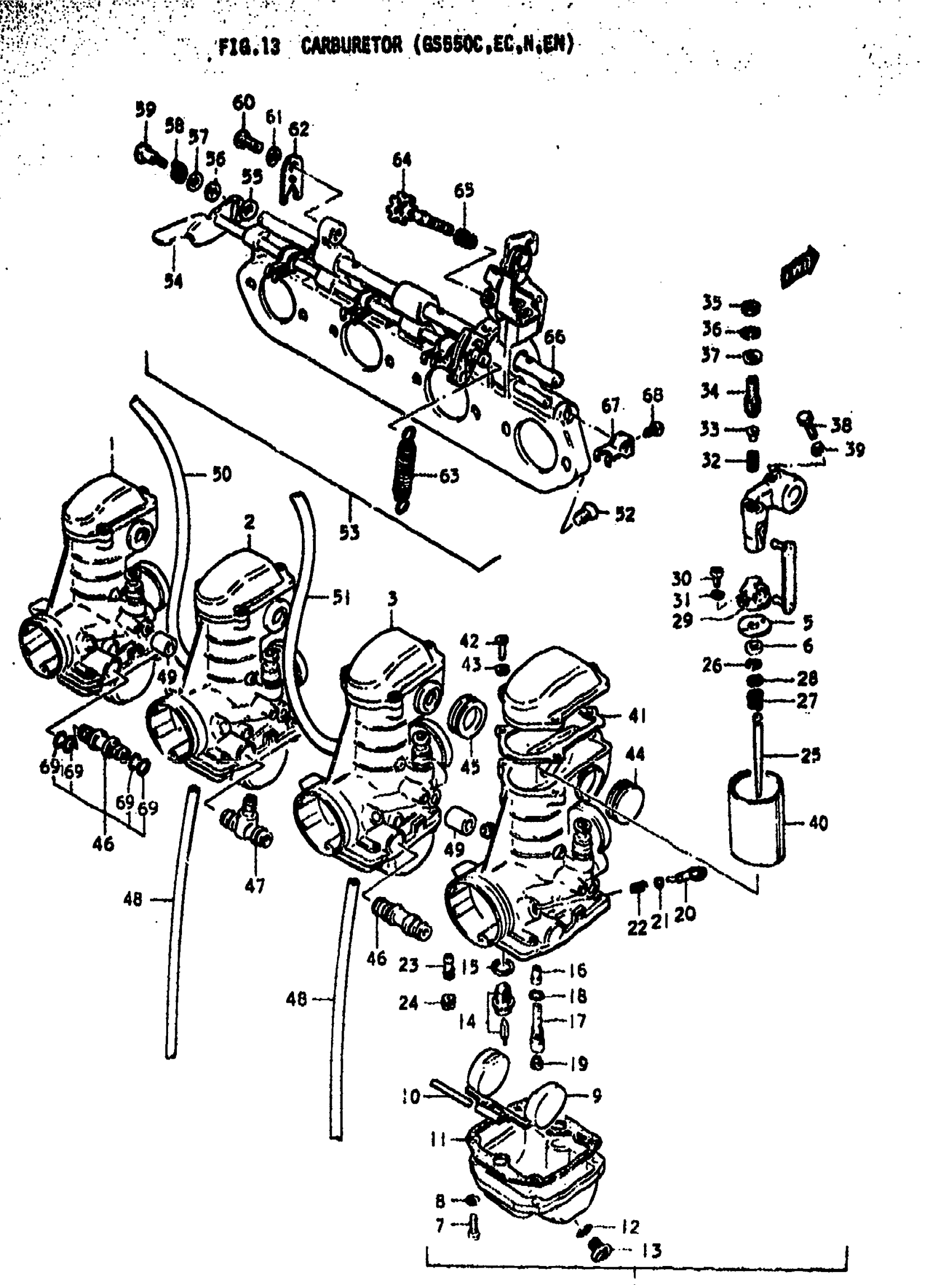

Suzuki GS550E (1979) CARBURETOR (GS550C.EC.N.EN) Diagram

#

Description
Price

0

CARBURETOR ASSY | C&EC,N&EN; EMISSION STYLE F.NO.GS550-118348~ F.NO.GS550E-108222~; Includes Item(s) 1 - 69

13200-47030

Unavailable

1

CARBURETOR ASSY, NO.1 | C&EC,N&EN; LH

13201-47030

Unavailable

2

CARBURETOR ASSY, NO.2 | C&EC,N&EN; CENTER LH

13202-47030

Unavailable

3

CARBURETOR ASSY, NO.3 | C&EC,N&EN; CENTER RH

13203-47030

Unavailable

4

CARBURETOR ASSY, NO.4 | C&EC,N&EN; RH

13204-47030

Unavailable

5

PLATE | C&EC,N&EN

13581-47010

Unavailable

6

RING | C&EC,N&EN

13387-47010

$7.22

7

SCREW | C&EC,N&EN This part replaces 02112-04168.

02112-0416A

$1.49

8

LOCK WASHER | C&EC,N&EN This part replaces 08321-21048.

08321-0104A

$1.84

9

FLOAT | C&EC,N&EN

13252-43010

Unavailable

10

.PIN, FLOAT | C&EC,N&EN

13254-01010

$3.62

11

GASKET | C&EC,N&EN This part replaces 13251-47010.

13251-43010

Unavailable

12

.O RING | C&EC,N&EN This part replaces 13246-43010.

13246-43011

$4.34

13

SCREW | C&EC,N&EN

13247-45010

Unavailable

14

VALVE, NEEDLE | C&EC,N&EN This part replaces 13370-45010.

13370-18111

$52.32

15

GASKET | C&EC,N&EN

13392-58600

$1.82

16

JET, NEEDLE | C&EC,N&EN; A0-4 This part replaces 09494-00206.

09494-00208

Unavailable

17

PIPE, BREADER | C&EC,N&EN; A

13385-47030

Unavailable

18

.O RING | C&EC,N&EN This part replaces 13246-43010.

13246-43011

$4.34

19

JET, MAIN | C&EC,N&EN; A80

09491-80008

Unavailable

20

ADJUSTER | C&EC,N&EN; 2.0

13269-32400

Unavailable

21

O RING | C&EC,N&EN

13295-33010

$4.48

22

SPRING | C&EC,N&EN

13268-01010

$5.28

23

JET, PILOT NO.1 | C&EC,N&EN; A15

09492-15007

$11.38

24

JET, PILOT NO.2 | C&EC,N&EN; #50

09493-50003

Unavailable

25

NEEDLE, JET | C&EC,N&EN; 5DL3-3

13383-47030

Unavailable

26

CLIP, NEEDLE | C&EC,N&EN

13394-10010

$5.45

27

SPRING | C&EC,N&EN

13388-47010

$6.91

28

WASHER | C&EC,N&EN

13382-47010

$3.56

29

BRACKET | C&EC,N&EN

13398-47010

Unavailable

30

SCREW | C&EC,N&EN This part replaces 02111-03148.

02112-0316B

$2.35

31

WASHER,LOCK | C&EC,N&EN This part replaces 08321-21038.

09162-03001

$1.49

32

SPRING | C&EC,N&EN

13543-45010

Unavailable

33

PIN | C&EC,N&EN

13544-43010

Unavailable

34

ADJUSTER | C&EC,N&EN

13548-45010

Unavailable

35

NUT | C&EC,N&EN This part replaces 08310-11058.

08310-00057

$1.84

36

LOCK WASHER | C&EC,N&EN This part replaces 08321-21058.

08321-0105A

$1.84

37

WASHER | C&EC,N&EN This part replaces 08322-21058.

08322-01057

$2.13

38

BOLT | C&EC,N&EN This part replaces 01104-05168.

01500-0516B

$2.15

39

LOCK WASHER | C&EC,N&EN This part replaces 08321-21058.

08321-0105A

$1.84

40

VALVE, THROTTLE | C&EC,N&EN; CA:1.5

13551-47030

Unavailable

41

GASKET | C&EC,N&EN

13266-43010

$8.20

42

SCREW | C&EC,N&EN This part replaces 02112-04168.

02112-0416A

$1.49

43

LOCK WASHER | C&EC,N&EN This part replaces 08321-21048.

08321-0104A

$1.84

44

CAP | C&EC,N&EN

13678-43010

Unavailable

45

SEAL | C&EC,N&EN

13556-45010

Unavailable

46

NIPPLE | C&EC,N&EN

13685-47030

Unavailable

47

NIPPLE | C&EC,N&EN

13685-47040

Unavailable

48

HOSE (3.5X6.5X6OO) | C&EC,N&EN; L:500 This part replaces 13683-47020.

13683-45070

$11.80

49

HOSE,5.8X12.2X6 | C&EC,N&EN; 6x12x19 This part replaces 13683-47010.

09356-58127-600

Unavailable

50

HOSE, AIR VENT | C&EC,N&EN; 4.5x8x325

13683-47050

Unavailable

51

HOSE(4.5X8.5X60 | C&EC,N&EN; 4.5x8x200 This part replaces 13683-45050.

09355-45001-600

$9.48

52

SCREW | C&EC,N&EN This part replaces 02122-06128.

02122-06127

$1.84

53

CONTPOL ASSY | C&EC,N&EN

13210-47020

Unavailable

54

SHAFT, STARTER | C&EC,N&EN

13410-47010

Unavailable

55

WASHER | C&EC,N&EN

13615-45010

$3.25

56

WASHER | C&EC,N&EN

13432-33110

$4.43

57

WASHER | C&EC,N&EN

13615-43010

$3.25

58

SPRING | C&EC,N&EN

13426-43010

Unavailable

59

SCREW | C&EC,N&EN

13433-33110

Unavailable

60

SCREW | C&EC,N&EN This part replaces 02111-05158.

02112-05167

$1.97

61

LOCK WASHER | C&EC,N&EN This part replaces 08321-21058.

08321-0105A

$1.84

62

PLATE | C&EC,N&EN

13557-33110

Unavailable

63

SPRING, THROTTLE RETURN | C&EC,N&EN

13573-47010

Unavailable

64

ADJUSTER,THROTTLE STOP | C&EC,N&EN This part replaces 13267-45010.

13267-47030

Unavailable

65

SPRING | C&EC,N&EN

13268-33110

Unavailable

66

SHAFT, THROTTLE | C&EC,N&EN

13550-47010

Unavailable

67

LEVER, STARTER | C&EC,N&EN

13422-43010

Unavailable

68

SCREW | C&EC,N&EN

13605-31210

$7.37

69

NO DESCRIPTION AVAILABLE | C&EC,N&EN; INNER PARTS OF REF. NO.44 AND 45 This part replaces 13679-43010.

13374-73000

Unavailable
