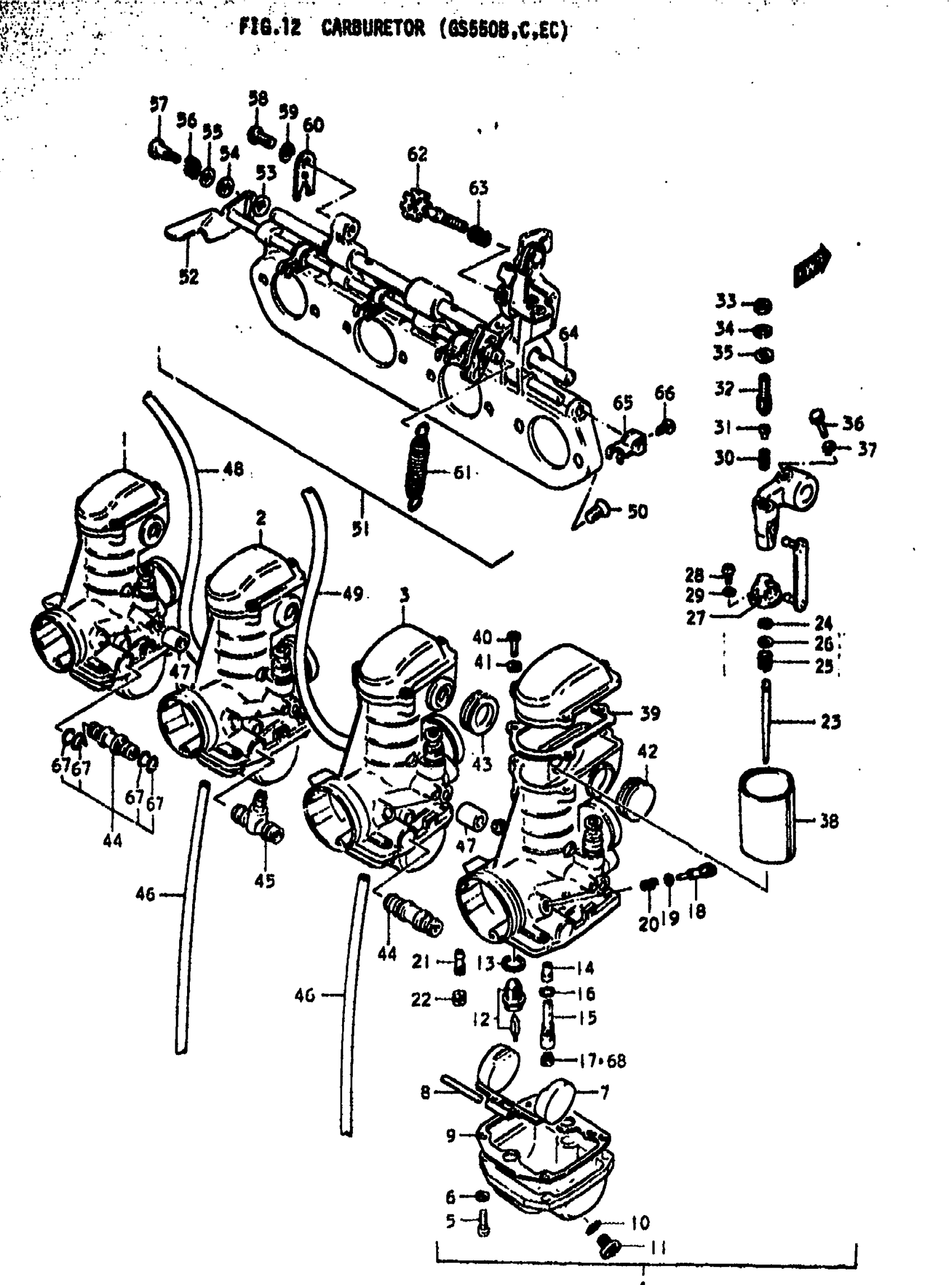

Suzuki GS550E (1979) CARBURETOR (GS550B.C.EC) Diagram

#

Description
Price

0

CARBURETOR ASSY | B,C,EC; ~F.NO.GS550-118347.; ~F.NO.G5350E-108221.; Includes Item(s) 1 - 67

13200-47010

Unavailable

1

CARBURETOR ASSY, NO.1 | B,C,EC; LH

13201-47010

Unavailable

2

CARBURETOR ASSY, NO.2 | B,C,EC; CENTER LH

13201-47010

Unavailable

3

CARBURETOR ASSY, NO.3 | B,C,EC; CENTER RH

13203-47010

Unavailable

4

CARBURETOR ASSY, NO.4 | B,C,EC; RH

13204-47010

Unavailable

5

SCREW | B,C,EC This part replaces 02112-04168.

02112-0416A

$1.49

6

LOCK WASHER | B,C,EC This part replaces 08321-21048.

08321-0104A

$1.84

7

FLOAT | B,C,EC

13252-43010

Unavailable

8

.PIN, FLOAT | B,C,EC

13254-01010

$3.62

9

GASKET | B,C,EC This part replaces 13251-47010.

13251-43010

Unavailable

10

.O RING | B,C,EC This part replaces 13246-43010.

13246-43011

$4.34

11

SCREW | B,C,EC

13247-45010

Unavailable

12

VALVE, NEEDLE | B,C,EC This part replaces 13370-45010.

13370-18111

$52.32

13

GASKET | B,C,EC

13392-58600

$1.82

14

JET, NEEDLE | B,C,EC; 0-6

09494-00198

Unavailable

15

PIPE, BREADER | B,C,EC

13385-47010

Unavailable

16

.O RING | B,C,EC This part replaces 13246-43010.

13246-43011

$4.34

17

JET, MAIN (180) | B,C,EC; #80 This part replaces 09491-80007.

09491-80008

Unavailable

18

ADJUSTER | B,C,EC; 2.0 This part replaces 13269-45010.

13269-49020

$11.83

19

O RING | B,C,EC

13295-33010

$4.48

20

SPRING | B,C,EC

13268-01010

$5.28

21

JET, PILOT (15) | B,C,EC; #15 This part replaces 09492-15003.

09492-15007

$11.38

22

JET, PILOT NO.2 | B,C,EC; #50

09493-50003

Unavailable

23

NEEDLE, JET | B,C,EC; 5DL35-3 This part replaces 13383-47010.

13383-45030

Unavailable

24

CLIP, NEEDLE | B,C,EC

13394-10010

$5.45

25

SPRING | B,C,EC

13388-47010

$6.91

26

WASHER | B,C,EC

13382-47010

$3.56

27

BRACKET | B,C,EC

13398-47010

Unavailable

28

SCREW | B,C,EC This part replaces 02111-03148.

02112-0316B

$2.35

29

WASHER,LOCK | B,C,EC This part replaces 08321-21038.

09162-03001

$1.49

30

SPRING | B,C,EC

13543-45010

Unavailable

31

PIN | B,C,EC

13544-43010

Unavailable

32

ADJUSTER | B,C,EC

13548-45010

Unavailable

33

NUT | B,C,EC This part replaces 08310-11058.

08310-00057

$1.84

34

LOCK WASHER | B,C,EC This part replaces 08321-21058.

08321-0105A

$1.84

35

WASHER | B,C,EC This part replaces 08322-21058.

08322-01057

$2.13

36

BOLT | B,C,EC This part replaces 01104-05168.

01500-0516B

$2.15

37

LOCK WASHER | B,C,EC This part replaces 08321-21058.

08321-0105A

$1.84

38

VALVE, THROTTLE | B,C,EC; CA:1.5

13551-47010

Unavailable

39

GASKET | B,C,EC

13266-43010

$8.20

40

SCREW | B,C,EC This part replaces 02112-04168.

02112-0416A

$1.49

41

LOCK WASHER | B,C,EC This part replaces 08321-21048.

08321-0104A

$1.84

42

CAP | B,C,EC

13678-43010

Unavailable

43

SEAL | B,C,EC

13556-45010

Unavailable

44

NIPPLE | B,C,EC This part replaces 13685-47010.

13685-47030

Unavailable

45

NIPPLE | B,C,EC; "T" TYPE This part replaces 13685-47020.

13685-47040

Unavailable

46

HOSE (3.5X6.5X6OO) | B,C,EC; L:500 This part replaces 13683-47020.

13683-45070

$11.80

47

HOSE,5.8X12.2X6 | B,C,EC; 6x12x19 This part replaces 13683-47010.

09356-58127-600

Unavailable

48

HOSE(4.5X8.5X60 | B,C,EC; 4.5x8x325 This part replaces 13683-47040.

09355-45001-600

$9.48

49

HOSE(4.5X8.5X60 | B,C,EC; 4.5x8x200 This part replaces 13683-45040.

09355-45001-600

$9.48

50

SCREW | B,C,EC This part replaces 02122-06128.

02122-06127

$1.84

51

CONTPOL ASSY | B,C,EC This part replaces 13210-47010.

13210-47020

Unavailable

52

SHAFT, STARTER | B,C,EC

13410-47010

Unavailable

53

WASHER | B,C,EC

13615-45010

$3.25

54

WASHER | B,C,EC

13432-33110

$4.43

55

WASHER | B,C,EC

13615-43010

$3.25

56

SPRING | B,C,EC

13426-43010

Unavailable

57

SCREW | B,C,EC

13433-33110

Unavailable

58

SCREW | B,C,EC This part replaces 02111-05158.

02112-05167

$1.97

59

LOCK WASHER | B,C,EC This part replaces 08321-21058.

08321-0105A

$1.84

60

PLATE | B,C,EC

13557-33110

Unavailable

61

SPRING, THROTTIE RETURN | B,C,EC

13573-47010

Unavailable

62

ADJUSTER,THROTTLE STOP | B,C,EC This part replaces 13267-45010.

13267-47030

Unavailable

63

SPRING | B,C,EC

13268-33110

Unavailable

64

SHAFT, THROTTLE | B,C,EC

13550-47010

Unavailable

65

LEVER, STARTER | B,C,EC

13422-43010

Unavailable

66

SCREW | B,C,EC

13605-31210

$7.37

67

NO DESCRIPTION AVAILABLE | B,C,EC; INNER PARTS OF REF. NO. 44AND 45. This part replaces 13679-43010.

13374-73000

Unavailable

68

NO DESCRIPTION AVAILABLE | B,C,EC; #75 OPT This part replaces 09491-75005.

09491-75009

Unavailable

68

JET, MAIN (75) | B,C,EC; #77.5 OPT This part replaces 09491-77003.

09491-77005

$11.83

68

JET, MAIN (82.5) | B,C,EC; #82.5 OPT This part replaces 09491-82002.

09491-82003

Unavailable

68

JET, MAIN (85) | B,C,EC; #85 OPT This part replaces 09491-85004.

09491-85008

$12.13

68

JET, MAIN (87.5) | B,C,EC; #87.5 OPT This part replaces 09491-87001.

09491-87005

$11.38
