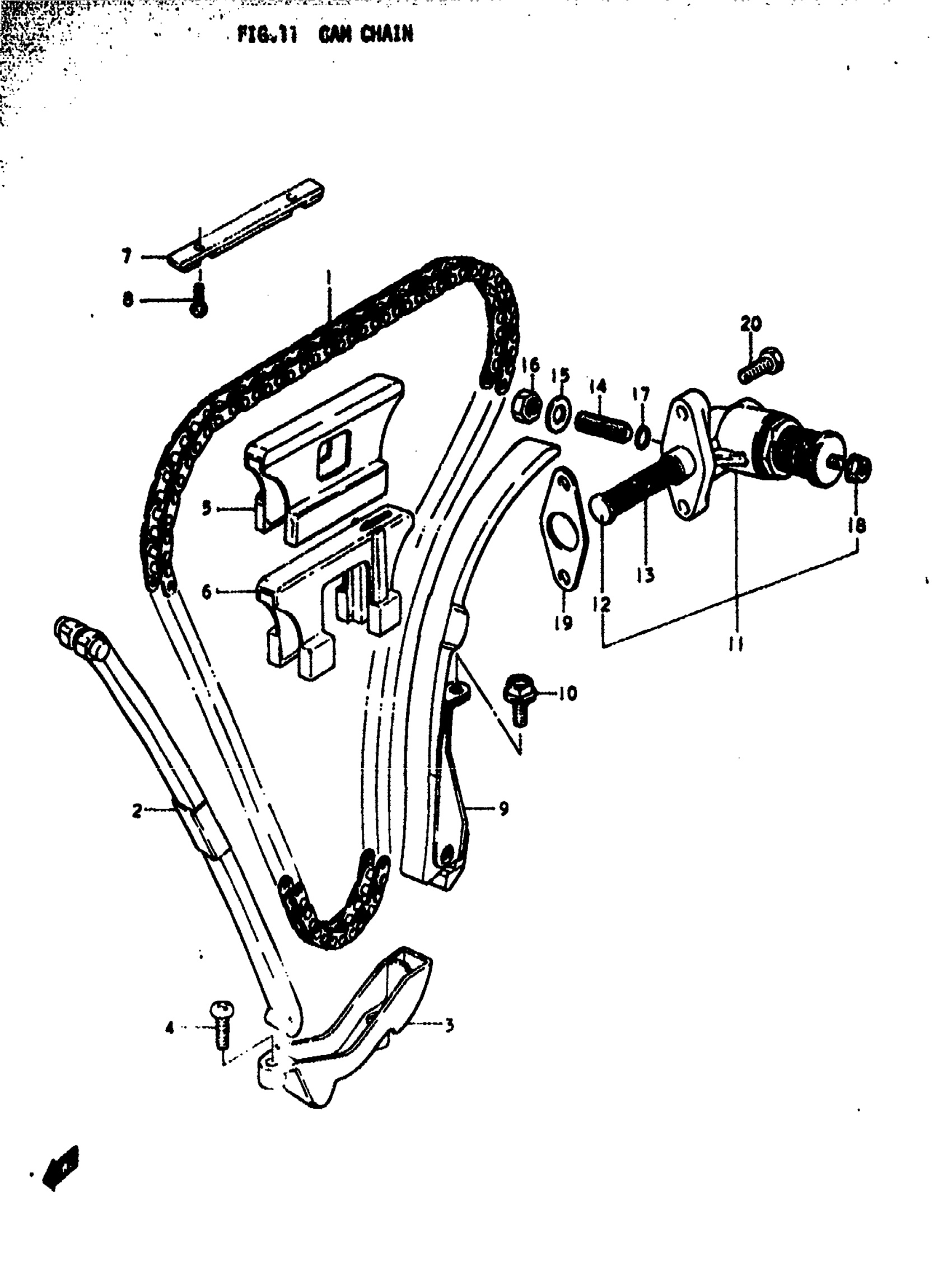

Suzuki GS550E (1979) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE | B,C&EC,N&EN; 1162 This part replaces 12760-47040.

12760-17D01

Unavailable

2

GUIDE, CAM CHAIN NO.1 | B,C&EC,N&EN This part replaces 12771-47040.

12771-47041

Unavailable

3

HOLDER, CAM CHAIN GUIDE NO.1 | B,C&EC,N&EN

12776-47000

Unavailable

4

SCREW | B,C&EC,N&EN This part replaces 02112-06208.

02112-06207

$1.78

5

GUIDE, CAM CHAIN NO. 2 | B This part replaces 12781-47040.

12781-47042

Unavailable

6

GUIDE, CAM CHAIN NO. 2 | B,C&EC This part replaces 12781-47041.

12781-47042

Unavailable

6

GUIDE, CAM CHAIN NO.2 | N&EN

12781-47042

Unavailable

7

GUIDE, CAM CHAIN NO.3 | C&EC,N&EN

12782-47040

Unavailable

8

SCREW | C&EC,N&EN This part replaces 02112-05128.

02112-05127

$1.97

9

TENSIONER, CAM CHAIN | B,C&EC,N&EN

12810-47040

Unavailable

10

BOLT M8X16 | B,C&EC,N&EN This part replaces 01517-08168.

01550-08167

$2.85

11

ADJUSTER ASSY,T | B,C&EC This part replaces 12830-47000.

12830-0930V

Unavailable

11

ADJUSTER ASSY,T | N&EN; Includes Item(s) 12 - 18 This part replaces 12830-47001.

12830-0930V

Unavailable

12

PUSH ROD | B,C&EC This part replaces 12833-47000.

12833-47001

Unavailable

12

PUSH ROD | N&EN

12833-47001

Unavailable

13

SPRING | B,C&EC,N&EN

09440-12017

$2.45

14

SCREW | B,C&EC,N&EN

12838-45001

$8.42

15

WASHER | B,C&EC,N&EN This part replaces 08322-11088.

08322-01087

$2.13

16

NUT | B,C&EC,N&EN This part replaces 08310-12088.

08310-00087

$2.13

17

.O RING (D:1.9,ID:5.7) | B,C&EC,N&EN This part replaces 09280-06003.

09280-06005

$1.49

18

NUT | B,C&EC,N&EN This part replaces 09159-06017.

08319-31067

$2.03

19

GKT,TENSIONER A | B,C&EC,N&EN This part replaces 12837-47000.

12837-47010

$4.22

20

BOLT, STARTING MOTOR | B,C&EC,N&EN This part replaces 09128-06012.

09103-06212

$2.47
