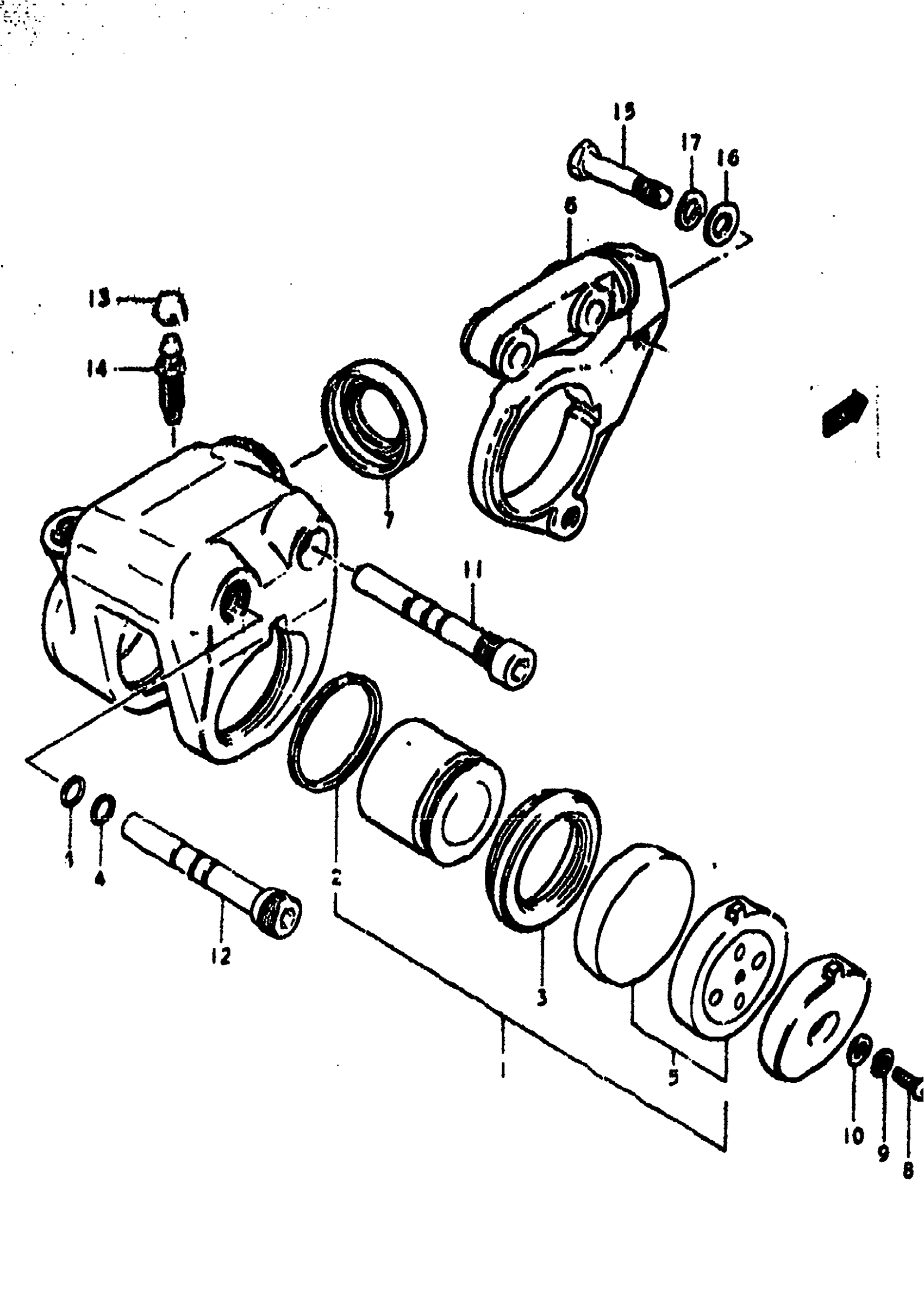

Suzuki GS550E (1979) CALIPERS Diagram

#

Description
Price

0

CALIPERS ASSY | B This part replaces 59300-45020.

59300-45022

Unavailable

0

CALIPERS ASSY | C&EC,N&EN; ASCO; Includes Item(s) 1 - 14 This part replaces 59300-45021.

59300-45022

Unavailable

1

NO DESCRIPTION AVAILABLE | B This part replaces 59300-45810.

59300-45811

Unavailable

1

NO DESCRIPTION AVAILABLE | C&EC,N&EN This part replaces 59300-45830.

59300-45831

Unavailable

2

PISTON SEAL | B,C&EC,N&EN This part replaces 59307-45020.

59307-45021

Unavailable

3

BOOT, PISTON | B,C&EC,N&EN

59308-45020

Unavailable

4

O RING | B,C&EC,N&EN

59111-34020

Unavailable

5

PAD SET | B

59300-45820

Unavailable

5

NO DESCRIPTION AVAILABLE | C&EC,N&EN This part replaces 59300-47810.

59300-47870

Unavailable

6

HOLDER, CALLPERS | B,C&EC,N&EN; FROM 59350-34020

59150-34020

Unavailable

7

BOOT, HOLDER | B,C&EC,N&EN

59112-34020

Unavailable

8

SCREW | B,C&EC,N&EN

02112-05107

$1.49

9

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21058.

08321-0105A

$1.84

10

WASHER | B,C&EC,N&EN This part replaces 08322-21058.

08322-01057

$2.13

11

AXLE, CALLPERS NO.1 | B,C&EC,N&EN

59305-45020

Unavailable

12

AXLE, CALLPERS NO.2 | B,C&EC,N&EN

59306-45020

Unavailable

13

CAP, BLEEDER | B,C&EC,N&EN; FROM 59474-30010 This part replaces 52474-60020.

55156-66310

$5.17

14

BLEEDER | B,C&EC,N&EN

59121-34020

$13.35

15

BOLT (10X38) | B,C&EC,N&EN This part replaces 09104-10007.

09104-10029

$3.55

16

WASHER | B,C&EC,N&EN This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.84
