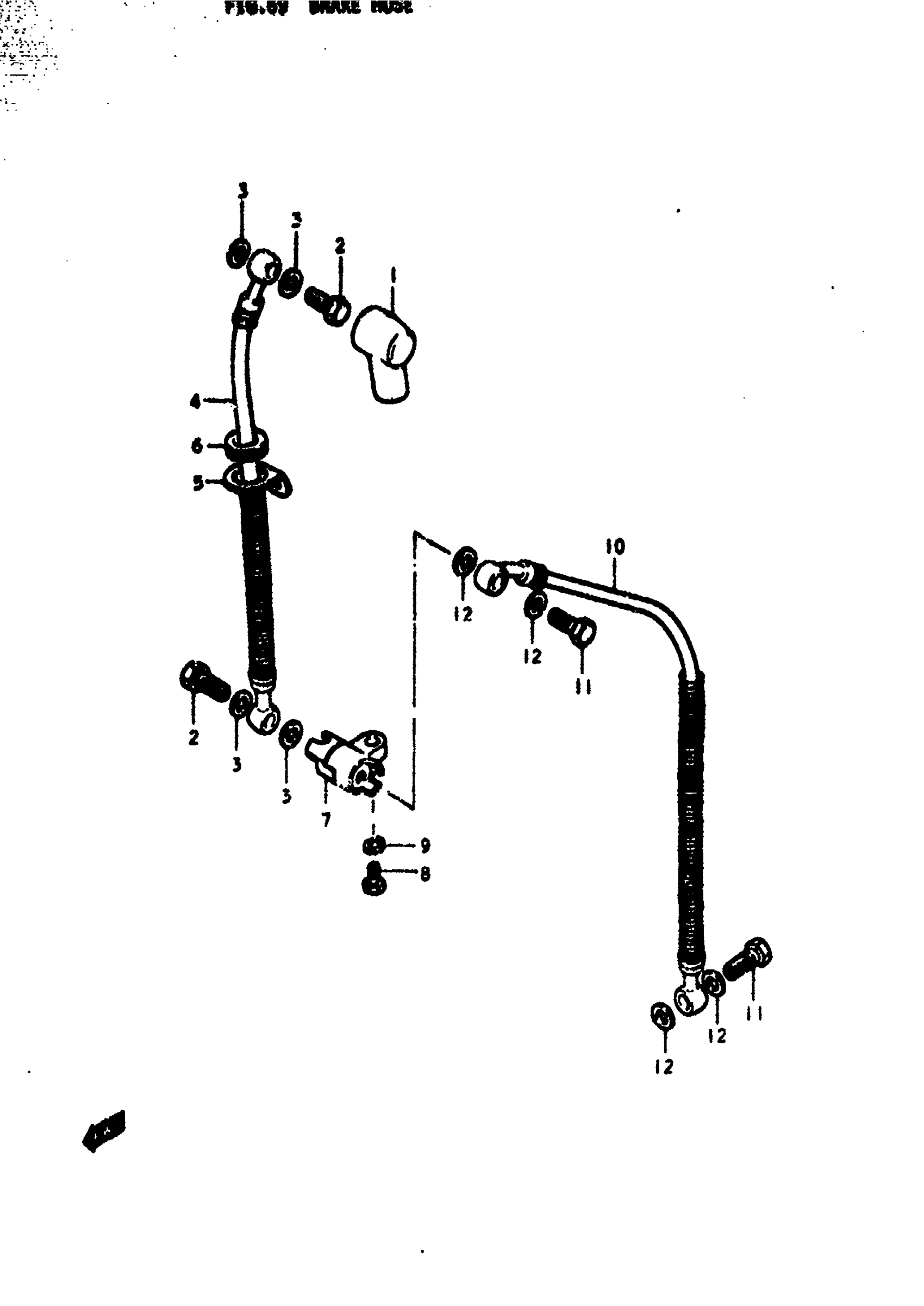

Suzuki GS550E (1979) BRAKE HOSE Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER | B,C&EC,N&EN This part replaces 59711-18400.

59711-49001

$7.51

2

UNION | B,C&EC,N&EN This part replaces 09360-10003.

09360-10017

$3.42

3

WASHER (10X15X1.5) | B,C&EC,N&EN This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE, BRAKE NO.1 | B

59480-37013

Unavailable

4

HOSE, BRAKE NO.1 | C&EC,N&EN This part replaces 59480-44000.

59480-37013

Unavailable

5

GUIDE, HOSE | B,C&EC,N&EN

59243-31000

Unavailable

6

GROMMET | B,C&EC,N&EN This part replaces 09308-14007.

09308-14009

Unavailable

7

JOINT, BRAKE HOSE | B,C&EC,N&EN This part replaces 59491-45000.

59491-45001

Unavailable

8

BOLT | B,C&EC,N&EN This part replaces 01107-06208.

01500-06207

$2.28

9

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21068.

08321-01067

$2.13

10

HOSE, BRAKE NO. 2 | B,C&EC,N&EN This part replaces 59240-44000.

59240-44001

Unavailable

11

UNION | B,C&EC,N&EN This part replaces 09360-10003.

09360-10017

$3.42

12

WASHER (10X15X1.5) | B,C&EC,N&EN This part replaces 09161-10005.

09161-10009

$1.84
