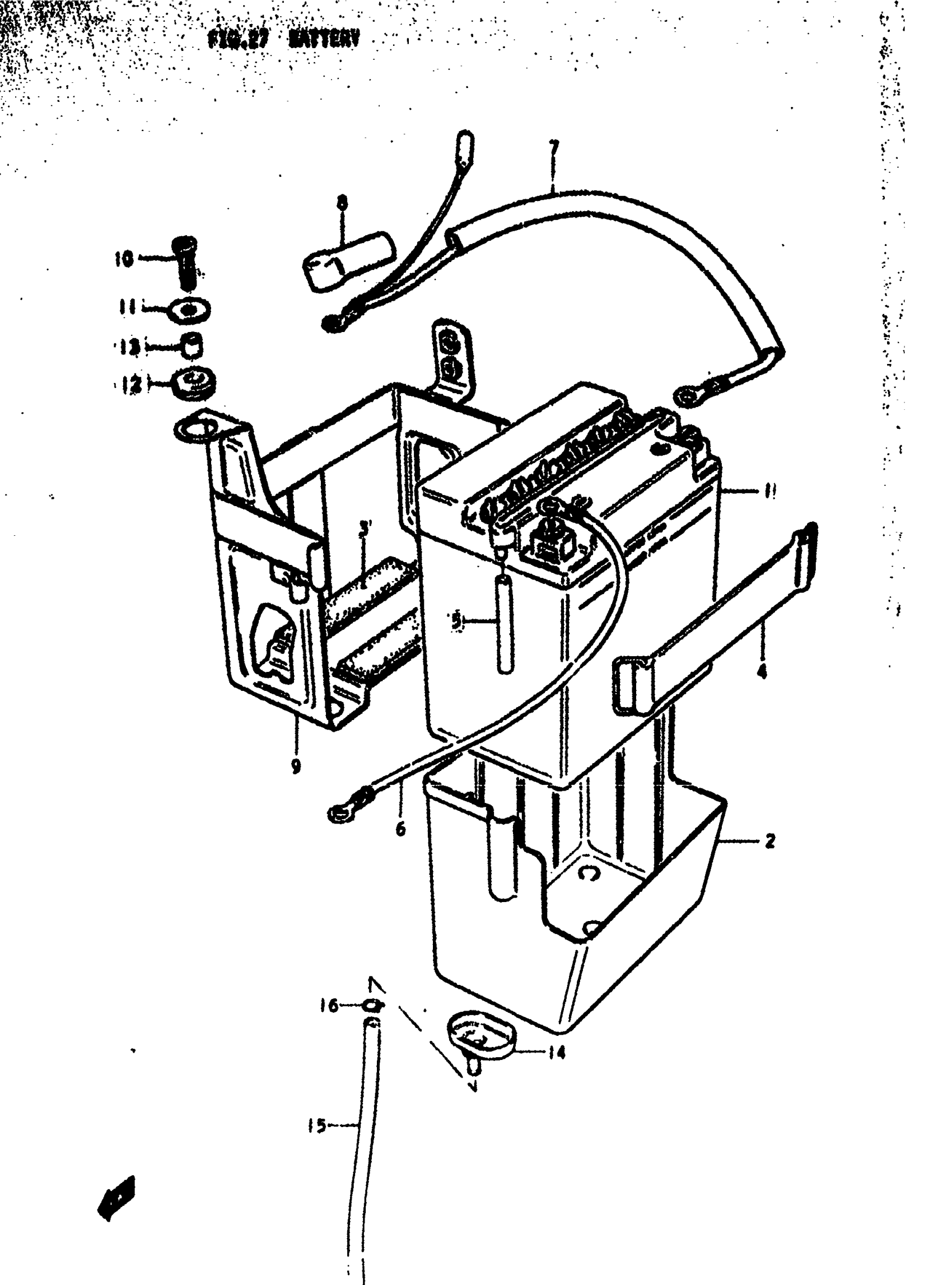

Suzuki GS550E (1979) BATTERY Diagram

#

Description
Price

1

BATTERY | B,C&EC,N&EN; 12V, 10AH

33610-44010

Unavailable

2

CASE, BATTERY | B,C&EC,N&EN

33661-47000

Unavailable

3

CUSHION, REAR FENDER REAR | B,C&EC,N&EN This part replaces 33652-29100.

33651-37000

$4.48

4

BAND | B,C&EC,N&EN; L:140

09462-00043

$4.11

5

HOSE,BATTERY EX | B,C&EC,N&EN; L:45 This part replaces 33681-47000.

33680-16A11

$6.78

6

LEAD WIRE, (-) | B,C&EC,N&EN This part replaces 33850-47000.

33850-03201

$9.94

7

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN This part replaces 33820-47001.

33820-47003

Unavailable

8

CAP, TERMINAL | B,C&EC,N&EN

33624-45000

$4.58

9

HOLDER, BATTERY | B,C&EC This part replaces 41540-47000.

41540-47010

Unavailable

9

HOLDER, BATTERY | N&EN

41540-47010

Unavailable

10

BOLT | B,C&EC,N&EN This part replaces 09128-06006.

09128-06057

$1.65

11

WASHER (6.5X20X1.6) | B,C&EC,N&EN This part replaces 09160-06020.

09160-06066

$1.89

12

CUSHION (8.5X20X8) | B,C&EC,N&EN This part replaces 09320-08007.

09320-08510

$1.97

13

SPACER | B,C&EC,N&EN

09180-06038

$1.98

14

FUNNEL, EXHAUST | B,C&EC,N&EN

33662-47000

Unavailable

15

HOSE,BATTERY EX | B,C&EC; L:400 This part replaces 33680-47000.

33680-16A11

$6.78

15

HOSE,BATTERY EX | N&EN; L:450 This part replaces 33680-47001.

33680-16A11

$6.78

16

CLIP | B,C&EC,N&EN

09401-08301

$1.65
