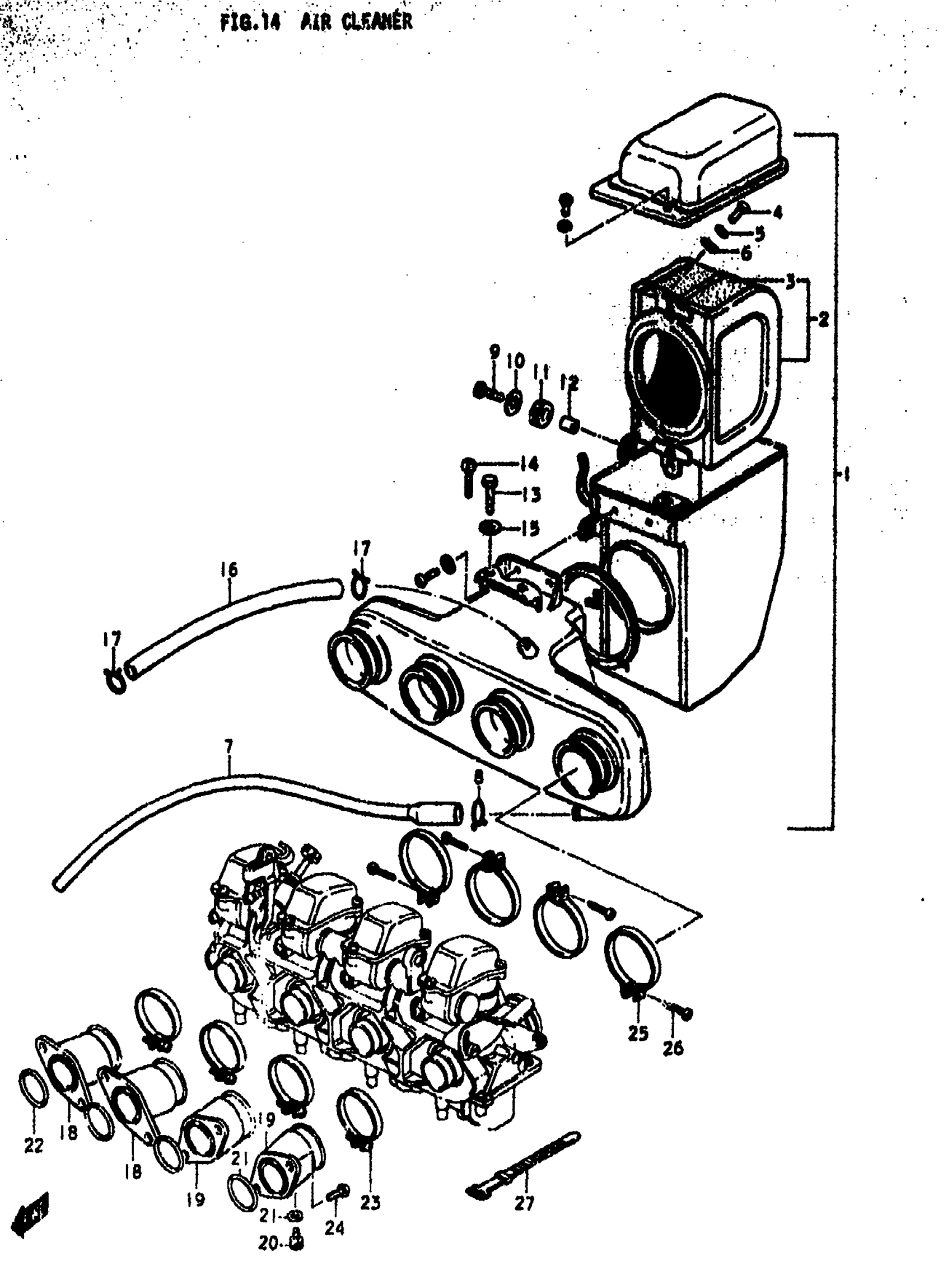

Suzuki GS550E (1979) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | B This part replaces 13700-47010.

13700-47012

Unavailable

1

CLEANER ASSY, AIR | C&EC

13700-47012

Unavailable

1

CLEANER ASSY, AIR | N&EN; Includes Item(s) 2 - 8

13700-47020

Unavailable

2

FILTER ASSY | B,C&EC,N&EN

13780-47010

Unavailable

3

ELEMENT | B,C&EC,N&EN This part replaces 13781-47010.

13781-47030

Unavailable

4

SCREW | B,C&EC,N&EN This part replaces 02112-05108.

02112-05107

$1.49

5

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21058.

08321-0105A

$1.84

6

WASHER, FRONT | B,C&EC,N&EN This part replaces 08322-21056.

08322-0105A

$1.84

7

HOSE, DRAIN | B,C&EC,N&EN

13791-47010

Unavailable

8

CLIP | B,C&EC,N&EN This part replaces 13795-44010.

09401-14301

$2.35

9

BOLT | B,C&EC,N&EN This part replaces 01107-06208.

01500-06207

$2.28

10

WASHER | B,C&EC,N&EN This part replaces 09160-06007.

09160-06084

$1.78

11

CUSHION (8X18X10) | B,C&EC,N&EN This part replaces 09320-08001.

09320-08527

$2.06

12

SPACER (6.5X9X9) | B,C&EC,N&EN This part replaces 09180-06011.

09180-06263

$2.03

13

BOLT | B,C&EC This part replaces 01107-06128.

01500-06127

$1.97

14

SCREW | N&EN This part replaces 02112-06128.

02112-06127

$1.84

15

WASHER | B,C&EC,N&EN This part replaces 08322-21068.

08322-01067

$2.13

16

HOSE,11X15X2000 | B,C&EC,N&EN This part replaces 09343-11001.

09352-11154-00B

$48.35

17

CLIP | B,C&EC,N&EN

09401-14301

$2.35

18

PIPE,INTAKE,R | B,C&EC,N&EN This part replaces 13110-47000.

13110-47002

Unavailable

19

PIPE,INTAKE LH | B,C&EC,N&EN This part replaces 13120-47000.

13120-47002

Unavailable

20

BOLT, PICK UP & CLAMP | B,C&EC,N&EN This part replaces 09106-05006.

07130-0510B

$2.62

21

WASHER | B,C&EC,N&EN This part replaces 08322-21058.

08322-01057

$2.13

22

O RING | B,C&EC,N&EN

09280-28003

$2.09

23

CLAMP | B,C&EC,N&EN This part replaces 09402-42306.

09402-42303

$4.77

24

SCREW | B,C&EC,N&EN This part replaces 02112-06168.

02112-06167

$1.49

25

CLAMP | B,C&EC,N&EN This part replaces 09402-48304.

09402-48208

$4.64

26

SCREW | B,C&EC,N&EN This part replaces 03111-04208.

03112-0420B

$2.70

27

CLAMP, CARBURETOR OVER FLOW | B,C&EC,N&ENB,C&EC,N&EN

09407-12402

$3.04
