2009 Suzuki GS500F Wiring Harness Diagram

← All diagrams

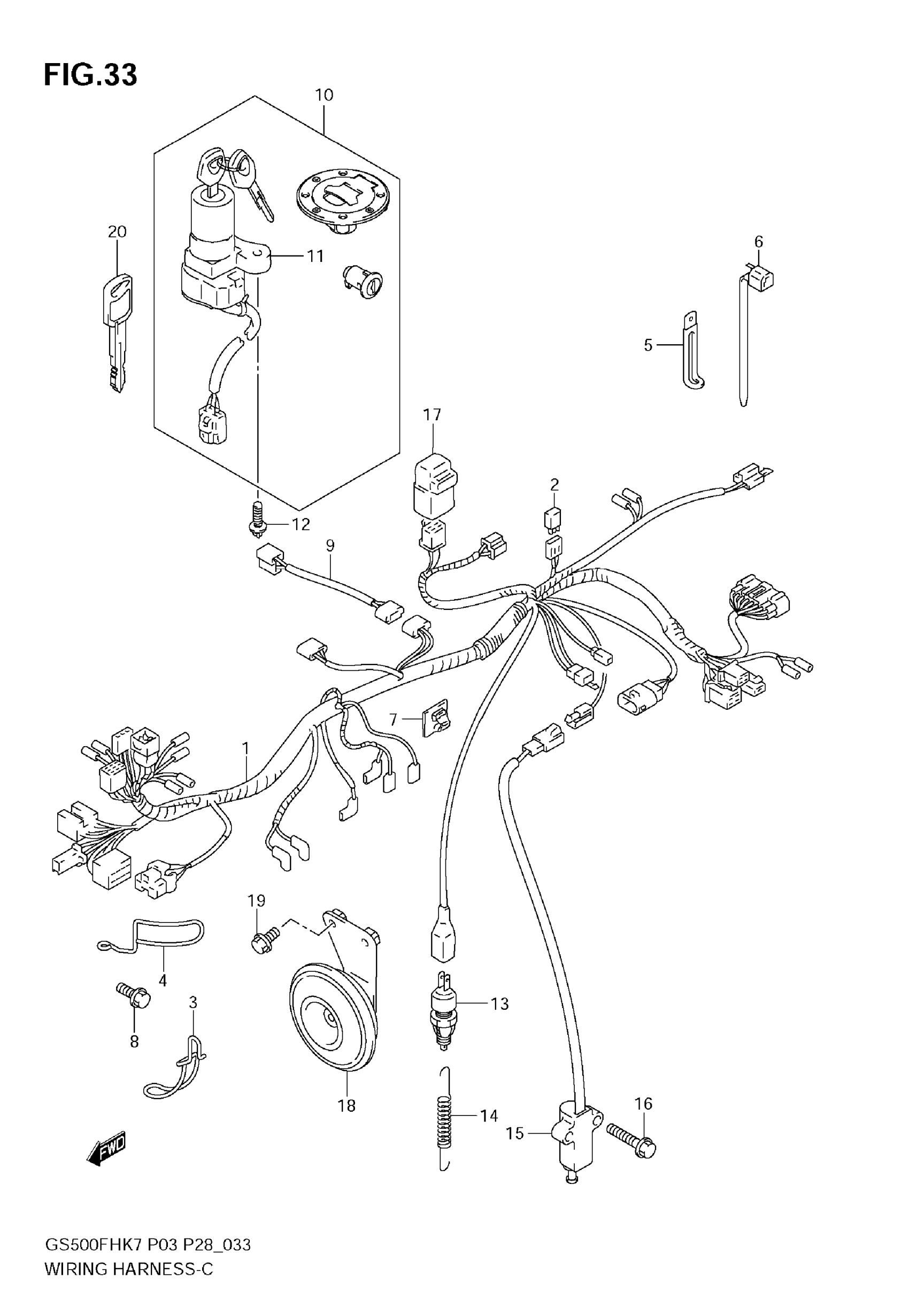

Find the part on the Wiring Harness diagram for your 2009 Suzuki GS500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GS500F Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | Includes Item(s) 2

36610C0BEP0J000

1
Out of stock

2

DIODE

36611-02E01

1
Out of stock

3

PROTECTOR, WIRING HARNESS

36611-01D00

1
Out of stock

4

PROTECTOR, WIRING HARNESS

36611-01D10

1
Out of stock

5

CLAMP (L:65)

09404-06429

1
Out of stock

5

CLAMP This part replaces 09404-06431.

09404-06039

2
Out of stock

5

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

1
Out of stock

5

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

2
Out of stock

6

CLAMP (L:125)

D9436-01425

7
Out of stock

6

NO DESCRIPTION AVAILABLE This part replaces D9448-01885.

D9448-02875

2
Out of stock

6

CLAMP (L:190)

09407-19401

1
Out of stock

7

CLAMP

09403-06310

1
Out of stock

8

BOLT, WIRING HARNESS GUIDE

D1557-0616B

1
Out of stock

9

WIRE, AIR SOLENOID

36852-01D40

1
Out of stock

10

LOCK SET | Includes Item(s) 11 This part replaces 37000-01870.

37000-01871

1
Out of stock

11

LOCK ASSY, STEERING

37100-01D40

1
Out of stock

12

BOLT

09139-06026

2
Out of stock

13

SWITCH ASSY, STOP LAMP

37740-24A00

1
Out of stock

14

SPRING

09443-06042

1
Out of stock

15

SWITCH ASSY,SID This part replaces 37840-26D00.

37840-26X52

1
Out of stock

16

BOLT This part replaces D1557-0630B.

01550-0630B

2
Out of stock

17

RELAY ASSY, SIDE STAND This part replaces 38740-24B00.

38740-24X50

1
Out of stock

18

HORN ASSY This part replaces 38500C01D20J000.

38500-01D10

1
Out of stock

19

BOLT This part replaces D1557-0612B.

D1557-0616B

2
Out of stock

20

KEY, BLANK | OPT

37146-33E00

1
Out of stock
