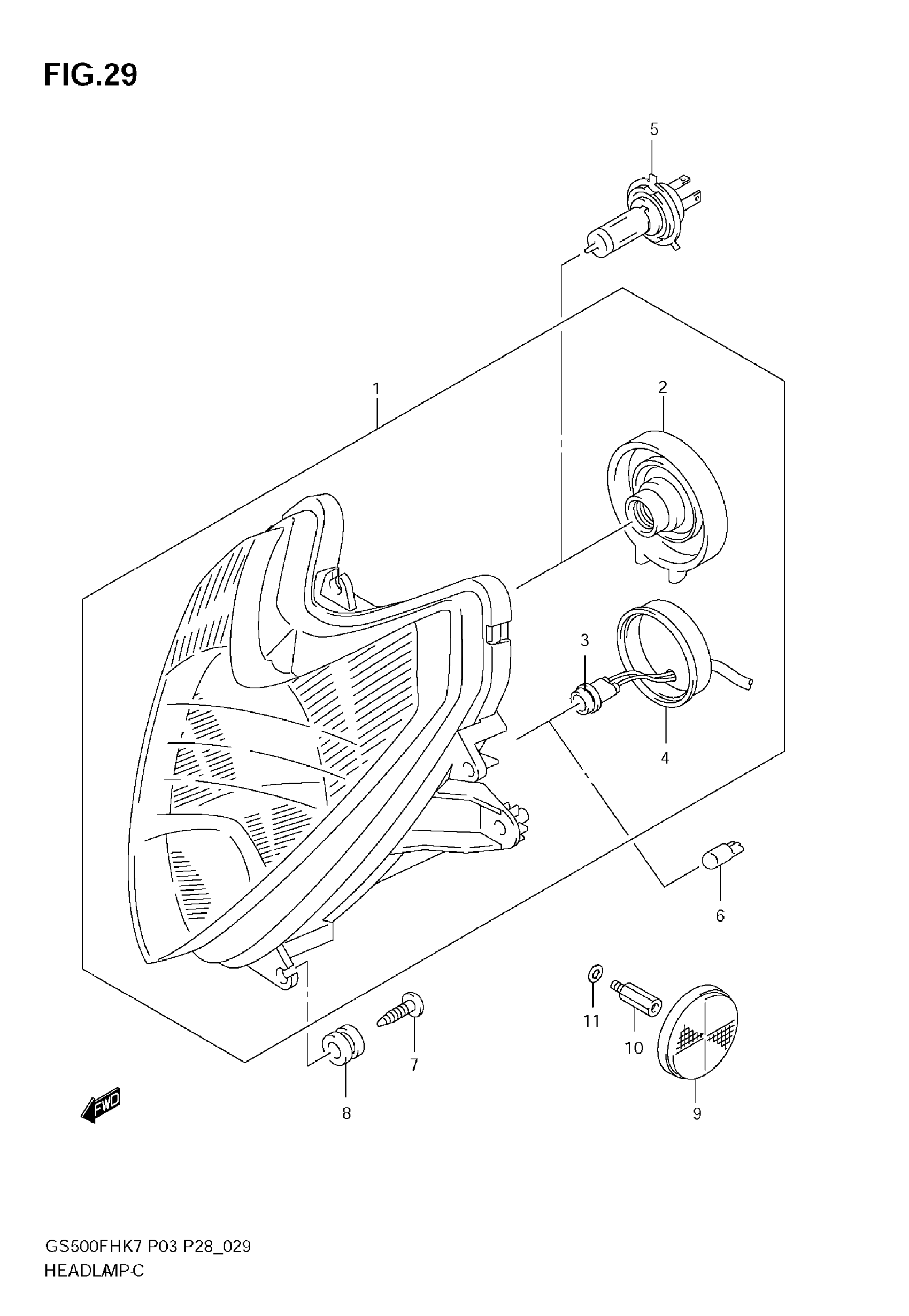

Suzuki GS500F (2009) HEADLAMP (GS500F E3, E28, E33, E95) Diagram

HEADLAMP ASSY | Includes Item(s) 2 - 3

35100-01DB0-999

Unavailable

COVER, SOCKET

35173-0BE10

$5.65

CORD ASSY

36118-0BE10

Unavailable

COVER, SOCKET

35173-0BE20

Unavailable

BULB (12V60/55W, H4)

09471-12060

$22.69

.BULB (12V5W)

09471-12216

$4.84

SCREW

09136-05062

$2.19

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$2.95

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$13.94

BOLT (5X10)

09119-05023

$13.80

WASHER

D8322-0105B

Unavailable
