2009 Suzuki GS500F Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2009 Suzuki GS500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

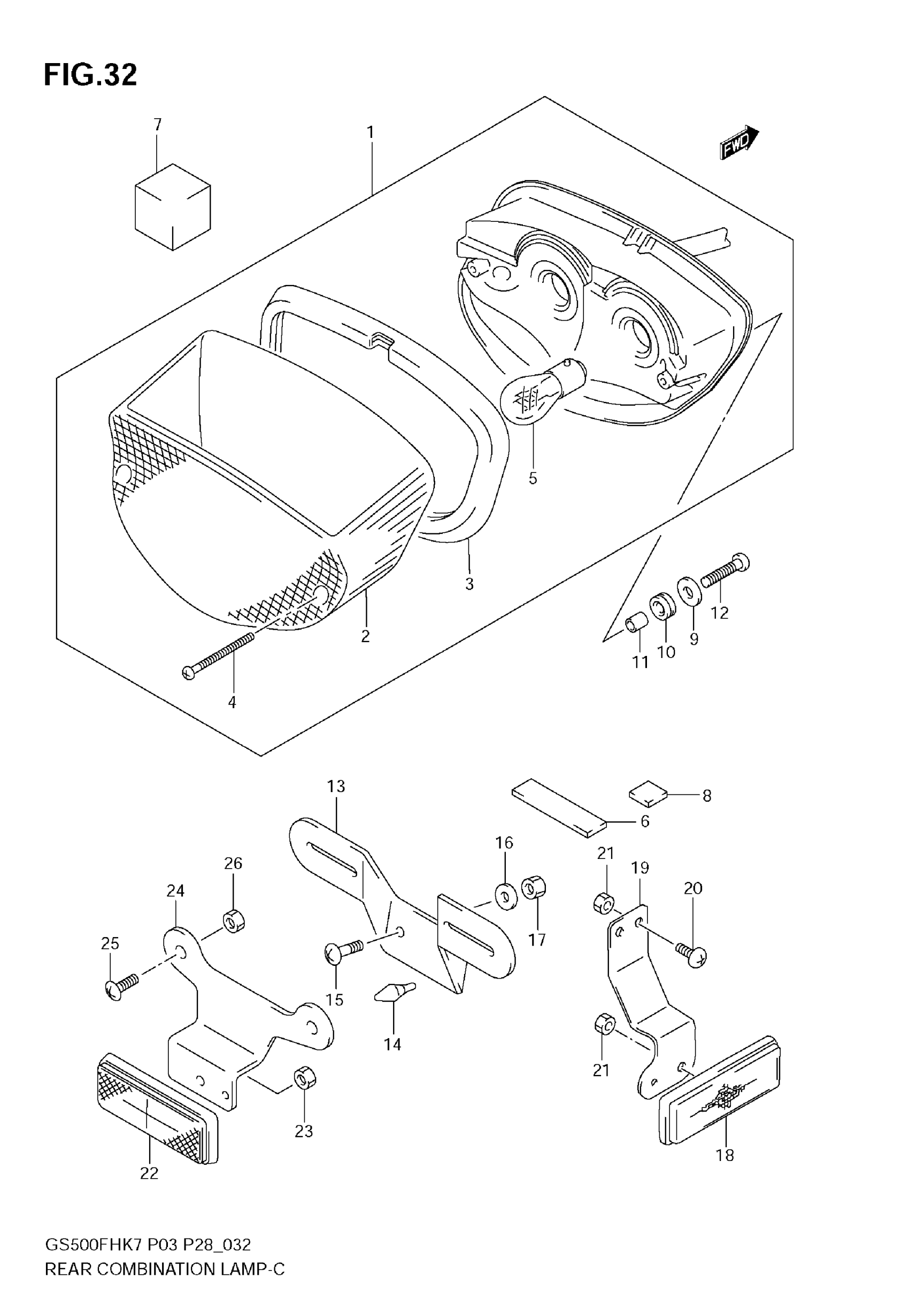

2009 Suzuki GS500F Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 5

35710-01D30

1
Out of stock

2

LENS

35712-01D20

1
Out of stock

3

GASKET, LENS

35713-01D20

1
Out of stock

4

SCREW

03511-0440B

—
Out of stock

5

BULB (12V,32/3CP)

09471-12204

2

$13.28

In stock

7

CUSHION, UPPER (40X40X38) This part replaces 33652C01D20J000.

33652-01D20

1
Out of stock

9

WASHER

D8322-9106B

2
Out of stock

10

CUSHION

09320-09009

2

$4.50

In stock

11

SPACER (6.5X9X8.5)

09180-06262

2
Out of stock

12

SCREW

D2116-0620B

—
Out of stock

13

BRACKET, LICENSE PLATE

35927-01D30

1
Out of stock

14

CUSHION

09321-06026

1
Out of stock

15

2

$0.20

In stock

16

WASHER

D8322-9106B

2
Out of stock

17

NUT This part replaces D8310-0006B.

08319-3106B

2
Out of stock

18

2

$29.32

In stock

19

BRACKET, REAR SIDE RR

35977-01D11

2
Out of stock

20

SCREW

02142-0512B

4
Out of stock

21

NUT This part replaces 08310-0005B.

08310-0005A

6
Out of stock

22

REFLEX REFLECTOR ASSY, REAR

35970-07F01

1
Out of stock

23

NUT This part replaces D8310-0005B.

D8310-00055

1
Out of stock

24

BRACKET, REAR REFLEX REFLECTOR

35974-01D00

1
Out of stock

25

SCREW

D2116-0612B

2
Out of stock

26

NUT This part replaces D8310-0006B.

08319-3106B

2
Out of stock
