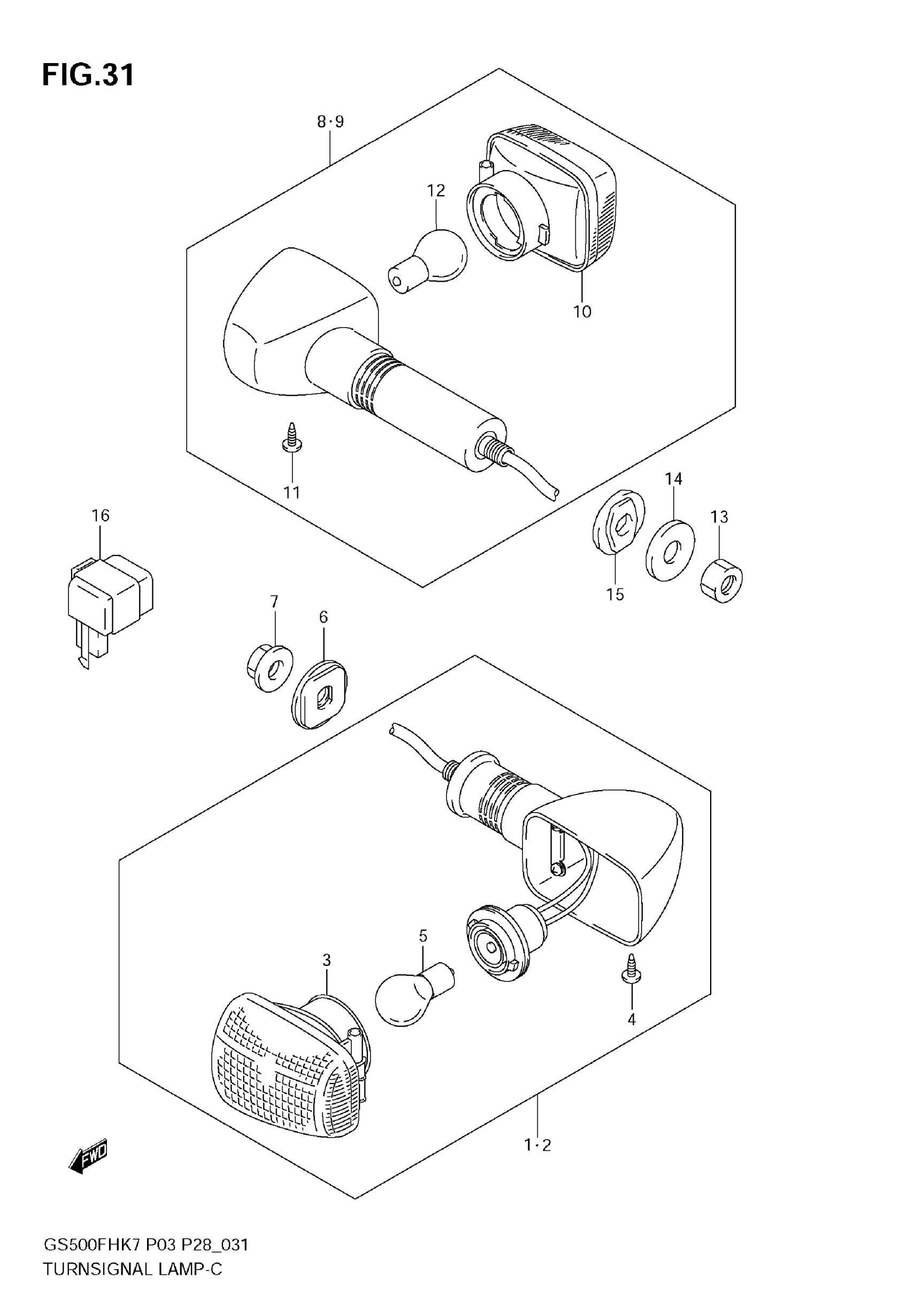

Find the part on the Turnsignal Lamp diagram for your 2009 Suzuki GS500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GS500F Turnsignal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FRONT RH

35601-01D30

1

$57.37

In stock

2

1

$57.37

In stock

3

LAMP UNIT

35610-01D20

2
Out of stock

4

SCREW

03241-0412B

—
Out of stock

5

BULB (12V, 21W)

09471-12045

2
Out of stock

6

2

$0.85

In stock

7

NUT

08316-1010B

2
Out of stock

8

LAMP ASSY, REAR RH

35603-01D20

1

$57.37

In stock

9

1

$57.37

In stock

10

LAMP UNIT

35610-01D20

2
Out of stock

11

SCREW

03241-0412B

—
Out of stock

12

BULB 812V, 21W)

09471-12045

2
Out of stock

13

NUT

D8310-1010B

—
Out of stock

14

WASHER

09160-10501

2

$2.52

In stock

15

SPACER

35695-17C00

2
Out of stock

16

RELAY ASSY, TURNSIGNAL

38610C01D10J000

1

$49.35

In stock
