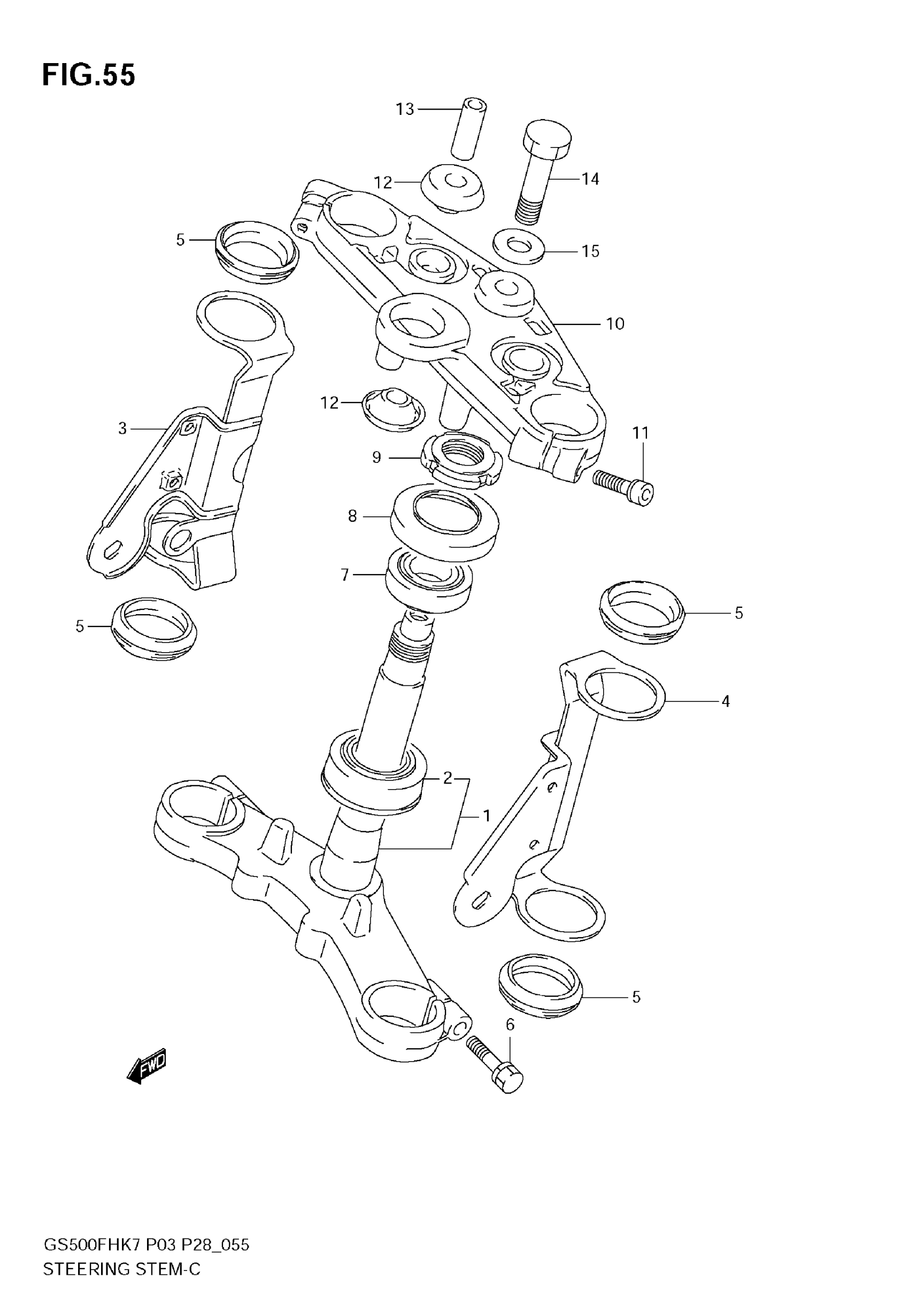

Suzuki GS500F (2009) STEERING STEM (GS500H) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 This part replaces 51410-01DD0.

51410-01D91

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$52.22

3

BRACKET, HEADLAMP RH

51530-0BE00-ENM

Unavailable

4

BRACKET, HEADLAMP LH

51540-0BE00-ENM

Unavailable

5

CUSHION, BRACKET

51553-34300

$4.26

6

BOLT, STEERING STEM

51352-01DD0

Unavailable

7

BEARING (25X47X15)

09265-25019

$61.43

8

DUST SEAL

51643-49002

$13.92

9

NUT

51631-28000

$19.60

10

HEAD, STEERING This part replaces 51311-0BE10.

51310-0BE10

Unavailable

11

BOLT This part replaces D7107-0830B.

07130-0830B

$5.27

12

CUSHION, STEM HEAD

56240-0BE00-E0Z

Unavailable

13

SPACER, STEM HEAD This part replaces 56243-0BE00.

56243-01D00

$10.62

14

BOLT, UPPER

51353-01DD0

$7.05

15

WASHER

51356-01DD0

Unavailable
