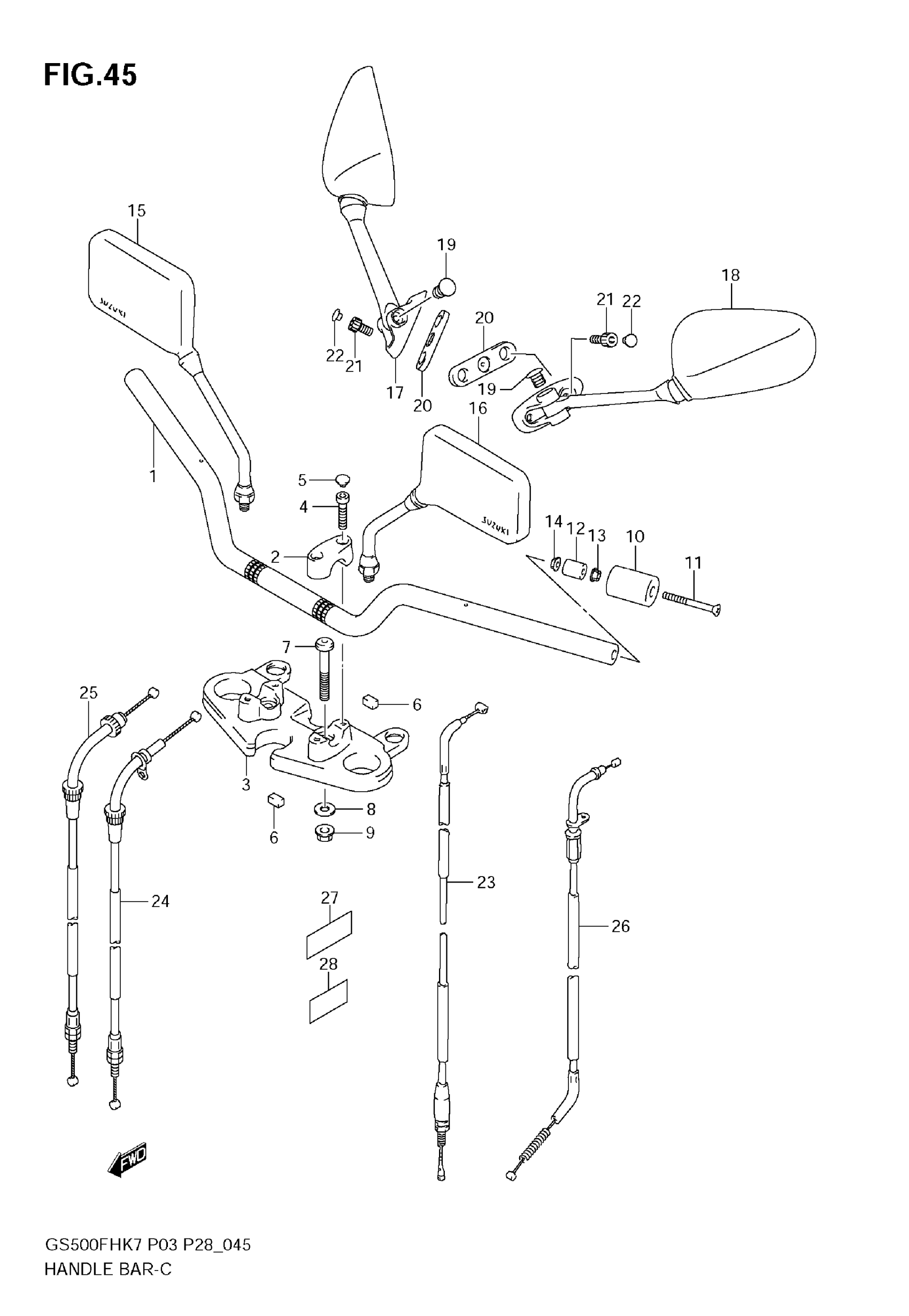

Suzuki GS500F (2009) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-01DC0-ETN

$60.43

2

CLAMP, UPPER (SILVER)

56211-0BE00

Unavailable

3

CLAMP, LOWER (SILVER)

56221-0BE00

Unavailable

4

BOLT

D7109-08307

$1.22

5

CAP

09250-06011

$2.53

6

CUSHION, HOLDER

56241-01D00

Unavailable

7

BOLT

07130-1065B

$6.22

8

WASHER

D8322-9110B

Unavailable

9

NUT

08319-3110A

$2.73

10

BALANCER SET,HA | Includes Item(s) 11 - 14 This part replaces 56200-01840.

56200-01841

$64.25

11

SCREW

02122-0685B

$3.42

12

EXPANDER

56272-44500

$4.16

13

NUT

08316-1008B

$2.65

14

NUT

09159-06024

$2.12

15

MIRROR ASSY, REAR VIEW RH | GS500H E28, E95

56500-03F31

$178.73

16

MIRROR ASSY, REAR VIEW LH | GS500H E28, E95

56600-03F31

Unavailable

17

MIRROR ASSY, REAR VIEW RH | GS500F

56500-01DA0

$209.35

18

MIRROR ASSY, REAR VIEW LH | GS500F

56600-01DA0

$209.35

19

CAP | GS500F This part replaces 09250-09001.

09250-09008

$1.56

20

CUSHION | GS500F

94576-24F00

$6.14

21

BOLT | GS500F

D7107-0616B

$0.06

22

CAP, BOLT | GS500F

09250-05009

$2.10

23

CABLE ASSY,CLUT This part replaces 58200-01DA0.

58200-01DA1

$21.03

24

CABLE ASSY, THROTTLE NO.1

58300-01DA0

$44.23

25

CABLE ASSY, THROTTLE NO.2

58300-01DB0

$41.08

26

CABLE, STARTER

58410-01D70

$47.21

27

PROTECTOR (30X70) This part replaces 94474C22D00J000.

94474-22D00

Unavailable

28

PROTECTOR, CABLE NO. 2

72895-0BE00

Unavailable
