2009 Suzuki GS500F Steering Stem Diagram

← All diagrams

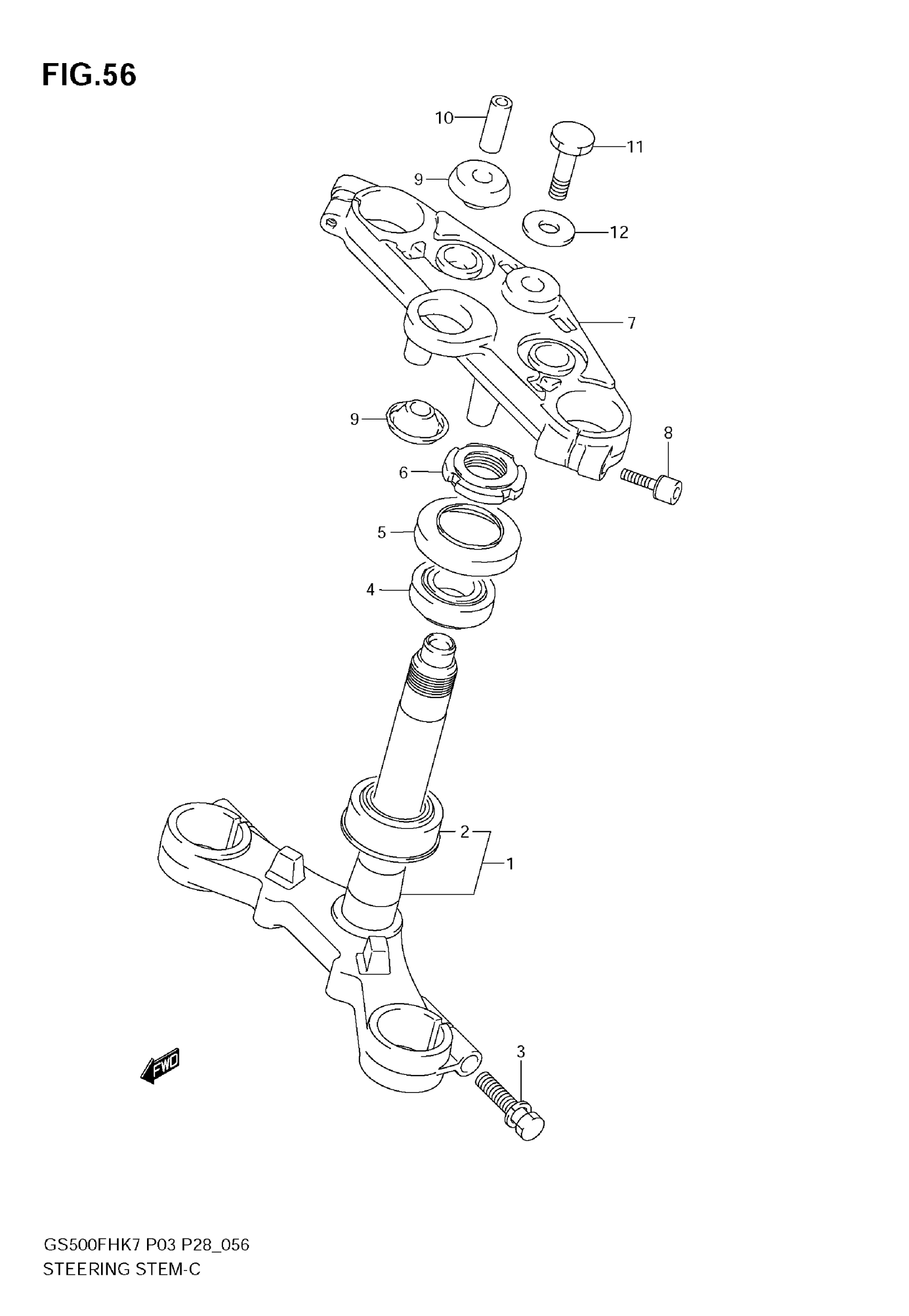

Find the part on the Steering Stem diagram for your 2009 Suzuki GS500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GS500F Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | Includes Item(s) 2 This part replaces 51410-01DD0.

51410-01D91

1
Out of stock

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

1
Out of stock

3

BOLT, STEERING STEM

51352-01DD0

2
Out of stock

4

BEARING (25X47X15)

09265-25019

1
Out of stock

5

DUST SEAL

51643-49002

1
Out of stock

6

NUT

51631-28000

1
Out of stock

7

HEAD, STEERING This part replaces 51311-0BE10.

51310-0BE10

1
Out of stock

8

BOLT This part replaces D7107-0830B.

07130-0830B

2
Out of stock

9

CUSHION, STEM HEAD

56240-0BE00-E0Z

4
Out of stock

10

SPACER, STEM HEAD This part replaces 56243-0BE00.

56243-01D00

2
Out of stock

11

BOLT, UPPER

51353-01DD0

1
Out of stock

12

WASHER

51356-01DD0

1
Out of stock
