2009 Suzuki GS500F Starter Clutch Diagram

← All diagrams

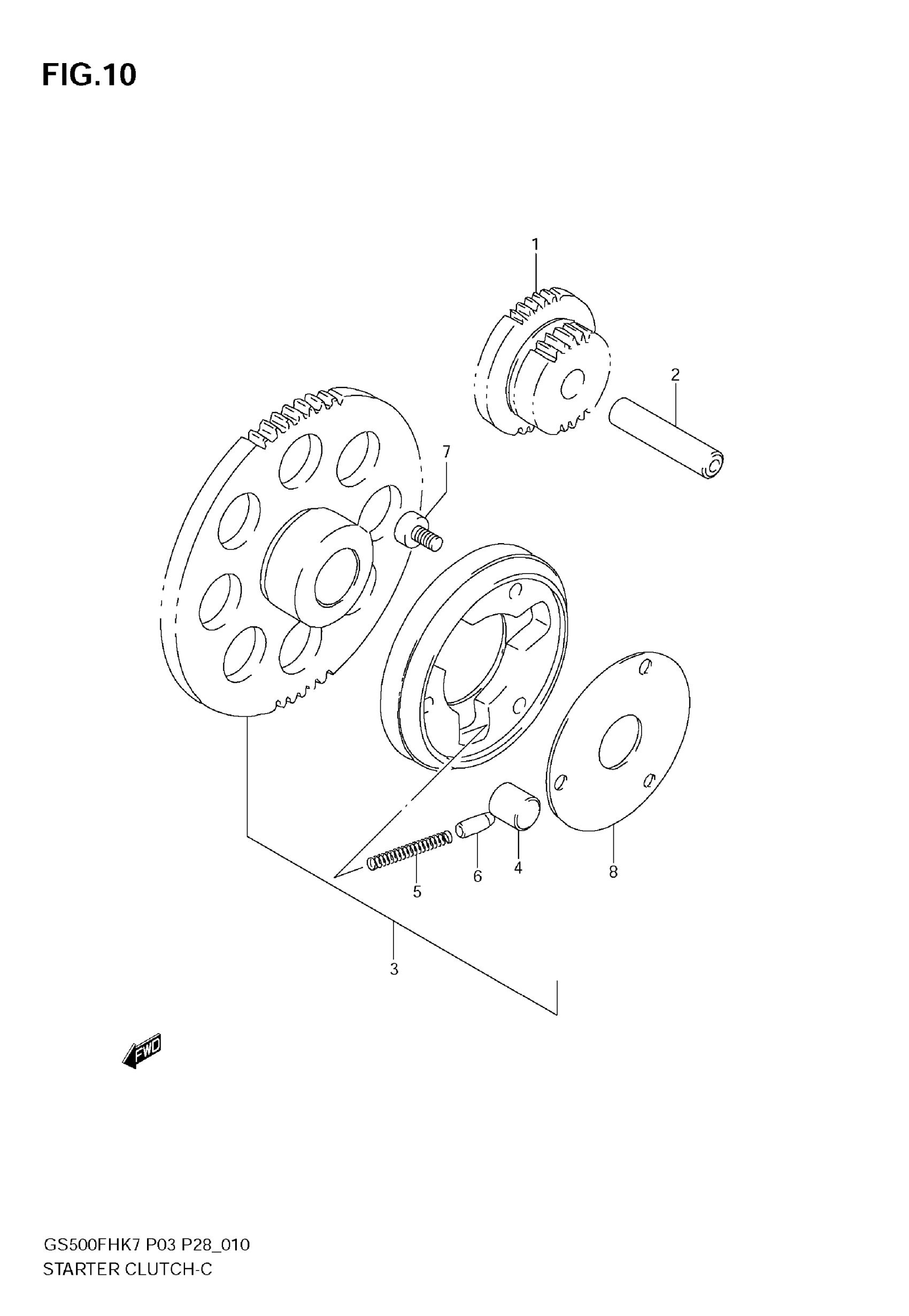

Find the part on the Starter Clutch diagram for your 2009 Suzuki GS500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GS500F Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE (NT:55/19)

12611-01D00

1
Out of stock

2

PIN

09206-13003

1
Out of stock

3

CLUTCH SET,STAR | Includes Item(s) 4 - 6 This part replaces 12600-44835.

12600-44836

1
Out of stock

4

ROLLER

09261-15001

3
Out of stock

5

SPRING

09440-04015

3
Out of stock

6

PIECE, PUSH

12633-31000

3
Out of stock

7

BOLT

09106-08095

3
Out of stock

8

SHIM

12649-45000

1
Out of stock
