2009 Suzuki GS500F Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2009 Suzuki GS500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

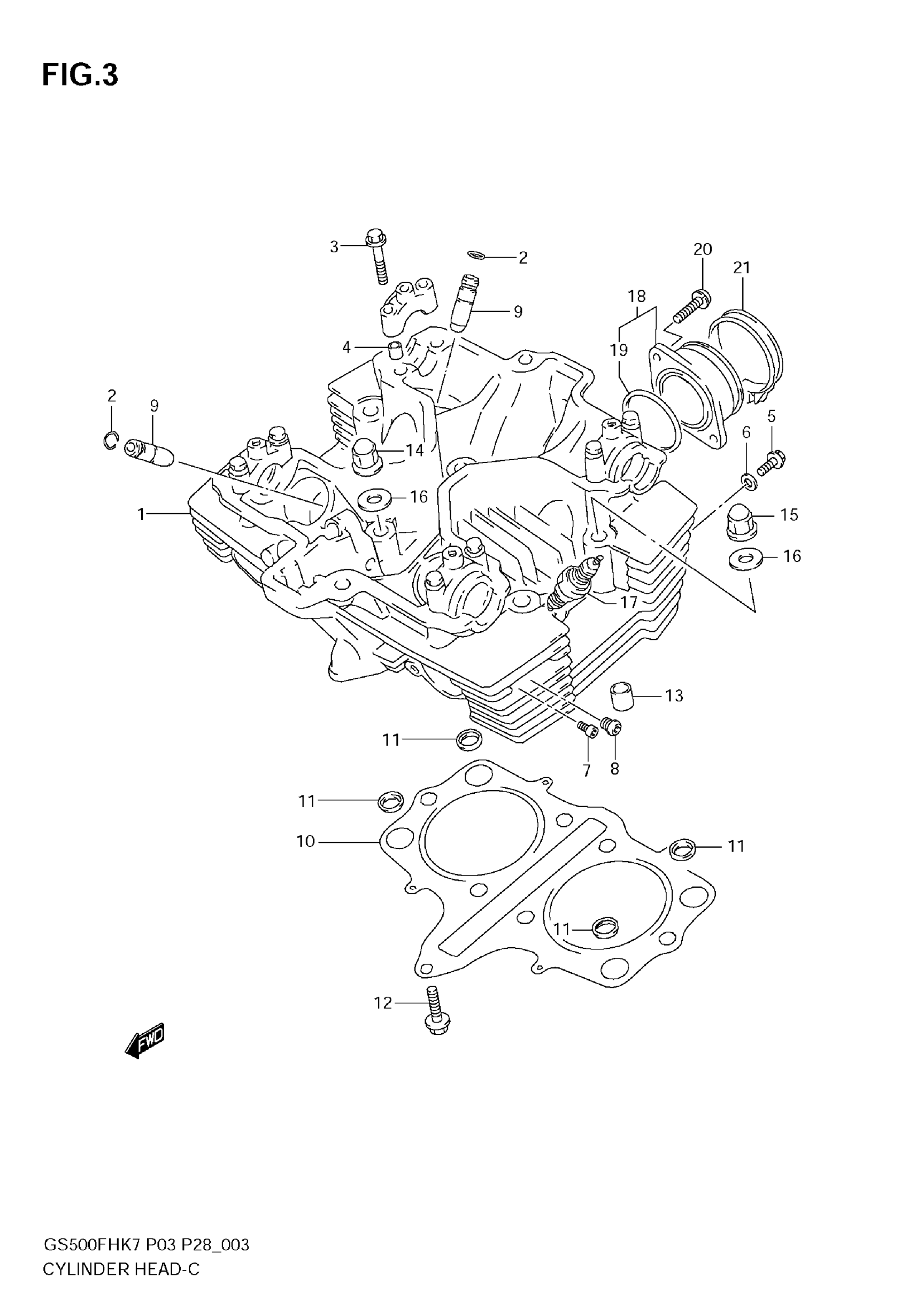

2009 Suzuki GS500F Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 8

11100-01D60

1
Out of stock

2

RING, VALVE GUIDE

09381-10003

4
Out of stock

3

BOLT (6X39)

09103-06026

8
Out of stock

4

PIN

09206-08001

8
Out of stock

5

BOLT, OIL GALLERY

01550-0612B

2
Out of stock

6

GASKET

09168-06023

2
Out of stock

7

PLUG, OIL GALLERY

09106-06075

4
Out of stock

8

PLUG, OIL GALLERY

09248-10010

4
Out of stock

9

GUIDE, VALVE (OS:0.3) | OPT

11115-45740

4
Out of stock

10

GASKET, CYLINDER HEAD

11141-01D11

1
Out of stock

11

O RING, CYLINDER HEAD

11143-06B00

4
Out of stock

12

BOLT

01550-0630B

1
Out of stock

13

PIN

04211-11169

2
Out of stock

14

NUT

09159-10069

4
Out of stock

15

NUT

09159-10026

4
Out of stock

16

.GASKET (10.2X20X2.3)

09168-10031

8
Out of stock

17

SPARK PLUG (NGK, DPR8EA-9)

09482-00334

2
Out of stock

17

SPARK PLUG (ND, X24EPR-U9)

09482-00335

2
Out of stock

18

PIPE, INTAKE | Includes Item(s) 19

13101-01D40

2
Out of stock

19

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

2
Out of stock

20

SCREW

02112-1616B

—
Out of stock

21

CLAMP

09402-54208

2
Out of stock
