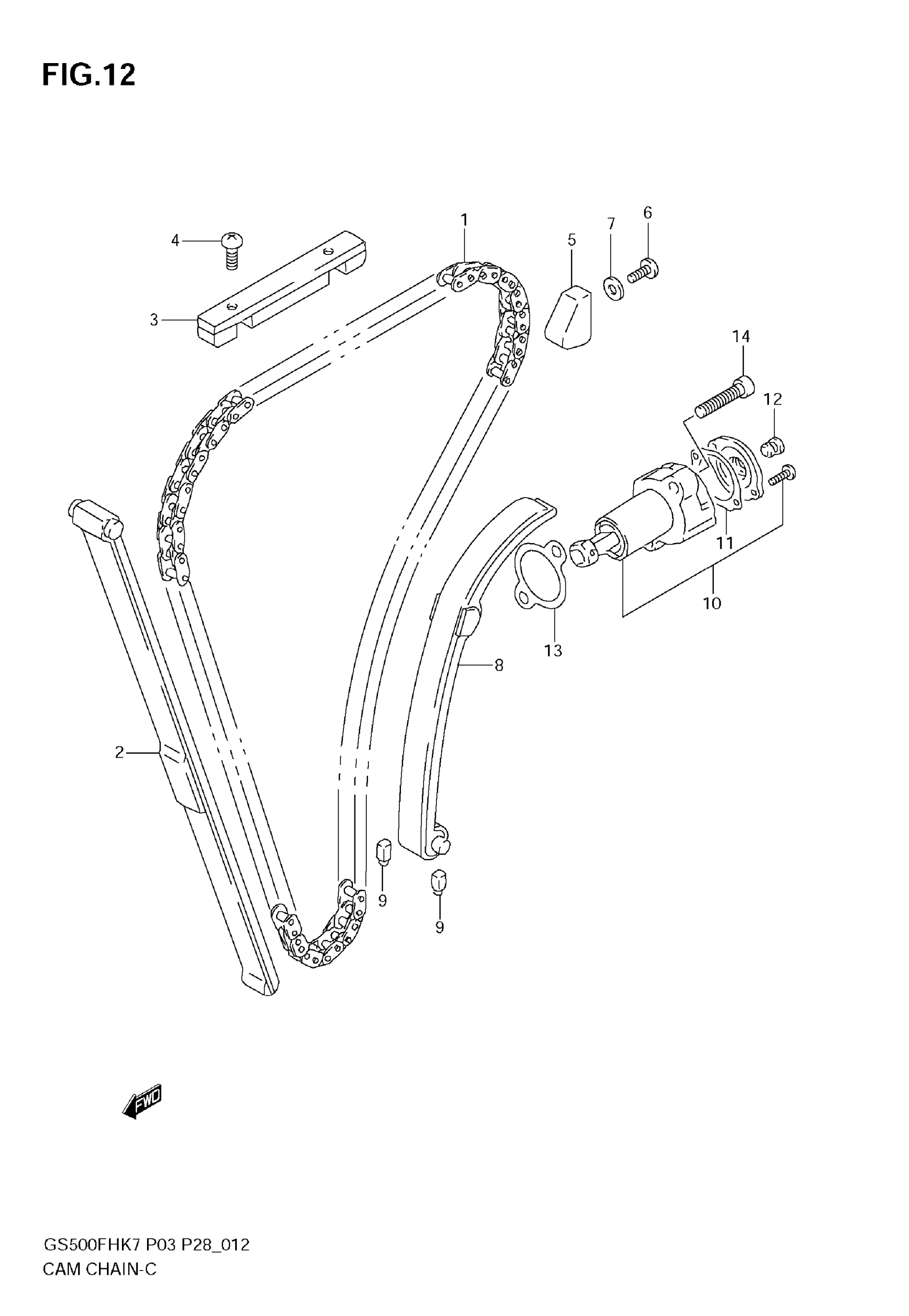

Suzuki GS500F (2009) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE (120L)

12760-45040

$166.47

2

GUIDE,CAM CHAIN This part replaces 12771-45052.

12771-45053

$45.15

3

GUIDE, CAM CHAIN NO.2

12782-49200

$49.73

4

SCREW

02112-0510B

$2.00

5

GUIDE, CAM CHAIN NO.3

12791-45040

$16.03

6

BOLT

01550-0612B

$2.38

7

WASHER

09168-06023

$2.01

8

TENSIONER,CAM C This part replaces 12810-01D00.

12810-01D01

$70.97

9

CUSHION

12814-44101

$7.45

10

ADJUSTER ASSY, TENSIONER | Includes Item(s) 11

12830-01D12

$131.75

11

GASKET

12838-38200-H17

$3.58

12

PLUG

12839-38200

$2.35

13

.GASKET,TENSIONER ADJUSTER

12837-24A10

$2.97

14

BOLT

07130-0625B

$2.80
