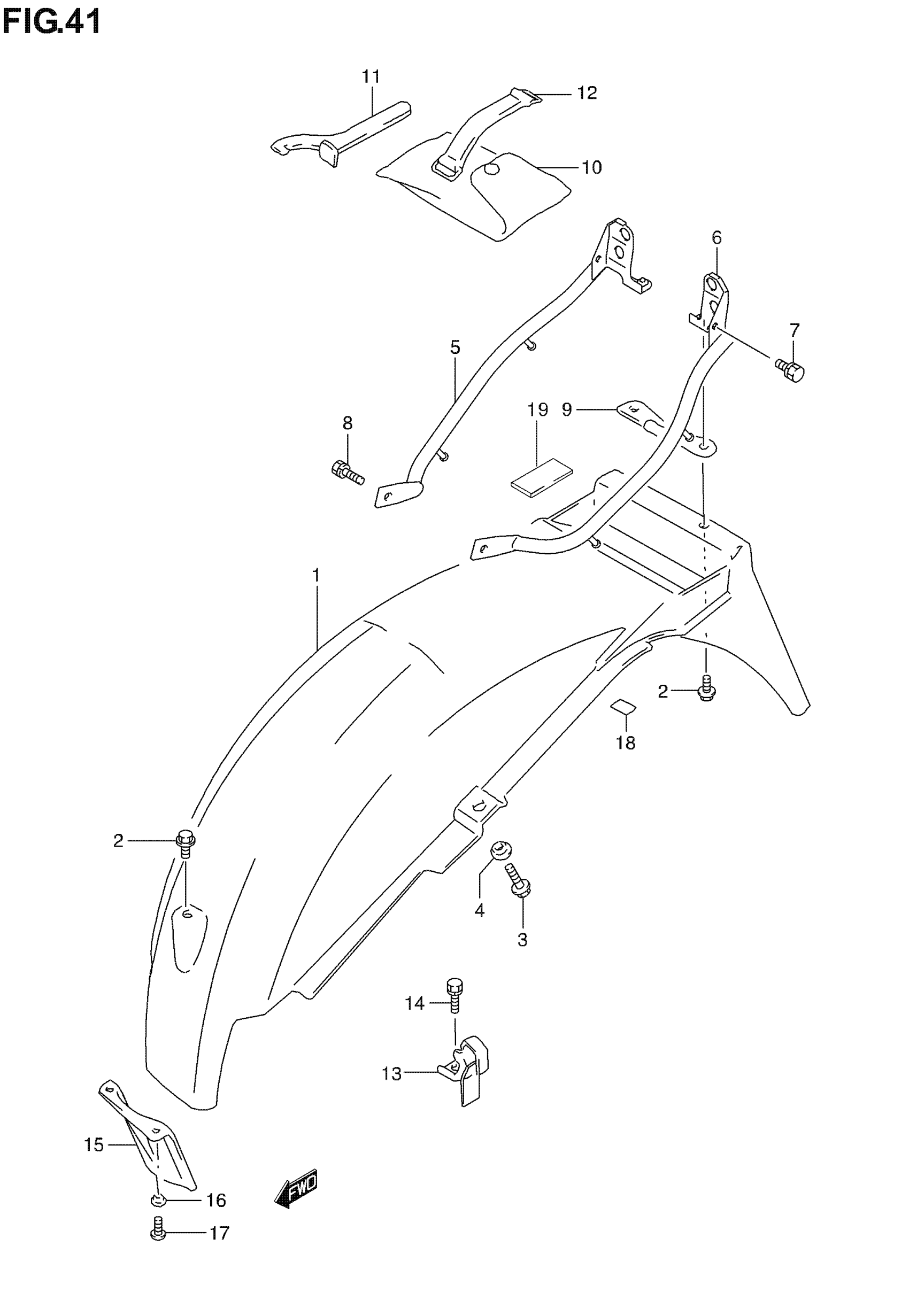

Suzuki GS500F (2006) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER This part replaces 63111-01D31-NE2.

63111-01D31-291

Unavailable

2

BOLT

09113-06001

$2.75

3

BOLT This part replaces D1557-06165.

D1557-0616B

$0.29

4

WASHER

09169-06037

$2.67

5

BRACE, REAR FENDER RH

63210-01DA0

Unavailable

6

BRACE, REAR FENDER LH

63220-01DA0

Unavailable

7

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.31

8

BOLT This part replaces 01550-08203.

01550-0820A

$2.25

9

PLATE, TOOL HOLDER

47425-01D00

$9.25

10

TOOL ASSY | Includes Item(s) 11 This part replaces 09800C99027JF00.

09800-21017

$83.27

11

CLAMP, WRENCH This part replaces 09822C00005JF00.

09822-00005

$13.87

12

BAND, TOOL

09280-70004

$3.52

13

HOLDER, HELMET

95720-01D00

Unavailable

14

BOLT This part replaces D1557-06165.

D1557-0616B

$0.29

15

MUD GUARD, REAR UNIT

63411C42A00J000

Unavailable

16

WASHER

09169-06010

$2.61

17

SCREW This part replaces D2116-06165.

D1507-0616B

$0.20

18

TAPE, REAR FENDER This part replaces 63115C06C00J000.

63115-06C00

Unavailable

19

CUSHION, TOOL HOLDER

33652-31F00

$3.22
