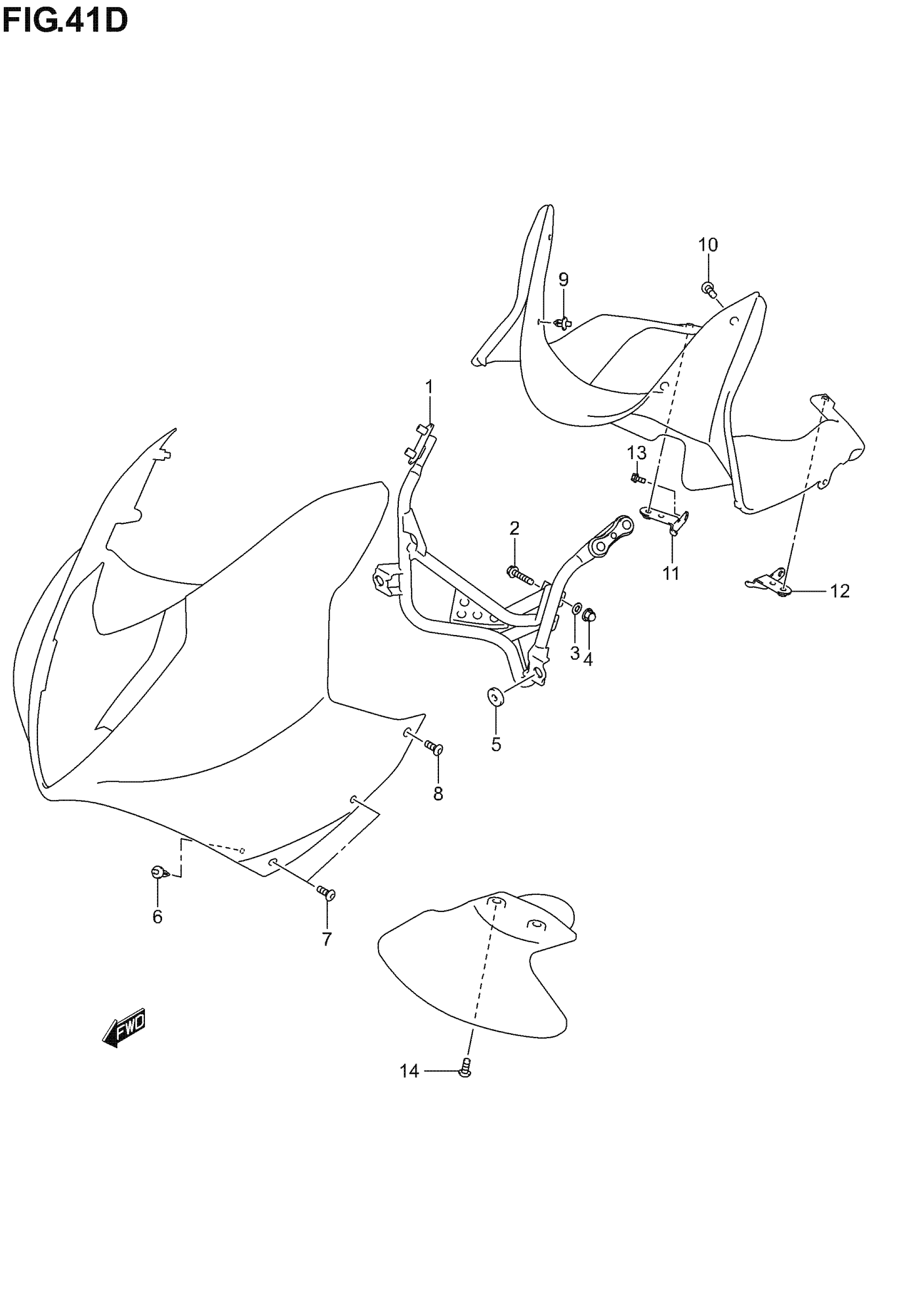

Suzuki GS500F (2006) BODY COWL INSTALLATION PARTS(GS500FK4/K5/K6) Diagram

#

Description

Price

1

BRACE, COWLING

94510-01D00-ENM

$162.37

2

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$2.80

3

WASHER This part replaces D8322-01085.

08322-0108A

$2.18

4

NUT This part replaces 08313-20083.

08313-2008B

$3.13

5

CUSHION

09320-08028

$2.80

6

CLIP, FRONT (BLACK)

09409-06314-5PK

$2.80

7

SCREW, FRONT SIDE

09139-05064

$2.56

8

SCREW, REAR

09139-05077

$2.97

9

CLIP, FRONT PANEL (BLACK)

09409-06314-5PK

$2.80

10

SCREW, FRONT PANEL

09132-05053

$2.26

11

BRACKET, UPPER RH

94420-01D00-E0N

$2.27

12

BRACKET, UPPER LH

94430-01D00-E0N

Unavailable

13

BOLT This part replaces D1557-06125.

D1557-0616B

$0.29

14

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66
