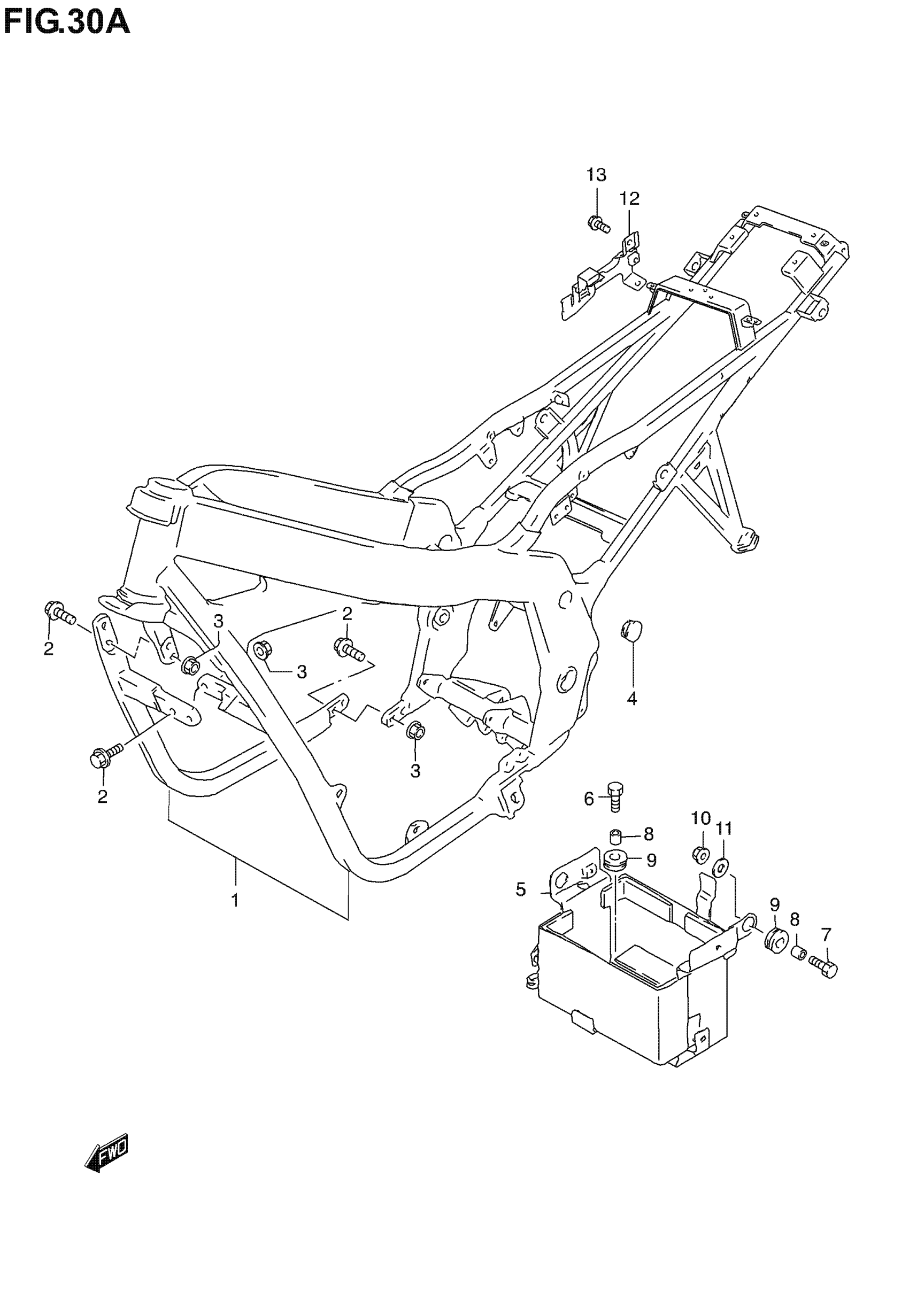

Find the part on the Frame diagram for your 2006 Suzuki GS500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GS500F Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME SET (BLACK) | GS500F

41100-01D90-ENM

1
Out of stock

2

6

$4.53

In stock

3

NUT This part replaces 08319-31103.

08319-3110A

6
Out of stock

4

CAP, BODY FRAME

43585-01D90

1

$7.77

In stock

5

HOLDER, BATTERY | E3, E28 This part replaces 41540-01D50.

41540-01D60

1
Out of stock

5

HOLDER, BATTERY | E33

41540-01D60

1
Out of stock

6

2

$2.68

In stock

7

2

$2.35

In stock

8

SPACER (6.2X9X7.5)

09180-06038

4

$2.16

In stock

9

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

4
Out of stock

10

2

$2.10

In stock

11

WASHER

D8322-01065

2
Out of stock

12

HOLDER, ELECTRIC PARTS

47410-01D11

1
Out of stock

13

1

$0.32

In stock
