1996 Suzuki GS500ET Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1996 Suzuki GS500ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

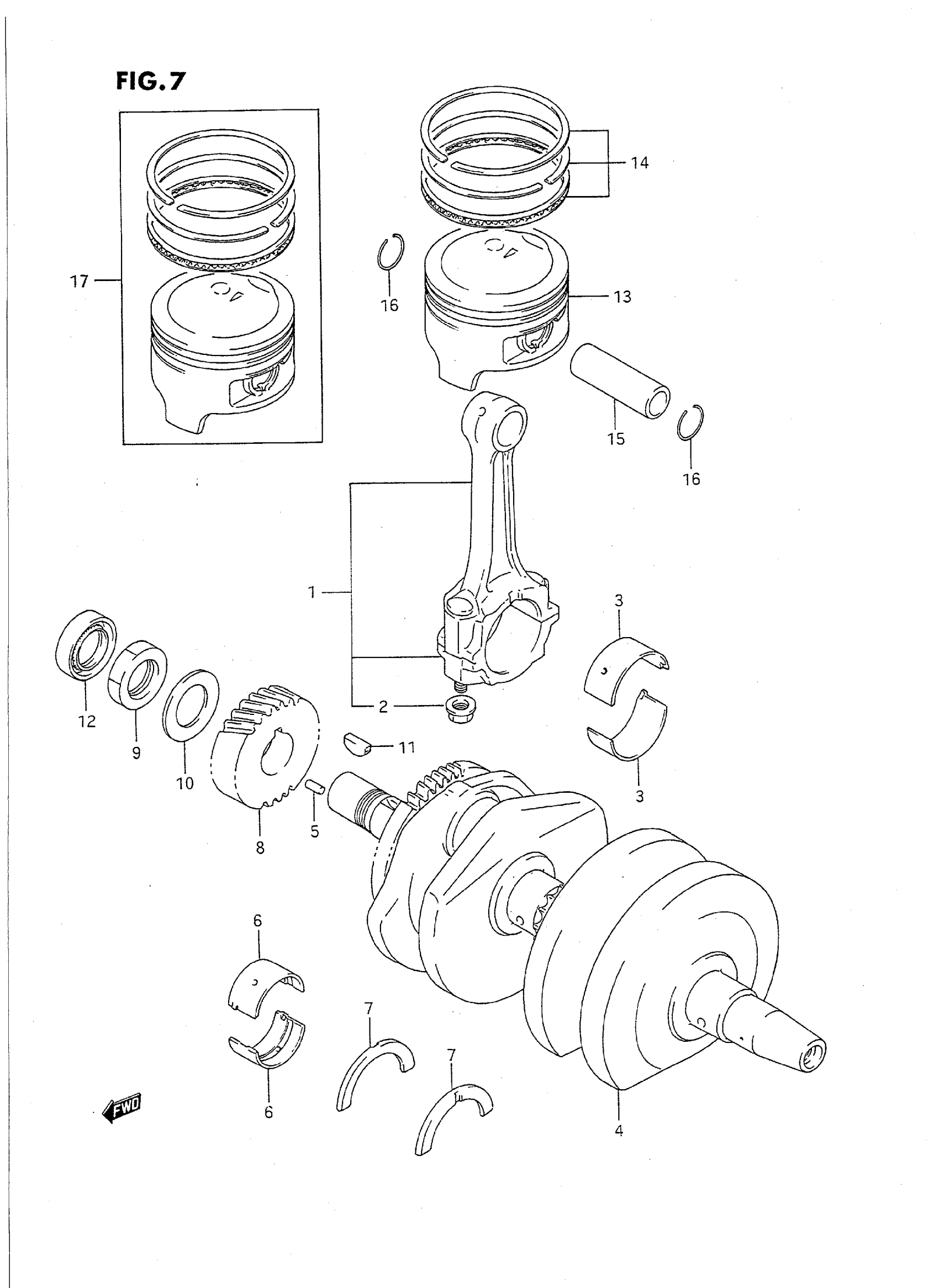

1996 Suzuki GS500ET Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD ASSY, CONNECTING | Includes Item(s) 2 This part replaces 12160-44100.

12160-44101

2
Out of stock

2

NUT

09159-08033

4
Out of stock

3

BEARING, CRANK PIN (GREEN)

12164-01D01-0A0

4
Out of stock

3

BEARING, CRANK PIN (BLACK)

12164-01D01-0B0

4
Out of stock

3

BEARING, CRANK PIN (BROWN)

12164-01D01-0C0

4
Out of stock

3

BEARING, CRANK PIN (YELLOW)

12164-01D01-0D0

4
Out of stock

3

BEARING, CRANK PIN (US:0.25) | OPT

12164-44100-025

4
Out of stock

3

BEARING, CRANK PIN (US:0.5) | OPT

12164-44100-050

4
Out of stock

4

CRANKSHAFT | MODEL K/L This part replaces 12220-01D00.

12220-01D02

1
Out of stock

4

CRANKSHAFT | MODEL M/N/P This part replaces 12220-01D01.

12220-01D02

1
Out of stock

4

CRANKSHAFT | MODEL R/S/T; Includes Item(s) 5

12220-01D02

1
Out of stock

5

PIN

09202-03016

1
Out of stock

6

BEARING, CRANKSHAFT (GREEN)

12229-01D01-0A0

8
Out of stock

6

BEARING, CRANKSHAFT (BLACK)

12229-01D01-0B0

8
Out of stock

6

BEARING, CRANKSHAFT (BROWN)

12229-01D01-0C0

8
Out of stock

6

BEARING, CRANKSHAFT (YELLOW)

12229-01D01-0D0

8
Out of stock

6

BEARING, CRANKSHAFT (US:0.25) | OPT

12229-44100-025

8
Out of stock

6

BEARING, CRANKSHAFT (US:0.5) | OPT

12229-44100-050

8
Out of stock

7

BEARING, THRUST

12228-44106

2
Out of stock

8

GEAR, PRIMARY DRIVE (NT:28)

21111-44100

1
Out of stock

9

NUT

09140-24007

1
Out of stock

10

WASHER

09164-25001

1
Out of stock

11

KEY

08341-31059

1
Out of stock

12

OIL SEAL, RH (22X40X8)

09283-22015

1
Out of stock

13

PISTON | MODEL K/L/M/N/P This part replaces 12111-01D00-0F0.

12111-01D01-0F0

2
Out of stock

13

PISTON | MODEL R/S/T

12111-01D01-0F0

2
Out of stock

14

RING SET, PISTON

12140-01D20

2
Out of stock

15

PIN, PISTON

12151-45501

2
Out of stock

16

CIRCLIP

09381-18002

4
Out of stock

17

PISTON SET (OS:0.5) | OPT

12100-01D00-050

2
Out of stock

17

PISTON SET (OS:1.0) | OPT

12100-01D00-100

2
Out of stock
