1996 Suzuki GS500ET CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 1996 Suzuki GS500ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

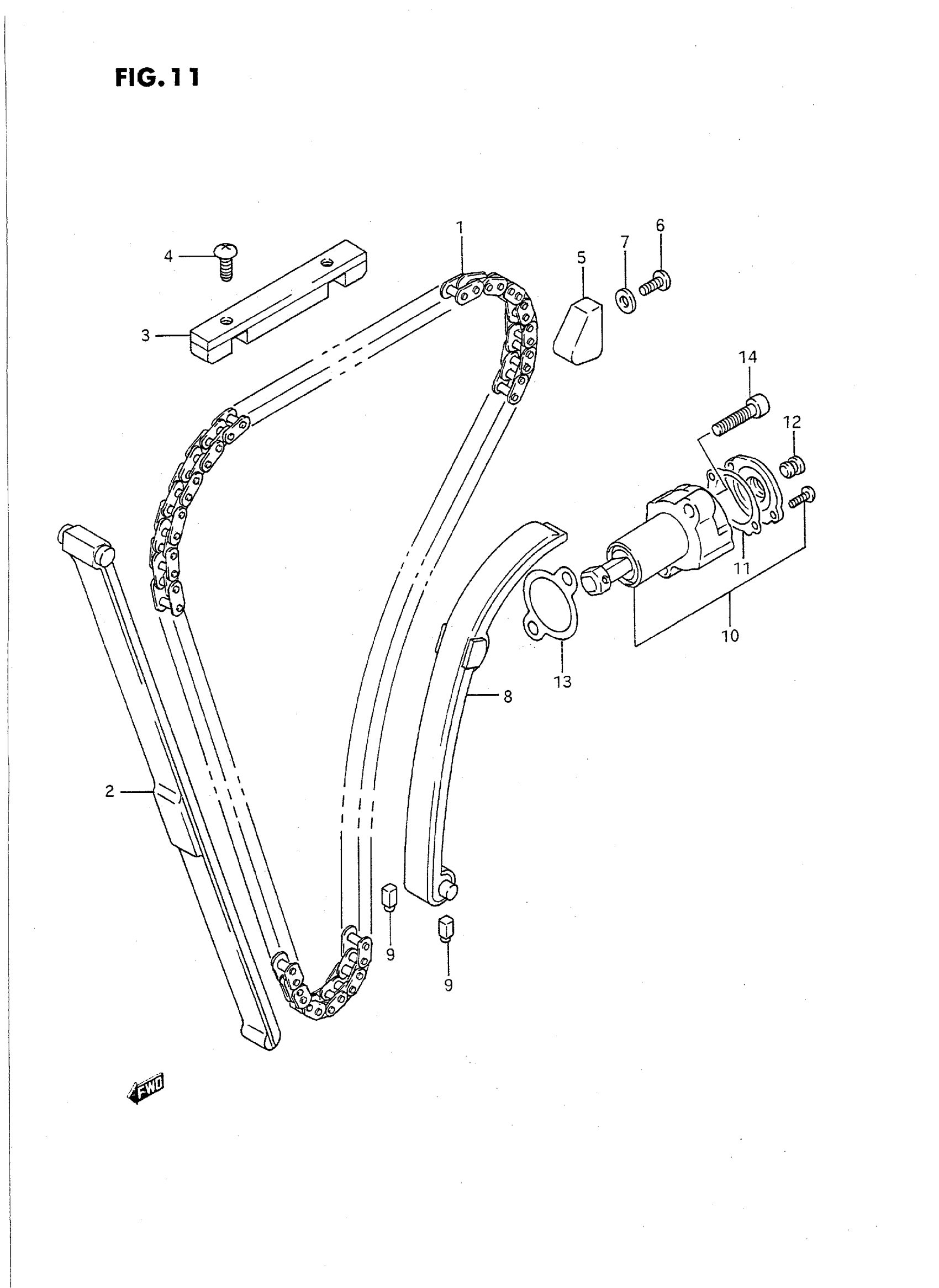

1996 Suzuki GS500ET CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE (120L)

12760-45040

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-45052.

12771-45053

1
Out of stock

3

GUIDE, CAM CHAIN NO.2

12782-49200

1
Out of stock

4

SCREW | MODEL K/L/M/N/P

02112-05107

2
Out of stock

4

SCREW, THROTTLE | MODEL R/S/T This part replaces 02112-05103.

02112-0510A

2
Out of stock

5

GUIDE, CAM CHAIN NO.3

12791-45040

1
Out of stock

6

BOLT, CLAMP | MODEL K/L/M/N/P This part replaces 01517-06125.

01550-0612A

2
Out of stock

6

BOLT, CLAMP | MODEL R/S/T This part replaces 01550-06123.

01550-0612A

2
Out of stock

7

WASHER

09168-06023

2
Out of stock

8

TENSIONER,CAM C This part replaces 12810-01D00.

12810-01D01

1
Out of stock

9

CUSHION

12814-44101

2
Out of stock

10

ADJUSTER ASSY, TENSIONER | MODEL K/L This part replaces 12830-01D01.

12830-01D12

1
Out of stock

10

ADJUSTER ASSY, TENSIONER | MODEL M/N/P/R/S/T; Includes Item(s) 11 - 11 This part replaces 12830-01D11.

12830-01D12

1
Out of stock

11

GASKET | MODEL K/L/M/N This part replaces 12838-38200.

12838-38200-H17

1
Out of stock

11

GASKET | MODEL P/R/S/T

12838-38200-H17

1
Out of stock

12

PLUG

12839-38200

1
Out of stock

13

.GASKET,TENSIONER ADJUSTER

12837-24A10

1
Out of stock

14

BOLT | MODEL K/L/M/N/P This part replaces 07110-06255.

07130-0625B

2
Out of stock

14

BOLT | MODEL R/S/T This part replaces 07130-06253.

07130-0625B

2
Out of stock
