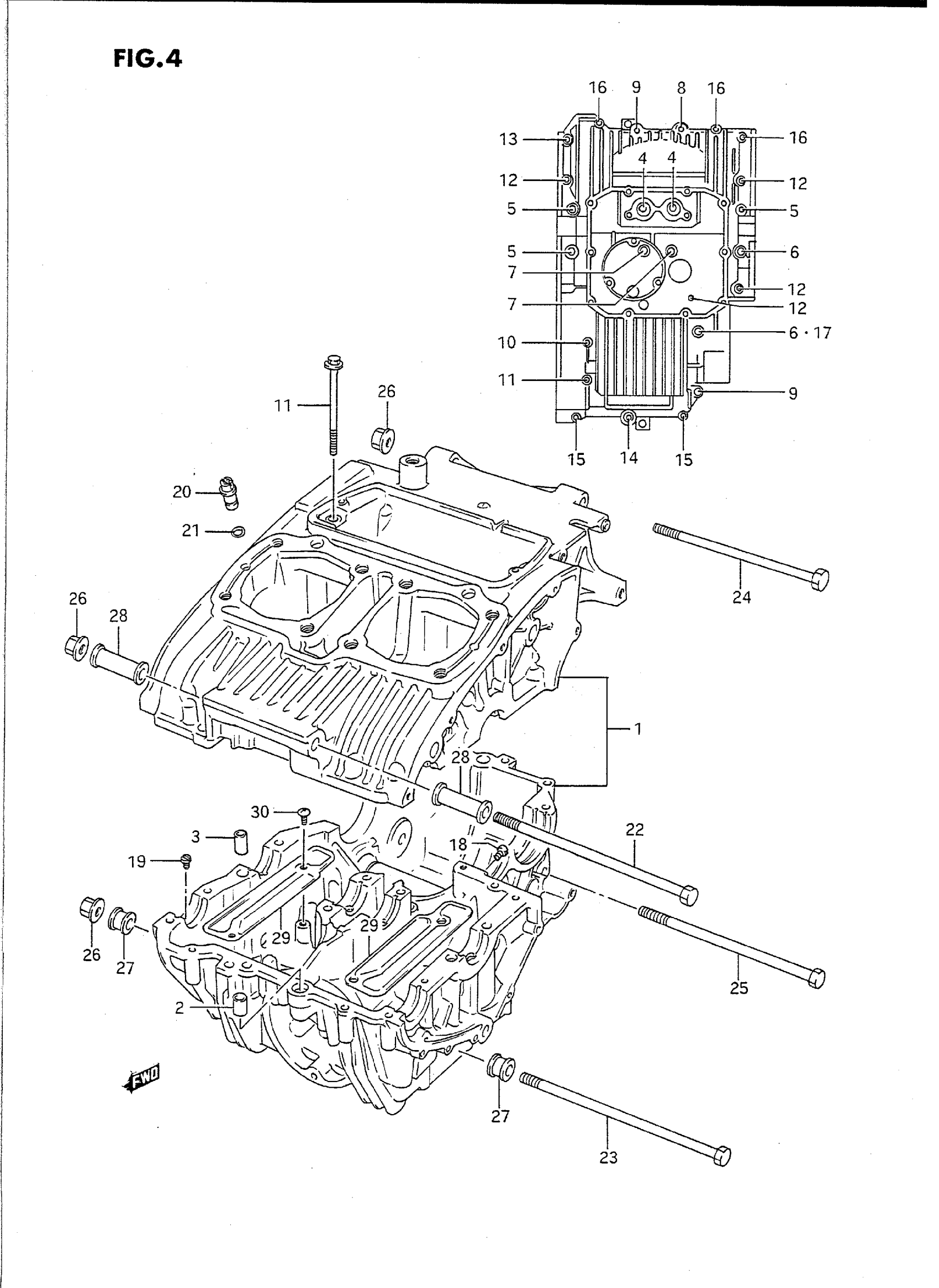

Suzuki GS500ET (1996) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 21

11300-44881

Unavailable

2

PIN

09206-13004

$2.44

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.85

4

BOLT This part replaces 07130-08703.

07130-0870B

$5.83

5

BOLT (8X125)

09103-08182

$6.22

6

BOLT (8X110) | MODEL K/L/M/N/P/R This part replaces 09103-08024.

09103-08134

$3.70

6

BOLT (8X110) | MODEL S/T

09103-08134

$3.70

7

BOLT (8X100) | MODEL K/L/M/N/P/R

09103-08070

$5.09

7

BOLT (8X100) | MODEL S/T

09103-08230

Unavailable

8

BOLT | MODEL K/L/M/N/P This part replaces 01517-08655.

01550-0865A

$3.21

8

BOLT | MODEL R/S/T This part replaces 01550-08653.

01550-0865A

$3.21

9

BOLT | MODEL K/L/M/N/P This part replaces 01517-08455.

01550-0845A

$2.88

9

BOLT | MODEL R/S/T This part replaces 01550-08453.

01550-0845A

$2.88

10

BOLT (6X125)

09103-06033

$3.52

11

BOLT (6X105)

09103-06067

$3.00

12

BOLT | MODEL K/L/M/N/P This part replaces 01517-06905.

01550-0690B

Unavailable

12

BOLT | MODEL R/S/T This part replaces 01550-06903.

01550-0690B

Unavailable

13

BOLT | MODEL K/L/M/N/P This part replaces 01517-06705.

01550-0670B

$4.62

13

BOLT | MODEL R/S/T This part replaces 01550-06703.

01550-0670B

$4.62

14

BOLT (6X65) | MODEL K/L/M/N/P

01517-06655

Unavailable

14

BOLT | MODEL R/S/T This part replaces 01550-06653.

01550-0665A

$2.90

15

BOLT (6X50)

01550-06507

$3.70

16

BOLT | MODEL K/L/M/N/P This part replaces 01517-06455.

01550-0645A

$2.42

16

BOLT | MODEL R/S/T This part replaces 01550-06453.

01550-0645A

$2.42

17

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

18

JET,AIR

09493-22010

Unavailable

19

JET, OIL GALY. BAL. SHAFT

09493-32002

$18.00

20

JET, OIL GALLERY CYLINDER

09493-24008

Unavailable

21

O RING

09280-03003

$1.73

22

BOLT (10X255)

09103-10137

$15.42

23

BOLT (10X240)

09103-10212

Unavailable

24

BOLT (10X170)

09103-10127

$21.60

25

BOLT (10X160) | MODEL K/L/M/N/P/R This part replaces 09103-10150.

09103-10278

$13.48

25

BOLT (10X160) | MODEL S/T

09103-10278

$13.48

26

NUT | MODEL K

08319-31107

$2.73

26

NUT | MODEL L/M/N/P/R/S/T

09159-10078

$2.80

27

SPACER (L:16.8) | MODEL K This part replaces 11610-01D00.

11611-01D10

$11.10

27

SPACER (L:16.8) | MODEL L/M/N/P/R/S/T

11611-01D10

$11.10

28

SPACER (L:65)

11610-45410

Unavailable

29

PLATE, OIL SEPARATOR

11521-44100

$2.80

30

SCREW This part replaces 02112-06123.

02112-0612A

$1.43
