2000 Suzuki GS500E Fuel Tank Diagram

← All diagrams

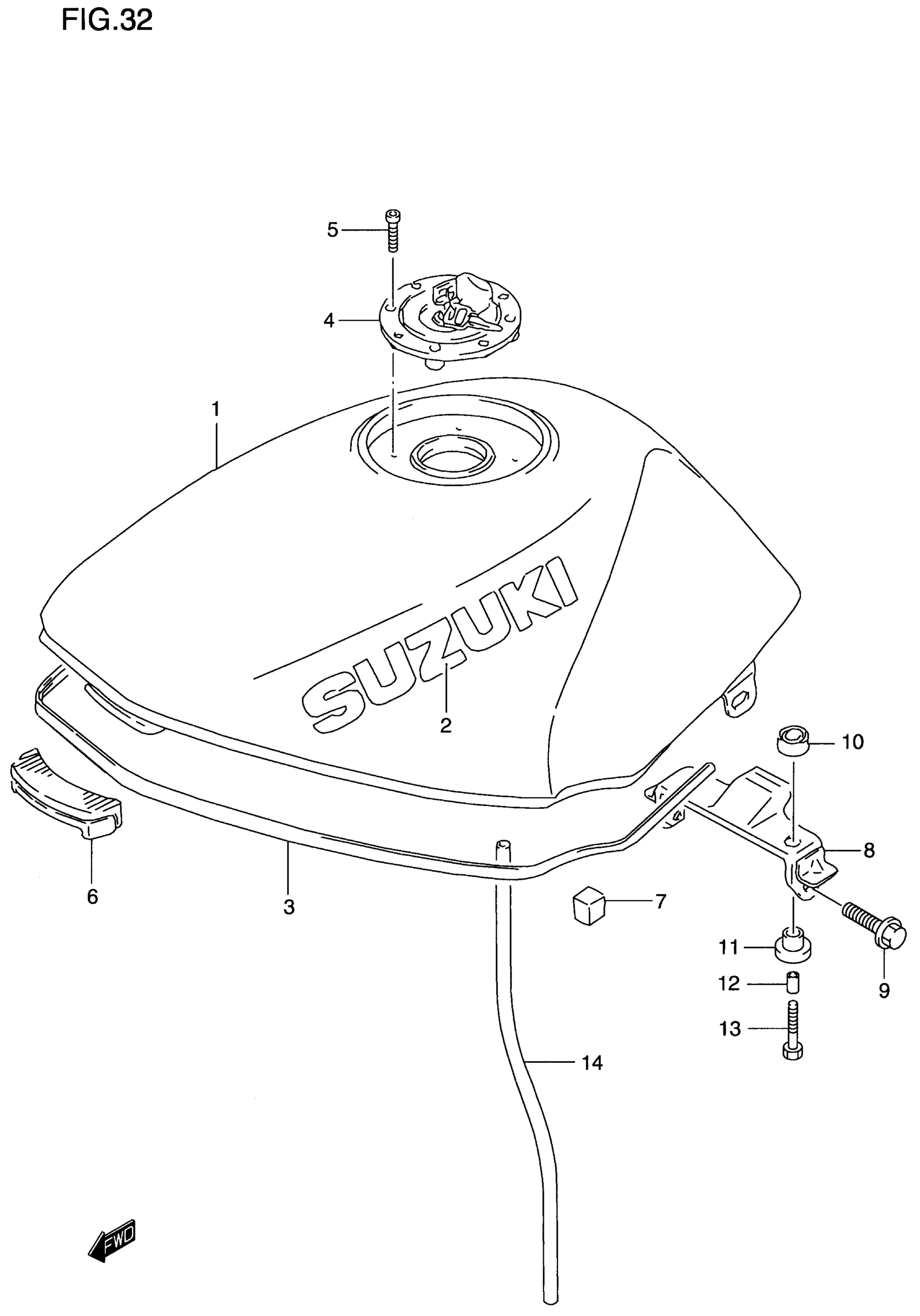

Find the part on the Fuel Tank diagram for your 2000 Suzuki GS500E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki GS500E Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 44100-02DC0-1LF.

44100-02DC1-1LF

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 44100-02DC0-33J.

44100-02DC1-33J

1
Out of stock

1

TANK ASSY, FUEL (BLUE) | E33

44100-02DE0-1LF

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 2 - 3 This part replaces 44100-02DE0-33J.

44110-01D22-YD8

1
Out of stock

2

EMBLEM | MODEL T This part replaces 68111-12C00-13L.

68111-12C30-13L

2
Out of stock

3

MOLDING, FUEL TANK

68241-04X50-00B

1
Out of stock

4

CAP SET,FUEL TA This part replaces 44201-01832.

44201-01833

1
Out of stock

4

CAP SET, FUEL | E33

44201-01842

1
Out of stock

5

BOLT

09106-05017

4
Out of stock

6

CUSHION, FRONT

44511-34A00

1
Out of stock

7

CUSHION, SIDE

44545-48B10

2
Out of stock

8

BRACKET, REAR This part replaces 44550-01D00.

44550-01D01

1
Out of stock

9

BOLT This part replaces 01550-08403.

01550-0840A

2
Out of stock

10

CUSHION, REAR UPPER

09320-14017

2
Out of stock

11

CUSHION, REAR LOWER

09320-10038

2
Out of stock

12

SPACER

09180-06271

2
Out of stock

13

BOLT

09116-06172

2
Out of stock

14

HOSE,WATER DRAI This part replaces 44423-01D00.

44423-01D01

1
Out of stock
