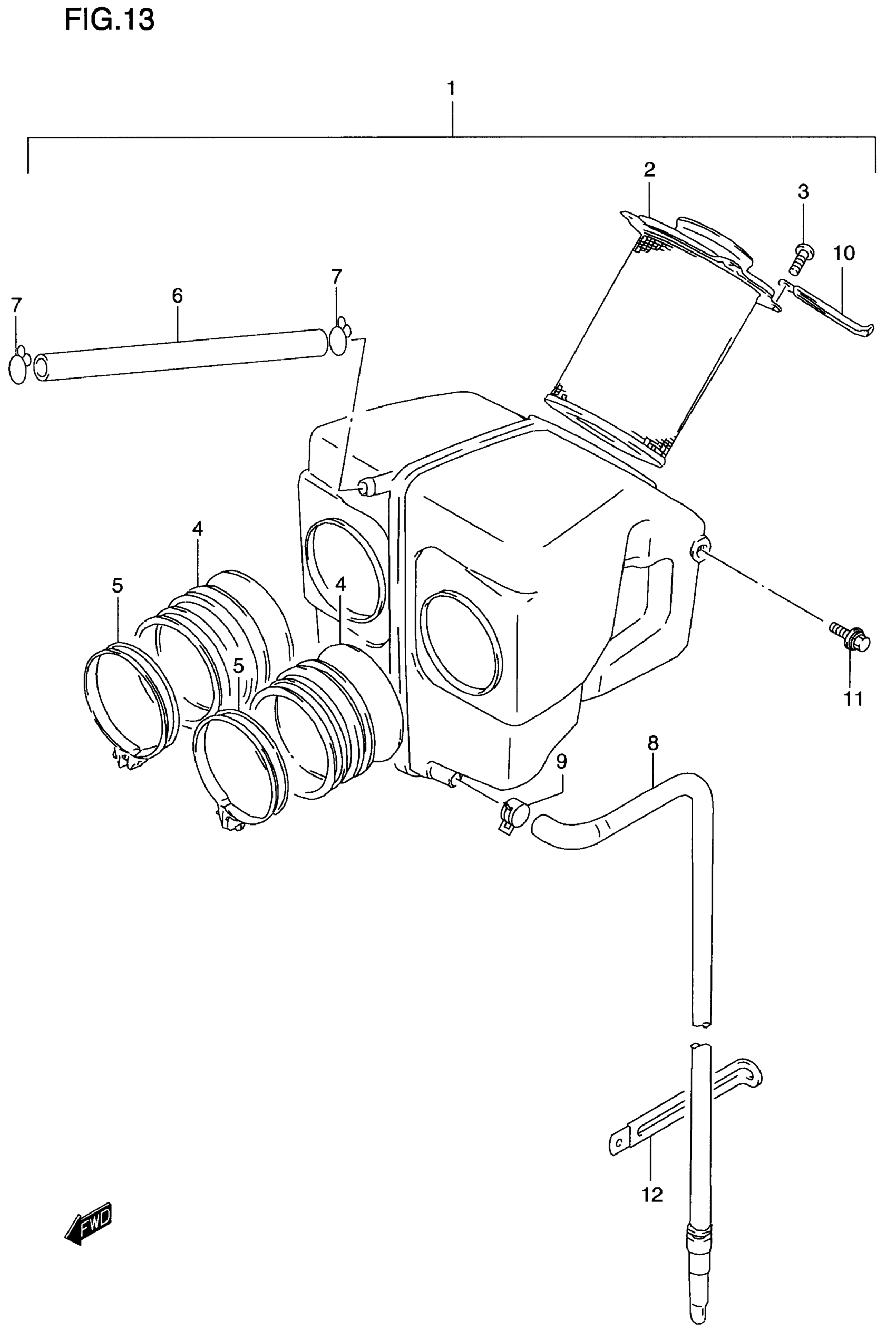

Suzuki GS500E (2000) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 10 This part replaces 13700-01D01.

13700-01D02

Unavailable

2

FILTER ASSY

13780-01D00

$37.80

3

SCREW

02142-05087

$1.48

4

TUBE,OUTLET | MODEL V/W This part replaces 13881-01D00.

13881-01D02

$16.19

4

TUBE,OUTLET | MODEL X/Y This part replaces 13881-01D01.

13881-01D02

$16.19

5

CLAMP

09402-68208

$5.28

6

HOSE This part replaces 09352-11153-600.

09352-11154-600

$12.12

7

CLIP

09401-14301

$2.17

8

TUBE,DRAIN This part replaces 13870-21458.

13870-21459

$26.73

9

CLIP

09401-13409

$2.20

10

CLAMP This part replaces 09404-06413.

09404-06039

$1.79

11

SCREW This part replaces 02112-76163.

02112-7616A

$2.21

12

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.81
