1993 Suzuki GS500E Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 1993 Suzuki GS500E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

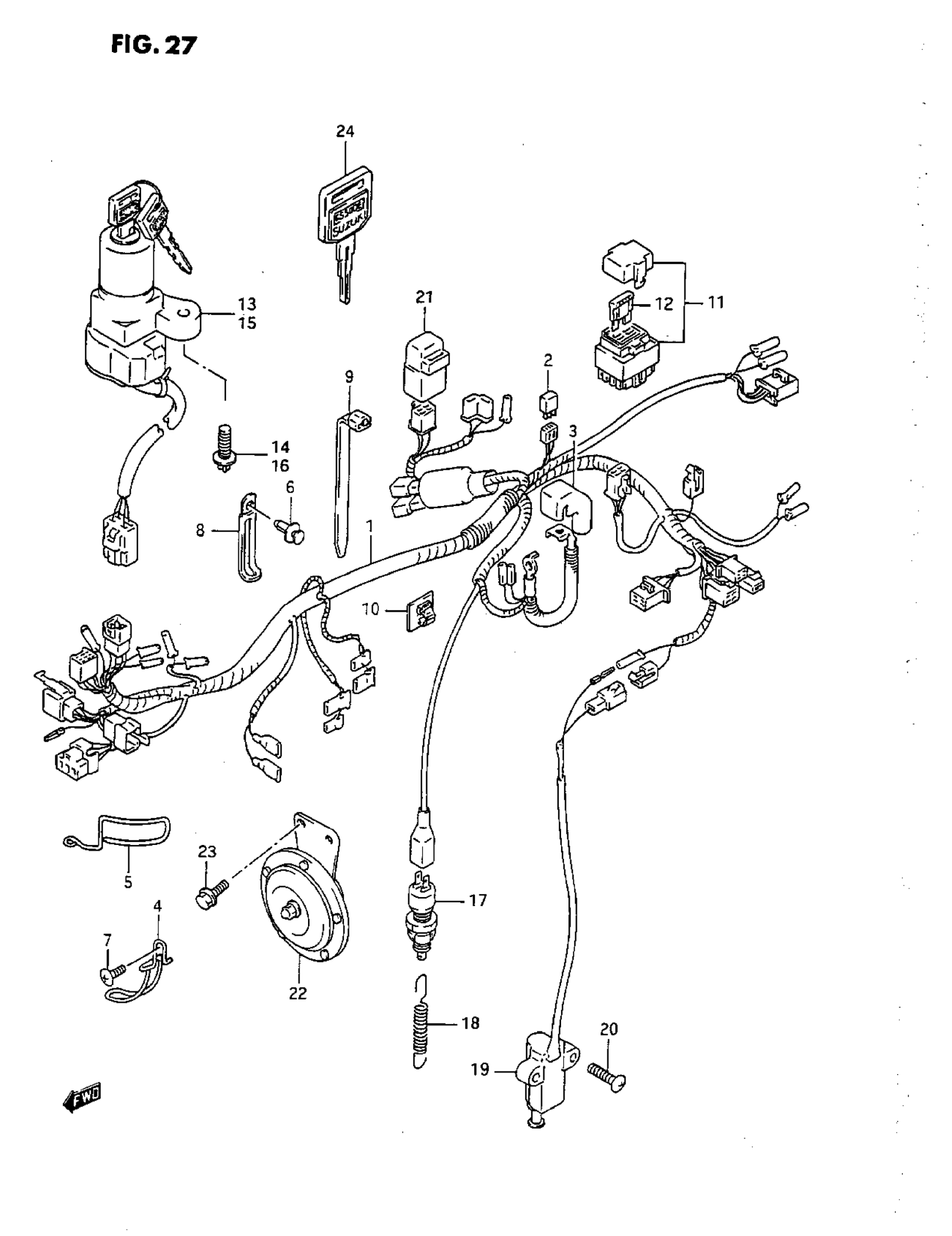

1993 Suzuki GS500E Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | MODEL K

36610-01D00

1
Out of stock

1

HARNESS, WIRING | MODEL L/M/N

36610-01D10

1
Out of stock

1

HARNESS, WIRING | MODEL P/R This part replaces 36610-01D30.

36610-01D31

1
Out of stock

2

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

3

CAP, BATTERY (+) TERMINAL | MODEL K This part replaces 33624-27A00.

33624-43500

1
Out of stock

4

PROTECTOR, WIRING HARNESS

36611-01D00

1
Out of stock

5

PROTECTOR, WIRING HARNESS

36611-01D10

1
Out of stock

6

CLIP This part replaces 09409-07305.

09409-07305-5PK

2
Out of stock

7

SCREW

02142-06127

1
Out of stock

8

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

2
Out of stock

8

CLAMP This part replaces 09404-06413.

09404-06039

2
Out of stock

8

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

2
Out of stock

8

CLAMP This part replaces 09404-08413.

09404-08420

1
Out of stock

9

CLAMP (L:125)

09407-14403

2
Out of stock

9

CLAMP (L:165)

09407-18402

10
Out of stock

10

CLAMP

09403-06310

4
Out of stock

12

FUSE (20A) | MODEL K

09481-20101

1

$2.31

In stock

13

LOCK ASSY, STEERING | MODEL K/L This part replaces 37100-01D00.

37100-26D03

1
Out of stock

14

BOLT | MODEL K/L

09139-06026

2
Out of stock

15

LOCK ASSY, STEERING | MODEL M This part replaces 37100-01D01.

37100-26D03

1
Out of stock

15

LOCK ASSY, STEERING | MODEL N This part replaces 37100-01D02.

37100-26D03

1
Out of stock

15

LOCK ASSY, STEERING | MODEL P This part replaces 37100-01D20.

37100-26D03

1
Out of stock

15

LOCK ASSY, STEERING | MODEL R This part replaces 37100-26D01.

37100-26D03

1
Out of stock

16

BOLT | MODEL M/N/P

09139-06026

2
Out of stock

17

SWITCH ASSY, STOP LAMP

37740-24A00

1
Out of stock

18

SPRING

09443-06042

1
Out of stock

19

SWITCH ASSY, SIDE STAND

37840-01D01

1
Out of stock

20

SCREW | MODEL K/L/M/N/P

02112-36305

2
Out of stock

20

BOLT | MODEL R This part replaces 01550-06303.

01550-0630A

2
Out of stock

21

RELAY ASSY, SIDE STAND

38740-24X50

1
Out of stock

22

HORN ASSY

38500-01D10

1
Out of stock

23

BOLT This part replaces 01517-06128.

01550-06127

2
Out of stock

24

KEY, BLANK | OPT, MODEL K/L/M/N This part replaces 37146-01D00.

37146-26D10

1
Out of stock

24

KEY, BLANK | OPT, MODEL P This part replaces 37146-03A80.

37146-26D10

1
Out of stock

24

KEY, BLANK | OPT, MODEL R

37146-26D10

1
Out of stock
