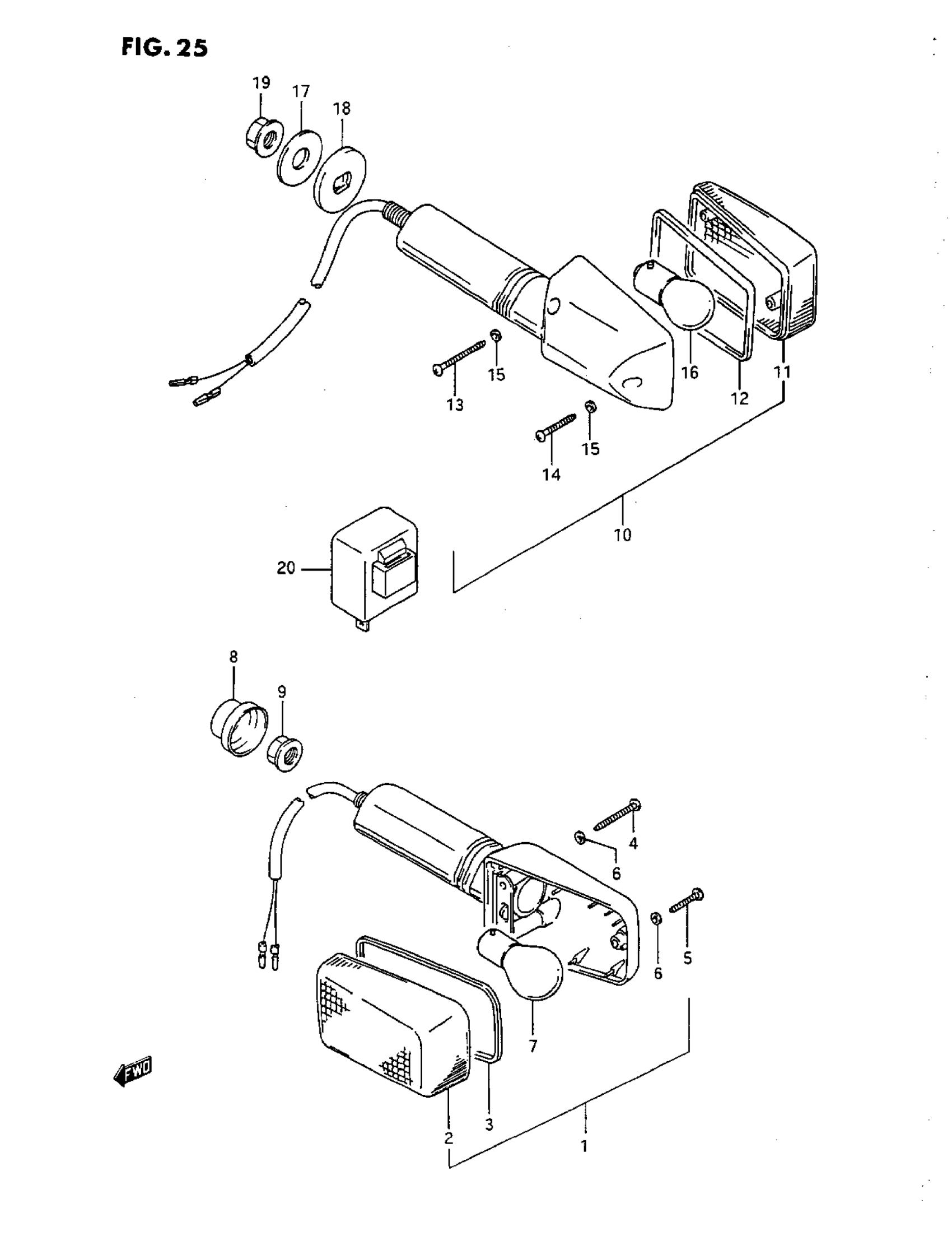

Suzuki GS500E (1993) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL

35601-01D10

Unavailable

2

LENS

35612-17C20

$9.79

3

GASKET

35613-27A00

$4.26

4

TAPPING SCREW

35623-27A00

$1.87

5

TAPPING SCREW

35725-40511

$1.78

6

GASKET

35627-27A02

$1.78

7

BULB (12V, 21W)

09471-12045

$2.95

8

CAP, TURNSIGNAL LAMP

35698-01D00

Unavailable

9

NUT | MODEL K/L/M/N/P This part replaces 08316-26105.

08316-2010B

$4.38

9

NUT | MODEL R This part replaces 08316-20103.

08316-2010B

$4.38

10

LAMP ASSY, REAR TURNSIGNAL

35601-17C41

Unavailable

11

LENS

35612-17C20

$9.79

12

GASKET

35613-27A00

$4.26

13

TAPPING SCREW

35623-27A00

$1.87

14

TAPPING SCREW

35725-40511

$1.78

15

GASKET

35627-27A02

$1.78

16

BULB (12V, 21W)

09471-12045

$2.95

17

WASHER | MODEL K

09160-10094

$4.03

17

WASHER, UPPER, OUTER | MODEL L/M/N/P/R This part replaces 09160-10006.

09160-10501

$2.33

18

SPACER

35695-17C00

$3.69

19

NUT | MODEL K/L/M/N This part replaces 08316-26105.

08316-2010B

$4.38

19

NUT | MODEL P/R This part replaces 08310-12108.

08310-00107

$2.19

20

RELAY ASSY, TURNSIGNAL | MODEL K/L/M/N This part replaces 38610-31310.

38610-31X50

$90.45

20

RELAY, TURN SIGNAL | MODEL P This part replaces 38610-45D00.

38610-45D01

$88.43

20

RELAY ASSY, TURNSIGNAL | MODEL R

38610-45D01

$88.43
