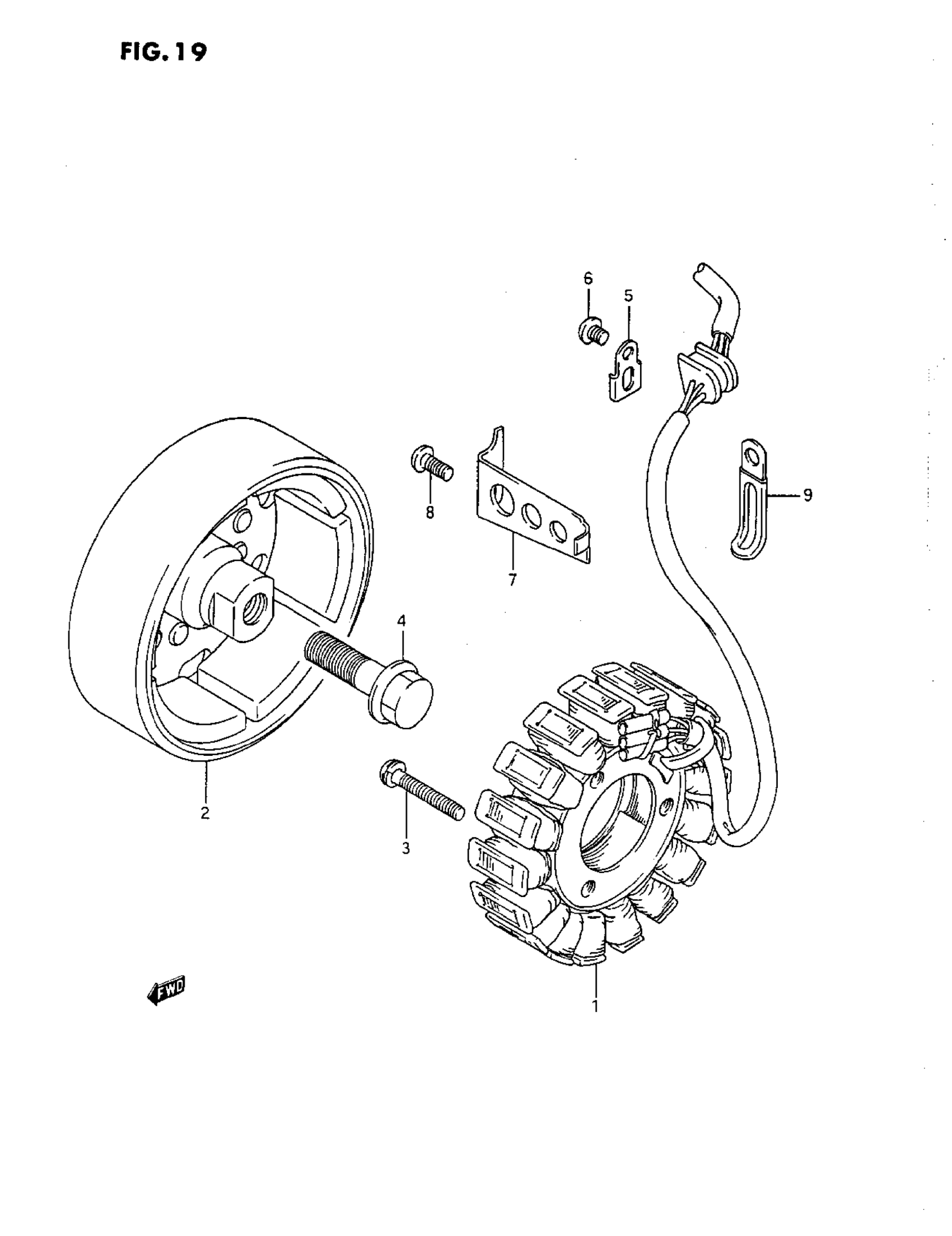

Suzuki GS500E (1993) GENERATOR Diagram

#

Description
Price

1

STATOR

31401-47030

Unavailable

2

ROTOR This part replaces 31402-47031.

31402-45030

Unavailable

3

SCREW

02112-35307

$3.17

4

BOLT (12X40)

09103-12004

$4.35

5

CLAMP

31497-45000

$2.17

6

SCREW

02112-05087

$1.45

7

CLAMP

31498-45000

$2.06

8

SCREW

02112-06107

$1.45

9

CLAMP This part replaces 09404-06402.

09404-06039

$1.73
