1993 Suzuki GS500E AIR Cleaner Diagram

← All diagrams

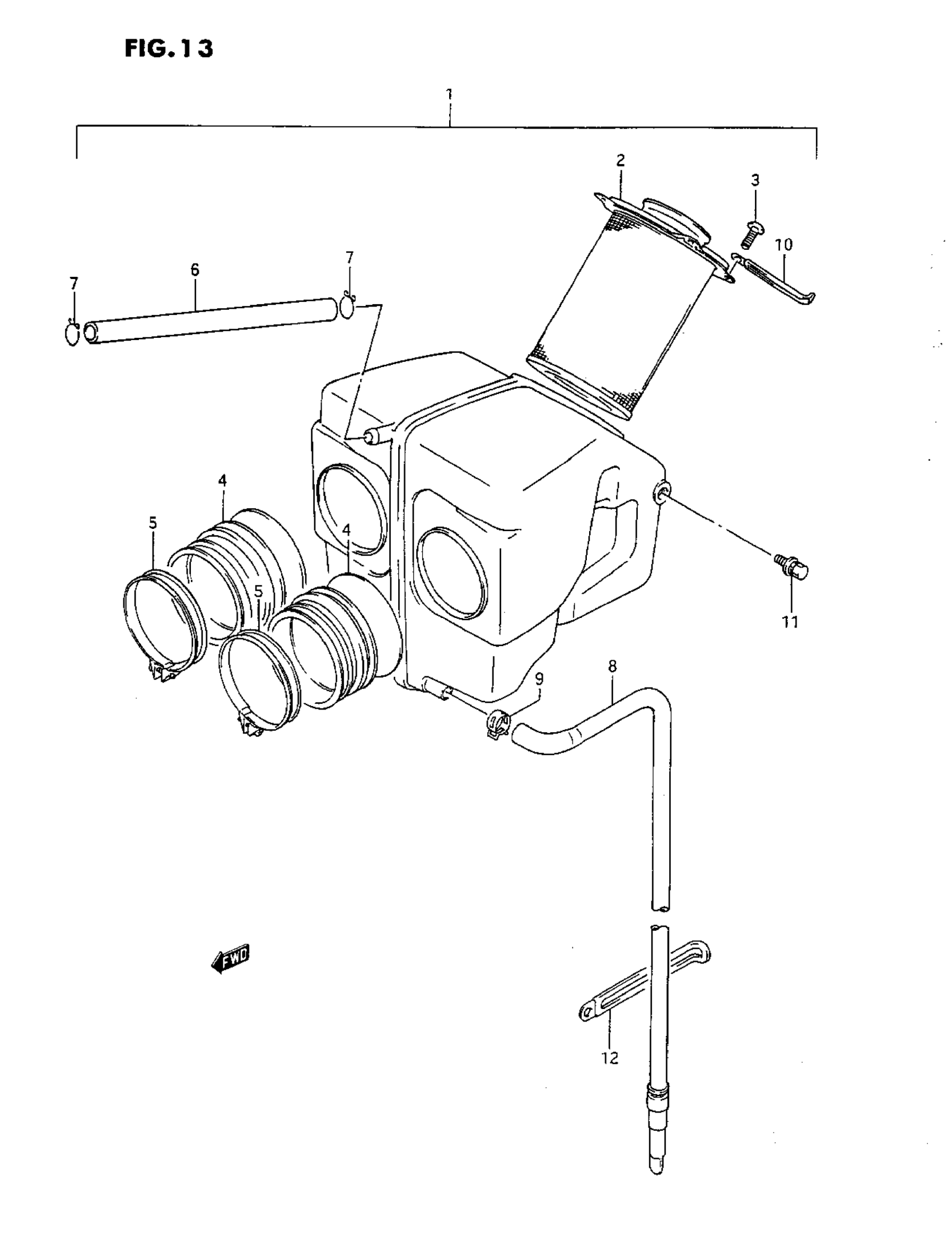

Find the part on the AIR Cleaner diagram for your 1993 Suzuki GS500E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GS500E AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 13700-01D00.

13700-01D02

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 13700-01D20.

13700-01D02

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL N/P/R This part replaces 13700-01D01.

13700-01D02

1
Out of stock

2

FILTER ASSY

13780-01D00

1
Out of stock

3

SCREW

02142-05087

4
Out of stock

4

TUBE,OUTLET This part replaces 13881-01D00.

13881-01D02

2
Out of stock

5

CLAMP

09402-68208

2
Out of stock

6

TUBE, BREATHER | MODEL K/L

13853-01D00

1
Out of stock

6

HOSE | MODEL M/N/P/R This part replaces 13853-01D01.

09352-11154-600

1
Out of stock

7

CLIP

09401-14301

2
Out of stock

8

TUBE,DRAIN | MODEL K/L/M/N This part replaces 13870-21411.

13870-21459

1
Out of stock

8

TUBE,DRAIN | MODEL P/R This part replaces 13870-21428.

13870-21459

1
Out of stock

9

CLAMP | MODEL K/L This part replaces 13827-38B00.

09401-13417

1
Out of stock

9

CLIP | MODEL M/N/P/R This part replaces 13824-00A00.

09401-13409

1
Out of stock

10

CLAMP This part replaces 09404-06403.

09404-06039

2
Out of stock

11

BOLT (6X16) | MODEL K/L

09118-06088

2
Out of stock

11

SCREW | MODEL M/N/P This part replaces 02112-76165.

02112-7616A

2
Out of stock

11

SCREW This part replaces 02112-76163.

02112-7616A

2
Out of stock

12

CLAMP(L:80) | MODEL R This part replaces 09404-06426.

09404-06036

2
Out of stock
