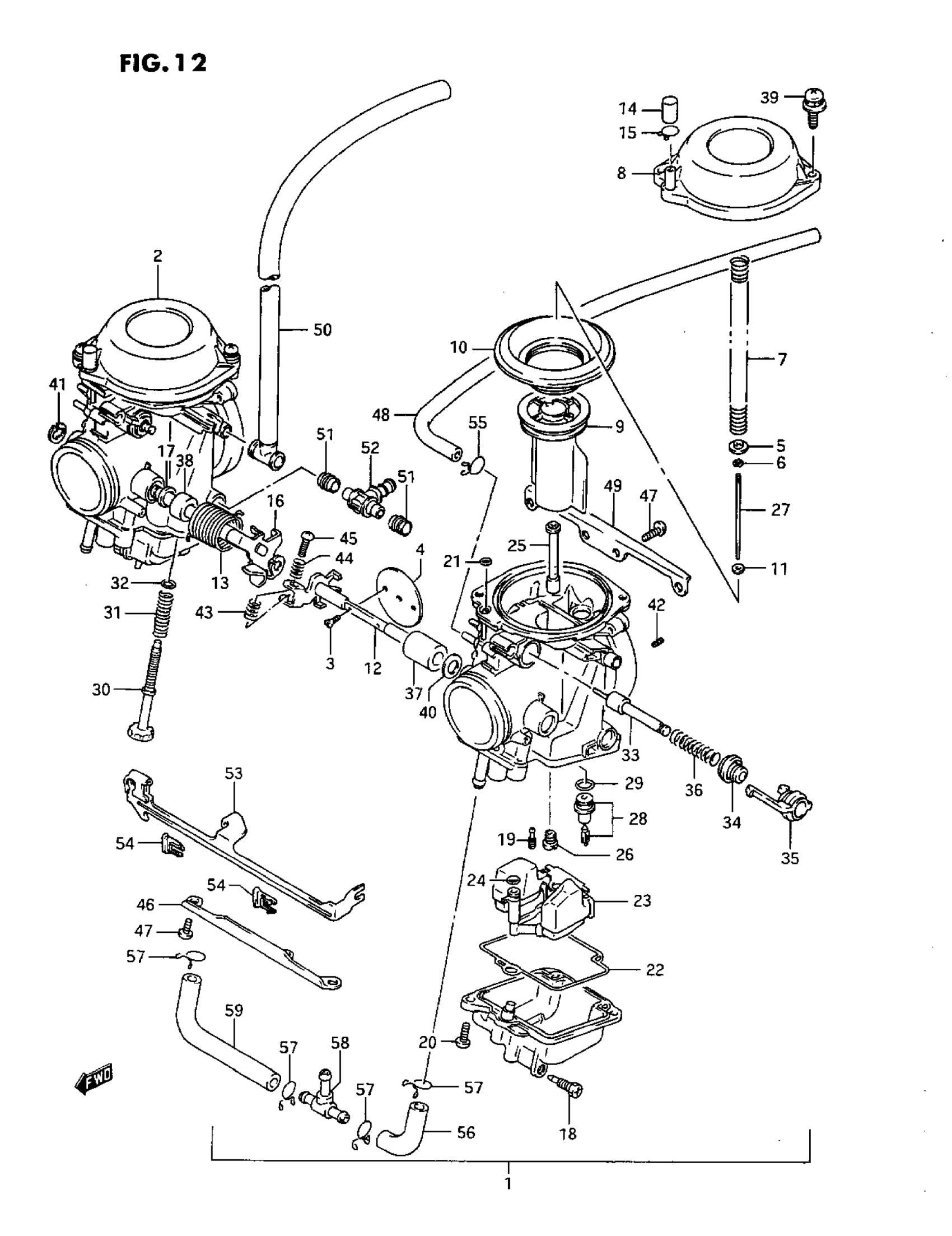

Suzuki GS500E (1993) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH This part replaces 13201-01D00.

13201-01D02

Unavailable

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY This part replaces 13201-01D10.

13201-01D11

Unavailable

2

CARBURETOR ASSY, RH This part replaces 13202-01D00.

13202-01D02

Unavailable

2

CARBURETOR ASSY, RH | CALIFORNIA ONLY This part replaces 13202-01D10.

13202-01D11

Unavailable

3

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.80

4

VALVE, THROTTLE (120)

13551-01D00

Unavailable

5

RING

13382-42A00

$4.09

6

E RING | MODEL K/L/M

13394-10010

$6.15

6

.E-RING | MODEL N/P/R

13394-40D20

$6.15

7

SPRING

13417-42A00

$6.39

8

COVER, DIAPHRAGM

13502-01D00

$32.26

9

VALVE, PISTON

13501-01D00

Unavailable

10

.DIAPHRAGM This part replaces 13507-17C00.

13507-17C02

$27.09

11

RING

13387-47010

$6.80

12

SHAFT ASSY | LH

13550-01D00

Unavailable

13

SPRING | RH

13573-44B00

Unavailable

14

CAP

13508-17C00

$4.47

15

CLIP This part replaces 13671-33600.

13671-05A40

$3.50

16

SHAFT ASSY | RH

13550-01D10

Unavailable

17

SEAL | LH:1, RH:2

13556-44B00

$5.00

18

SCREW, DRAIN | MODEL K/L/M/N

13247-28A00

$6.89

18

SCREW, DRAIN | MODEL P/R This part replaces 13247-13A00.

13247-02340

$4.56

19

JET, PILOT (37.5)

09492-35010

$8.54

20

SCREW This part replaces 02112-05126.

02112-0512A

$1.45

21

O-RING

13509-17C00

$4.09

22

GASKET, FLOAT CHAMBER

13258-44B00

$8.95

23

FLOAT ASSY

13240-01D00

Unavailable

24

.O RING

13374-46710

$4.09

25

JET, NEEDLE (O-3M) This part replaces 09494-00640.

09494-00871

Unavailable

26

JET, MAIN (122.5)

09491-24013

$12.38

27

NEEDLE, JET (5DH8-1)

13383-01D00

Unavailable

28

VALVE ASSY,NEED This part replaces 13370-44B00.

13370-02D01

$62.77

29

O RING This part replaces 13374-44080.

13374-35C00

$5.48

30

ADJUSTER | RH This part replaces 13267-28A00.

13267-14D10

Unavailable

31

SPRING | RH This part replaces 13268-43410.

13375-14D10

$5.64

32

WASHER | RH

13427-38300

$2.17

33

PLUNGER ASSY

13411-01D00

Unavailable

34

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$3.95

35

HOLDER, GUIDE

13418-17C10

$15.68

36

SPRING

13417-09110

$7.12

37

RING | LH

13574-01D00

Unavailable

38

RING | RH

13574-28A00

Unavailable

39

SCREW This part replaces 13602-34390.

02112-7516A

$2.42

40

WASHER

13557-47070

$3.38

41

E RING | RH

13617-44080

$2.80

42

JET, AIR (1.3)

09493-26004

$18.50

42

JET, AIR (1.35) | CALIFORNIA ONLY

09493-27002

$18.33

43

SPRING This part replaces 13268-96110.

13268-96111

$3.79

44

SPRING

13271-44B00

$3.66

45

SCREW

13267-44B00

$4.62

46

PLATE

13628-01D00

Unavailable

47

SCREW This part replaces 02112-05126.

02112-0512A

$1.45

48

HOSE (5X9X350)

13684-01D10

Unavailable

49

PLATE

13628-01D10

Unavailable

50

HOSE | L:425-400 This part replaces 13684-44B00.

13683-17C31

$15.68

51

SEAL

13673-44B00

$4.21

52

NIPPLE

13685-44B00

$10.71

53

LEVER

13413-01D00

Unavailable

54

HOLDER

13439-17C00

$9.99

55

CLIP This part replaces 13671-05A30.

09401-08410

$1.88

56

HOSE | CALIFORNIA ONLY This part replaces 13684-48B00.

13684-48B11

$14.61

57

CLIP | CALIFORNIA ONLY This part replaces 13671-48B10.

09401-10401

$1.45

58

.NIPPLE | CALIFORNIA ONLY

13685-48B00

$11.44

59

HOSE | CALIFORNIA ONLY This part replaces 13684-01D20.

13684-48B11

$14.61
