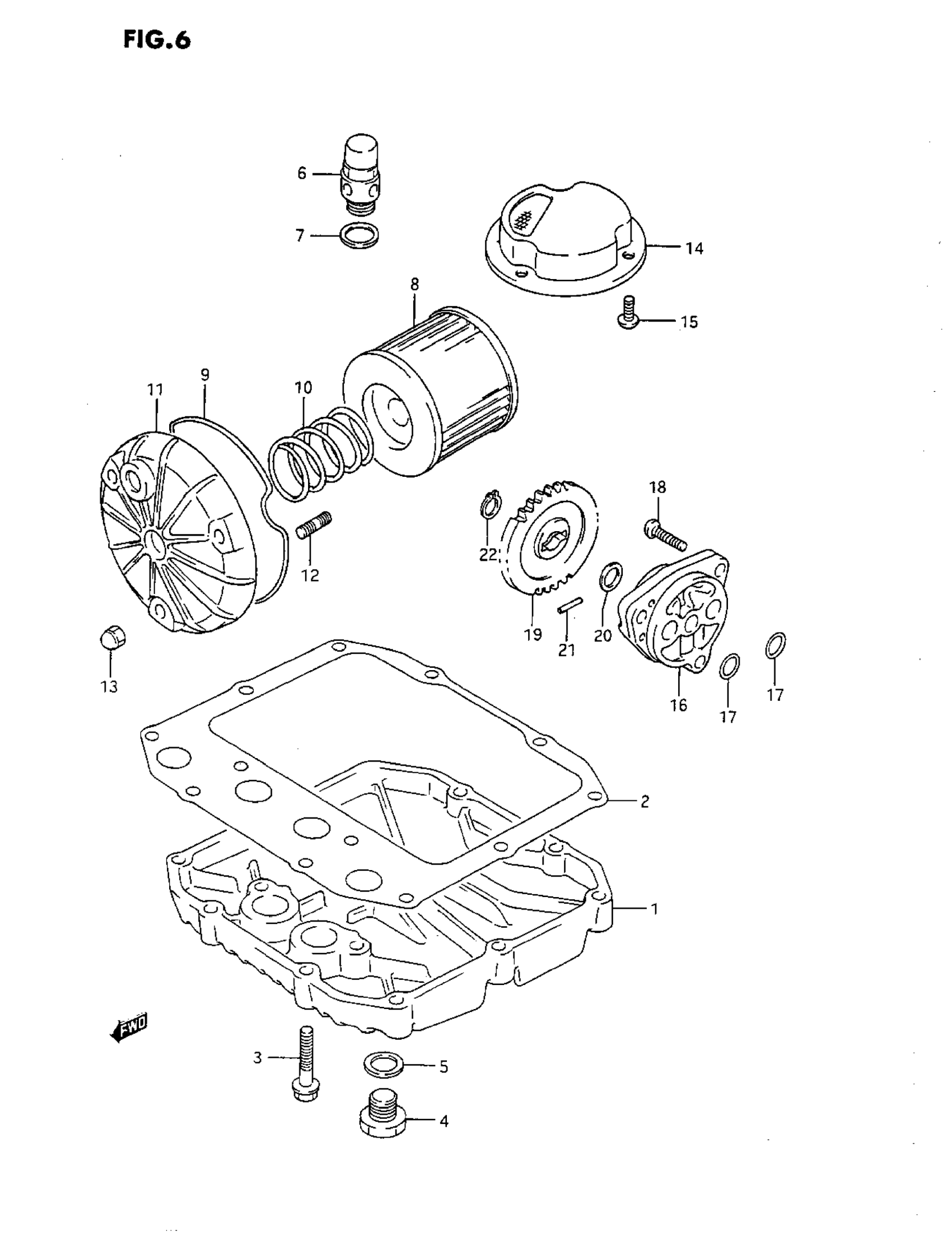

Suzuki GS500E (1993) OIL FILTER-OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11511-44100

$114.75

2

GASKET, OIL PAN | MODEL K/L/M/N This part replaces 11489-44102.

11489-44110

$10.11

2

GASKET: OIL PAN | MODEL P/R

11489-44110

$10.11

3

BOLT | MODEL K/L/M/N/P This part replaces 01517-06307.

01550-06307

$2.80

3

BOLT | MODEL R This part replaces 01550-06303.

01550-0630A

$2.38

4

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.86

5

GASKET

09168-14004

$1.69

6

VALVE ASSY, OIL RELIEF | MODEL K This part replaces 16440-33300.

16440-11D00

$66.67

6

VALVE ASSY, OIL RELIEF | MODEL L/M/N/P/R This part replaces 16440-05C01.

16440-11D00

$66.67

7

WASHER | MODEL K

08212-14181

Unavailable

8

FILTER, ENGINE OIL

16510-45040

$5.46

9

O-RING

16518-45000

$5.46

10

SPRING

09440-32004

$3.22

11

CAP, ENGINE OIL FILTER | MODEL K/L This part replaces 16512-44410.

16512-45D00

$64.25

11

CAP, ENGINE OIL FILTER | MODEL M/N/P This part replaces 16512-44400.

16512-45D00

$64.25

11

CAP, ENGINE OIL FILTER | MODEL R This part replaces 16512-15510.

16512-45D00

$64.25

12

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.97

13

NUT | MODEL K/L This part replaces 08313-21064.

08313-2006A

$2.01

13

NUT | MODEL M/N/P This part replaces 08313-21067.

08313-20067

$2.53

13

NUT | MODEL R This part replaces 08313-20063.

08313-2006A

$2.01

14

STRAINER, ENGINE OIL

16520-01D01

Unavailable

15

SCREW This part replaces 02112-06123.

02112-0612A

$1.46

16

PUMP ASSY, ENGINE OIL

16400-44100

$220.83

17

O-RING

09280-13004

$2.25

18

SCREW This part replaces 02112-06253.

02112-0625A

$1.85

19

GEAR, DRIVEN (NT:27) | MODEL K/L This part replaces 16331-01D00.

16331-01D10

$77.05

19

GEAR, DRIVEN (NT:27) | MODEL M/N/P/R

16331-01D10

$77.05

20

WASHER

08221-10185

$2.35

21

PIN

09261-04009

$1.56

22

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.82
