2002 Suzuki GS500 Turnsignal Lamp Diagram

← All diagrams

Find the part on the Turnsignal Lamp diagram for your 2002 Suzuki GS500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

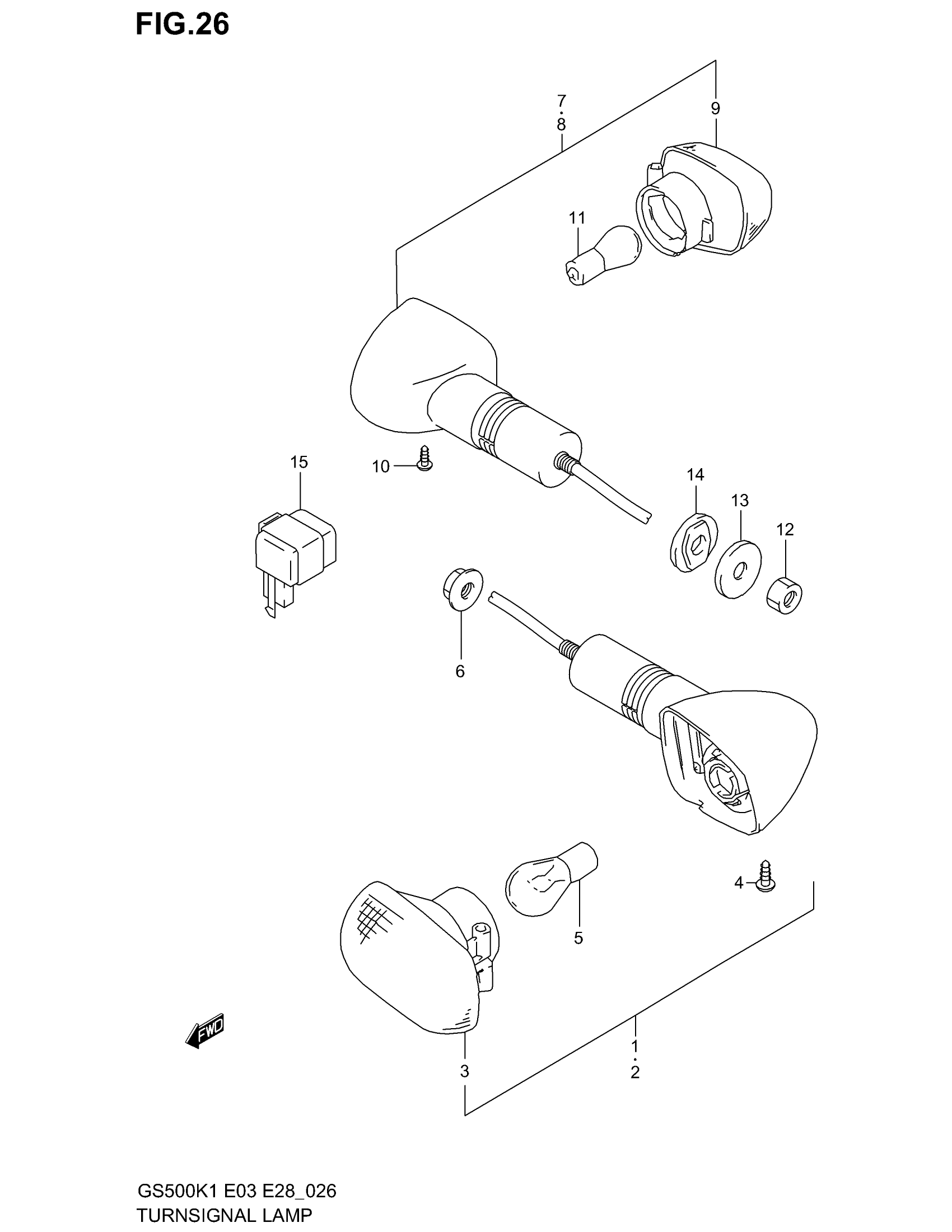

2002 Suzuki GS500 Turnsignal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FRONT TURNSIGNAL RH This part replaces 35601-03FC0.

35601-20F30

1
Out of stock

2

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 3 - 5 This part replaces 35602-03FC0.

35602-20F30

1
Out of stock

3

LAMP UNIT

35610-33E00

2
Out of stock

4

SCREW This part replaces 03242-04123.

03242-0412B

2
Out of stock

5

BULB (12V,21W)

09471-12045

2
Out of stock

6

NUT This part replaces 08316-10103.

08316-1010B

2
Out of stock

7

LAMP ASSY, REAR RH

35603-33E30

1
Out of stock

8

LAMP ASSY, REAR LH | Includes Item(s) 9 - 11

35604-33E30

1
Out of stock

9

LAMP UNIT

35610-33E00

2
Out of stock

10

SCREW This part replaces 03242-04123.

03242-0412B

2
Out of stock

11

BULB 812V,21W)

09471-12045

2
Out of stock

12

2

$2.02

In stock

13

WASHER

09160-10501

2
Out of stock

14

SPACER

35695-17C00

2

$4.02

In stock

15

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

1
Out of stock
