Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 11

35100-10D70-999

Unavailable

2

RIM

35111-01D20

$81.93

3

LAMP UNIT

35121-10D30

Unavailable

4

RING

35127-10D20

$29.07

5

COVER, SOCKET

35173-20A01

$20.33

6

SCREW

35181-15611

$3.80

7

LOCK WASHER This part replaces 08321-01057.

08321-0105A

$1.83

8

NUT This part replaces 08310-00043.

08310-0004A

$2.50

9

SCREW, ADJUSTING

35151-45900

$3.44

10

NUT

35152-15611

$3.67

11

SPRING

35154-31900

$6.00

12

BULB (12V60/55W)

09471-12060

$22.69

13

SCREW

09126-05003

$2.07

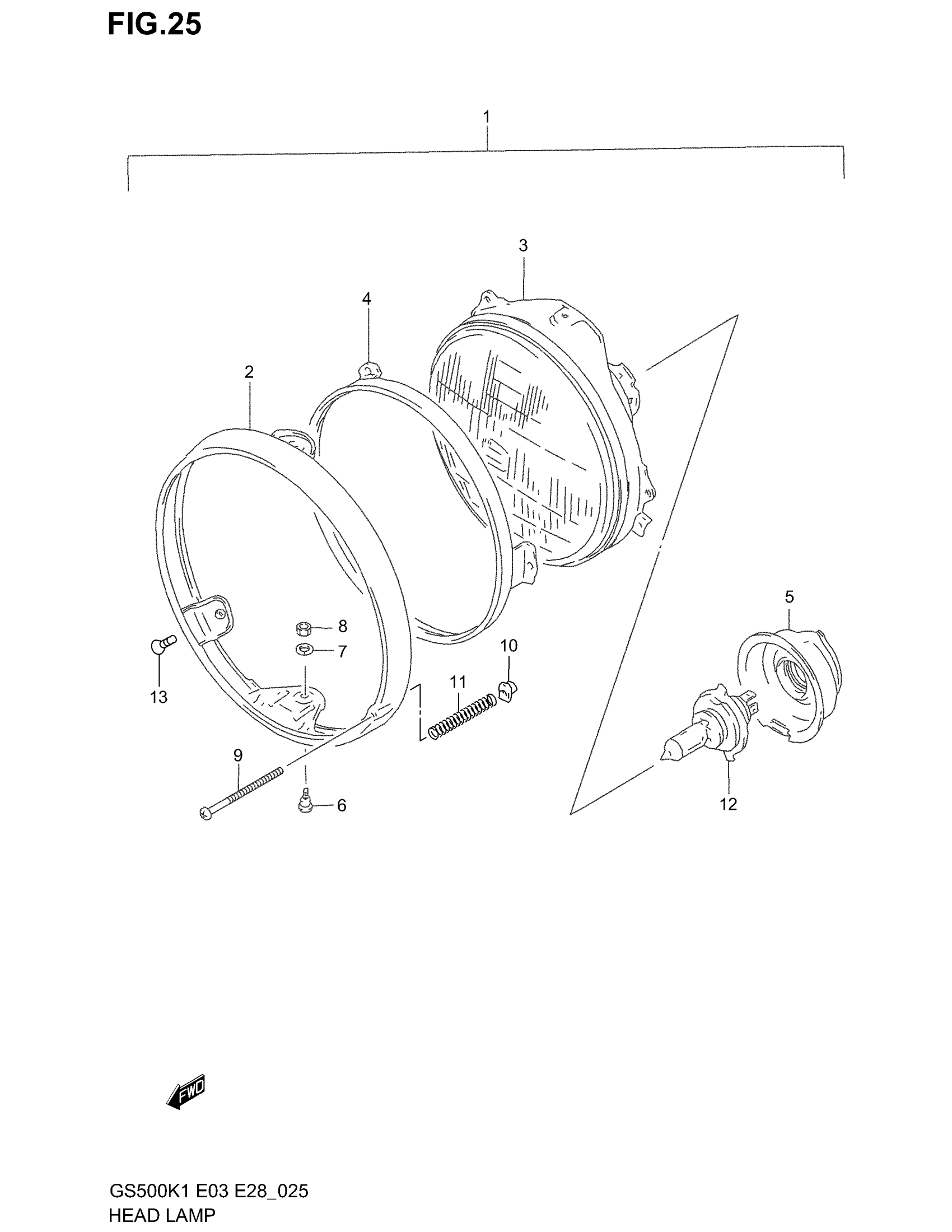

Suzuki GS500 (2002) HEADLAMP Diagram

HEADLAMP ASSY | Includes Item(s) 2 - 11

RIM

LAMP UNIT

RING

COVER, SOCKET

SCREW

LOCK WASHER This part replaces 08321-01057.

NUT This part replaces 08310-00043.

SCREW, ADJUSTING

NUT

SPRING

BULB (12V60/55W)

SCREW
