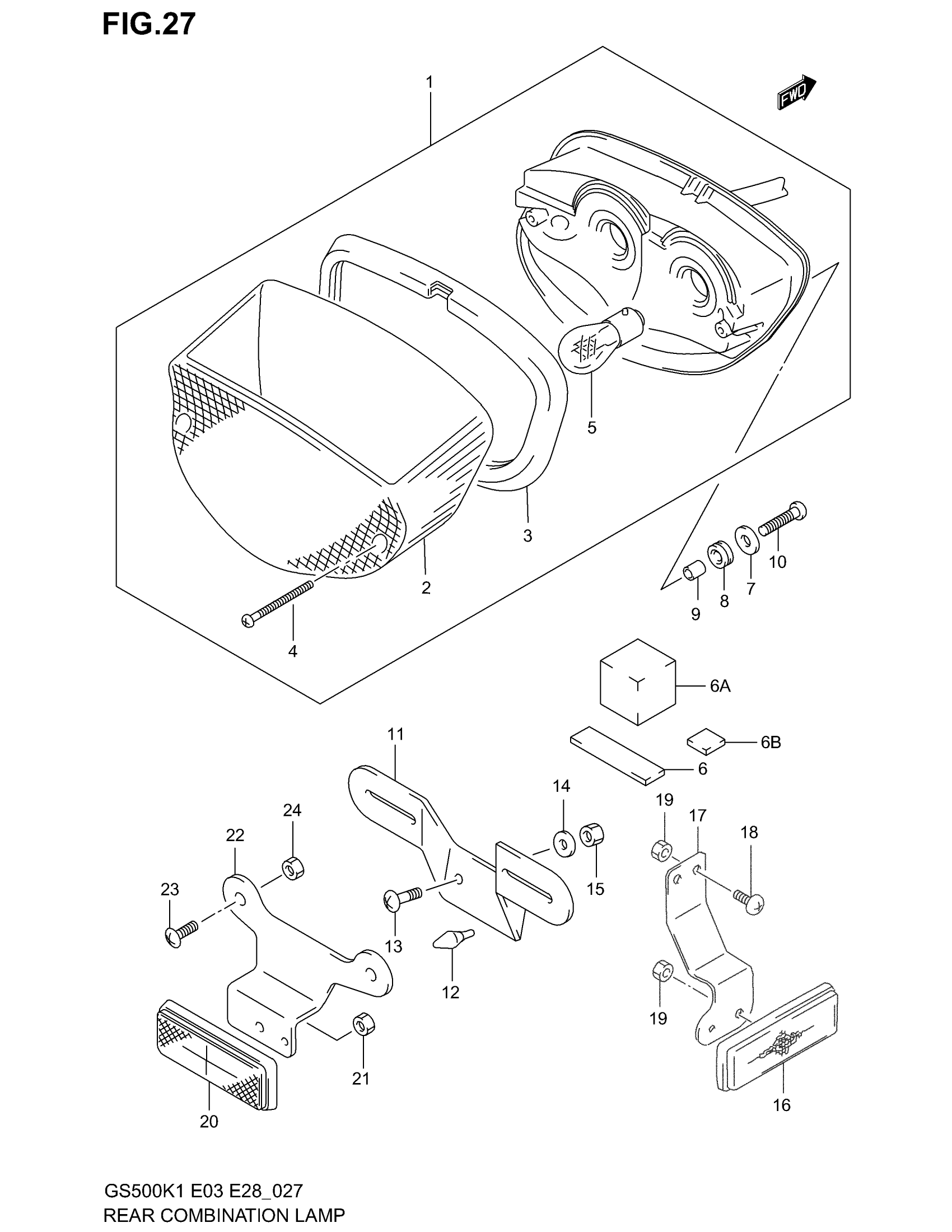

Suzuki GS500 (2002) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 5

35710-01D30

Unavailable

2

LENS

35712-01D20

Unavailable

3

GASKET, LENS

35713-01D20

Unavailable

4

SCREW

03511-04403

Unavailable

5

BULB (12V,32/3CP)

09471-12204

$13.28

6

CUSHION (80X20X10)

33652-01D10

$5.83

6A

CUSHION, UPPER (40X40X38)

33652-01D20

$6.40

6B

CUSHION, LOWER (40X120X6) | CUT AS REQUIRED PROFILE (20X20)

33652-06C00

$4.70

7

WASHER (6.5X20X1.2)

09160-06077

$1.89

8

CUSHION

09320-09009

$4.19

9

SPACER (6.5X9X8.5)

09180-06262

$2.64

10

SCREW This part replaces 02112-06203.

02112-0620A

$1.45

11

BRACKET, LICENSE PLATE

35927-01D30

Unavailable

12

CUSHION

09321-06026

$2.15

13

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

14

WASHER (6.5X20X1.2)

09160-06077

$1.89

15

NUT This part replaces 08310-00063.

08310-0006A

$1.83

16

REFLEX REFLECTOR, REAR SIDE

35970-24D60

$29.32

17

BRACKET, REAR SIDE RR

35977-01D11

Unavailable

18

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

19

NUT This part replaces 08310-00053.

08310-0005A

$1.83

20

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$19.11

21

NUT This part replaces 08310-00053.

08310-0005A

$1.83

22

BRACKET, REAR REFLEX REFLECTO

35974-01D00

Unavailable

23

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

24

NUT This part replaces 08310-00063.

08310-0006A

$1.83
