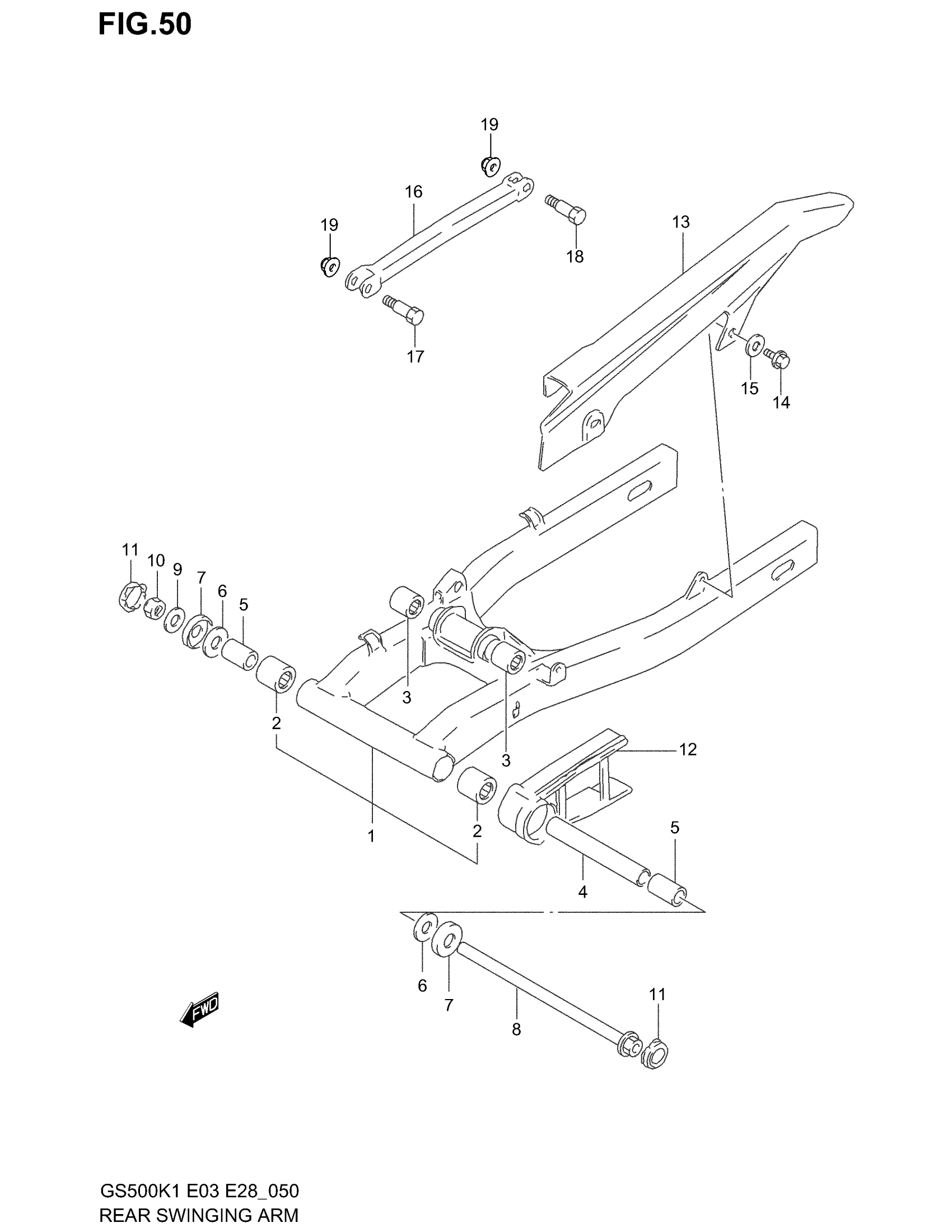

Find the part on the Rear Swinging ARM diagram for your 2002 Suzuki GS500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki GS500 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR (SILVER) | Includes Item(s) 2 - 3

61000-01D10-13L

1
Out of stock

2

BEARING, PIVOT (22X29X30)

09263-22017

2
Out of stock

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

2
Out of stock

4

SPACER, CENTER

61282-01D00

1
Out of stock

5

SPACER, PIVOT BEARING

61251-45001

2
Out of stock

6

WASHER

09160-14020

2
Out of stock

7

DUST SEAL, PIVOT SHAFT

61262-45002

2
Out of stock

8

SHAFT, SWINGING ARM PIVOT

61211-30B00

1
Out of stock

9

WASHER

09160-14009

1
Out of stock

10

NUT

09159-14019

1
Out of stock

11

CAP, SWINGING ARM PIVOT

61222-48B00

2
Out of stock

12

BUFFER,CHAIN TO This part replaces 61273-01D00.

61273-01D01

1
Out of stock

13

CASE, CHAIN This part replaces 61310-01D00.

61310C01D00J000

1
Out of stock

14

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

15

WASHER

09169-06026

2
Out of stock

16

TORQUE LINK, REAR (BLACK)

64310-01D02

1
Out of stock

17

BOLT, FRONT (10X41)

09111-10052

1
Out of stock

18

BOLT, REAR (10X34)

09100-10187

1
Out of stock

19

NUT This part replaces 08319-31103.

08319-3110A

2
Out of stock
