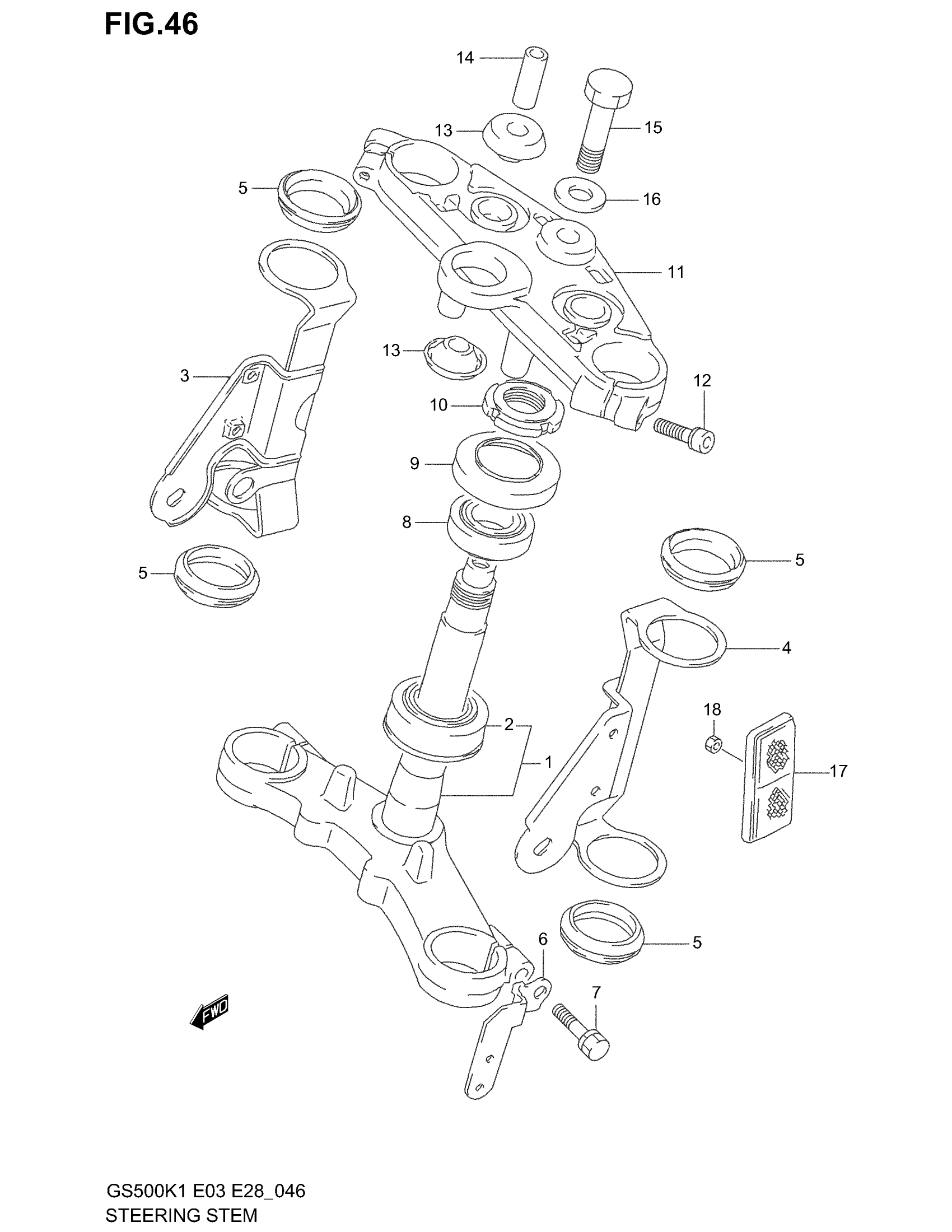

Suzuki GS500 (2002) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-01D91

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$52.22

3

BRACKET, HEADLAMP RH

51530-01D01

Unavailable

4

BRACKET, HEADLAMP LH This part replaces 51540-01D01.

51540-0BE00-ENM

Unavailable

5

CUSHION, BRACKET

51553-34300

$4.26

6

BRACKET, REFLECTOR RH

35956-01D10

Unavailable

6

BRACKET, REFLECTOR LH

35957-01D10

Unavailable

7

BOLT, STEERING STEM

51352-01D00

Unavailable

8

BEARING (25X47X15)

09265-25019

$61.43

9

DUST SEAL

51643-49002

$13.92

10

NUT

51631-28000

$19.60

11

HEAD, STEERING STEM

51311-01D00

Unavailable

12

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$2.80

13

CUSHION,UPR BRKT This part replaces 56240-01D00.

56240-01D01

$37.40

14

SPACER, STEM HEAD

56243-01D00

$10.62

15

BOLT, UPPER

51353-05C00

Unavailable

16

WASHER

51356-22012

$7.67

17

REFLEX REFLECTOR ASSY

35950-43431

$20.13

18

NUT This part replaces 08316-20053.

08316-2005A

$2.21
